Overview

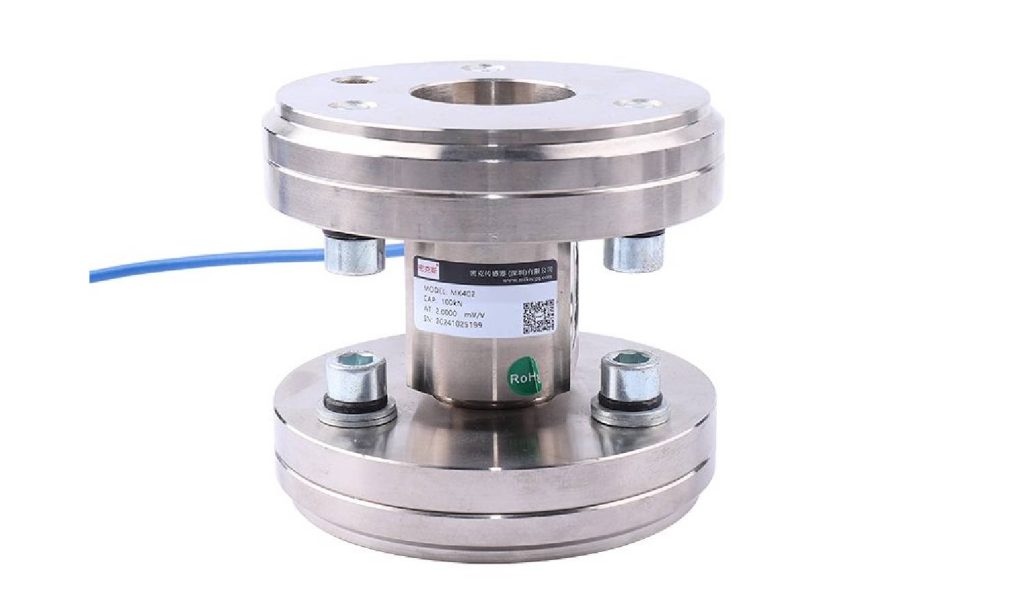

The MK402 is a flange-type load cell machined from quality alloy steel with an optimised force path and precision temperature compensation for high accuracy and low drift. Its rugged build resists overload and stays reliable in harsh environments, with straightforward installation and maintenance and long service life.
Key Features
- Flange design with precision temperature compensation
- High accuracy, low drift over long service
- Strong overload resistance for harsh sites
- Easy installation and maintenance
- High accuracy (≤0.02%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
Applications
Designed for tank and silo scales and dry-mortar silo weighing, where strong overload resistance suits continuous heavy-duty service.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 50kN(5t) 100kN(10t) 150kN(15t) 200kN(20t) | Comprehensive accuracy | ≤0.02%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0±0.02%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05%F.S |
| Temperature Effect on Output | <0.02%F.S/10°C | Hysteresis | ±0.05%F.S |
| Temperature Effect on Zero | <0.02%F.S/10°C | Repeatability | ±0.05%F.S |
| Input impedance | 380±10Ω | Creep (30min) | ±0.03%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±1%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 5-18V(DC) |
| Material | Alloy steel | Safe overload | 120%F.S |
| Protection class | IP66 | Safe overload | – |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

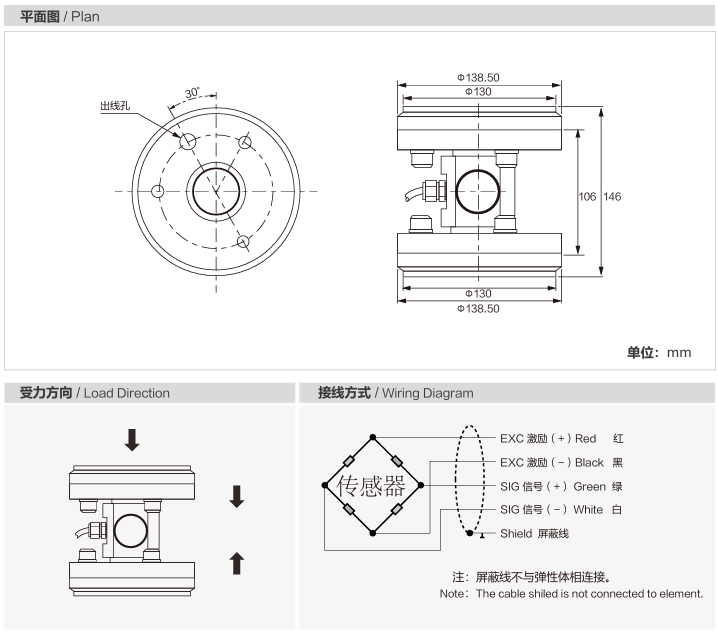

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK402?
Designed for tank and silo scales and dry-mortar silo weighing, where strong overload resistance suits continuous heavy-duty service.
Which indicator, transmitter or system works with the MK402?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
