Overview

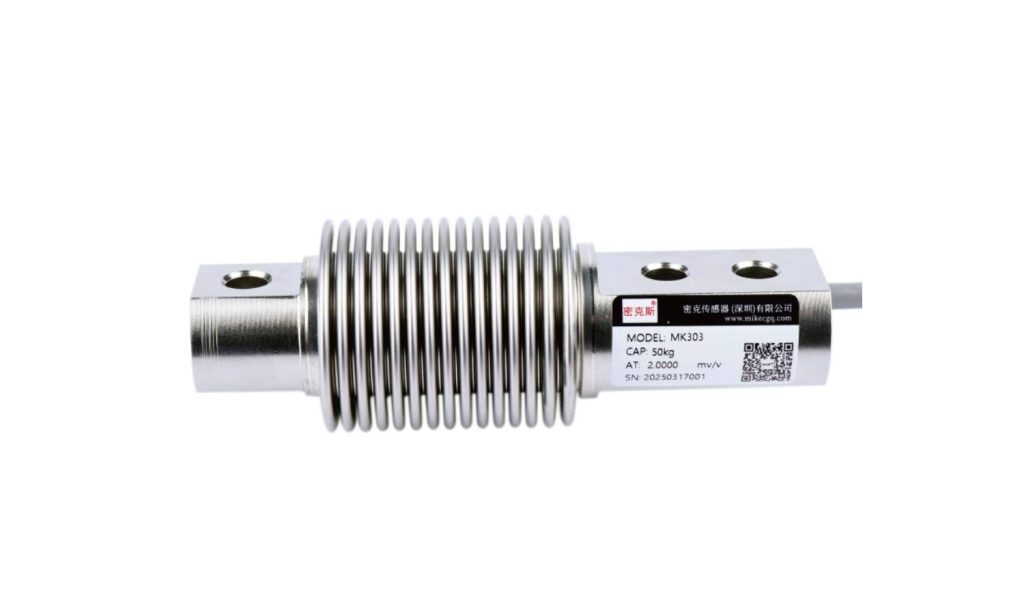

The MK303 is a bellows load cell using a welded stainless-steel bellows seal to protect the sensing element in plant service. It accepts both tension and compression loading and resists overload, fatigue and off-centre forces, so output stays repeatable through long cycles of duty.
Key Features
- Welded stainless-steel bellows seal
- Handles tension and compression alike
- Resists overload, fatigue and off-centre loads
- High accuracy (≤±0.02%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Sealed to IP67 for reliable operation in harsh environments
Applications
Platform scales, packaging scales, belt-conveyor scales and tank or hopper scales in industrial weighing.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 100N / 10kg, 200N / 20kg, 300N / 30kg, 500N / 50kg, 1kN / 100kg, 2kN / 200kg, 3kN / 300kg, 5kN / 500kg, 10kN / 1t | Comprehensive accuracy | ≤±0.02%F.S |
| Temperature compensated range | -20°C~60°C | Output sensitivity | 2.0±0.002%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.02%F.S |
| Temperature Effect on Output | <0.02%F.S/10°C | Hysteresis | ±0.02%F.S |
| Temperature Effect on Zero | <0.02%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 400±10Ω | Creep (30min) | ±0.02%F.S/30min |
| Output impedance | 350±2Ω | Zero balance | ≤±1%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | Alloy steel | Safe overload | 120%F.S |
| Protection class | IP67 | Safe overload | – |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

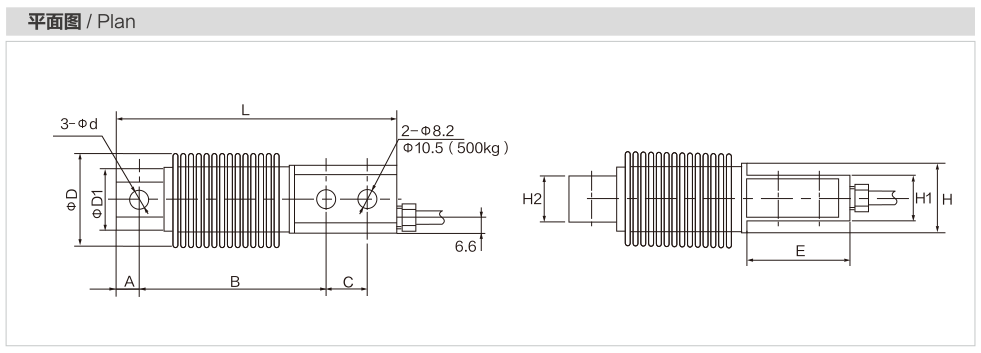

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (kg) | L | A | B | C | D | D1 | E | H | H1 | H2 | Φd |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK303 | 0.1~5 | 10~500 | 123 | 10 | 82 | 18 | 26 | Φ45 | 45 | 34 | 20 | 20 | Φ8.5 |
| 7~10 | 700~1000 | 210 | 133 | 40 | 36 | Φ13 |
Frequently Asked Questions
What are the typical applications of the MK303?
Platform scales, packaging scales, belt-conveyor scales and tank or hopper scales in industrial weighing.
Which indicator, transmitter or system works with the MK303?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
