Overview

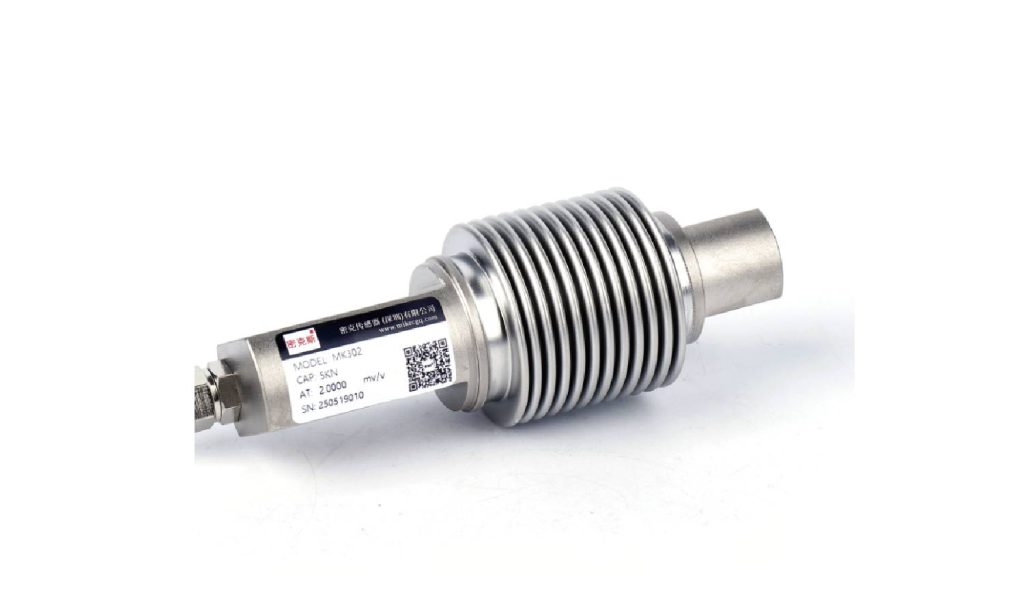

The MK302 bellows load cell uses a welded stainless-steel bellows seal to protect the sensing element while allowing measurement in both tension and compression. That construction gives firm resistance to overload, fatigue and off-centre loading, so the cell holds its calibration through repeated duty cycles.
Key Features
- Welded stainless-steel bellows seal
- Measures tension and compression
- Resists overload, fatigue and side loads
- High accuracy (≤±0.02%F.S) for precise measurement
- Stainless steel elastic element for durability and corrosion resistance
- Sealed to IP68 for reliable operation in harsh environments
Applications
Suitable for platform scales, packaging scales, belt-conveyor scales and tank or vessel weighing in general industrial service.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 100N / 10kg, 200N / 20kg, 500N / 50kg, 1kN / 100kg, 2kN / 200kg, 5kN / 500kg, 10kN / 1000kg | Comprehensive accuracy | ≤±0.02%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.02%F.S |
| Temperature Effect on Output | <0.02%F.S/10°C | Hysteresis | ±0.02%F.S |
| Temperature Effect on Zero | <0.02%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 400±50Ω | Creep (30min) | ±0.02%F.S/30min |
| Output impedance | 356±1Ω | Zero balance | ≤±0.1%F.S |
| Insulation resistance | ≥5000MΩ (50VDC) | Recommended excitation voltage | 10V(DC) |
| Material | Stainless steel | Safe overload | 120%F.S |
| Protection class | IP68 | Limit overload | – |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

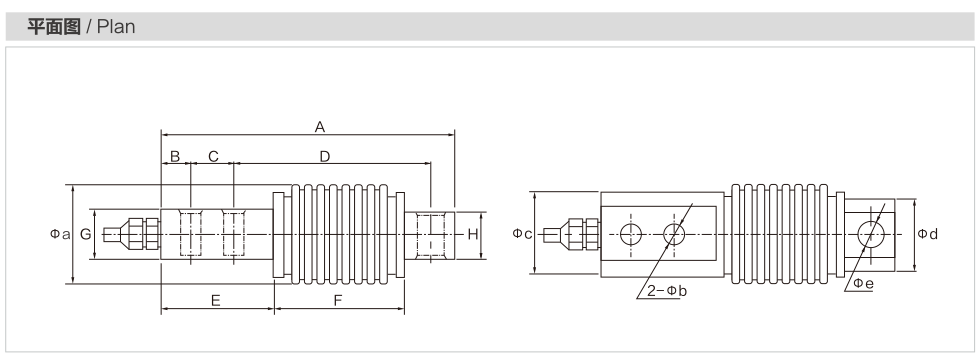

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (kg) | A | B | C | D | E | F | G | H | Φa | Φb | Φc | Φd | Φe |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK302 | 0.1~5 | 10~500 | 123 | 13 | 18 | 82 | 45 | 59 | 22 | 20 | Φ45 | Φ8.5 | Φ32 | Φ27 | Φ11 |
| 7~10 | 700~1000 | 210 | 15 | 40 | 133 | 93 | 64 | 34 | 25 | Φ60 | Φ13 | Φ50 | Φ35 | Φ14 |
Frequently Asked Questions
What are the typical applications of the MK302?
Suitable for platform scales, packaging scales, belt-conveyor scales and tank or vessel weighing in general industrial service.
Which indicator, transmitter or system works with the MK302?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
