Overview

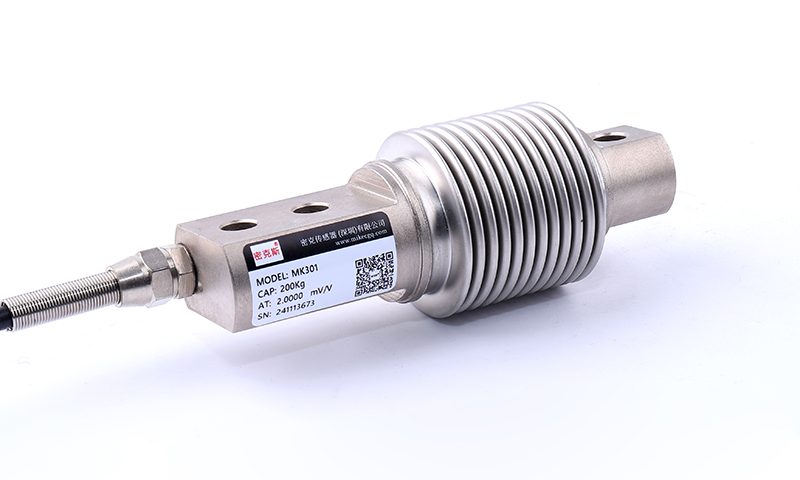

The MK301 is a bellows load cell with a welded, sealed stainless-steel bellows that resists dust and moisture. It measures both tension and compression and offers strong overload, fatigue and eccentric-load resistance.
Key Features
- High accuracy (≤±0.02%F.S) for precise measurement
- Stainless steel elastic element for durability and corrosion resistance
- Sealed to IP68 for reliable operation in harsh environments
- Standard output 2.0±0.25%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Suited to platform, packaging, belt-conveyor and tank scales.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 50N / 5kg, 100N / 10kg, 200N / 20kg, 300N / 30kg, 500N / 50kg, 1kN / 100kg, 2kN / 200kg, 3kN / 300kg, 5kN / 500kg | Comprehensive accuracy | ≤±0.02%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0±0.25%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.02%F.S |
| Temperature Effect on Output | <0.02%F.S/10°C | Hysteresis | ±0.02%F.S |
| Temperature Effect on Zero | <0.02%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 400±50Ω | Creep (30min) | ±0.02%F.S/30min |
| Output impedance | 356±1Ω | Zero balance | ≤±0.1%F.S |
| Insulation resistance | ≥5000MΩ (50VDC) | Recommended excitation voltage | 10V(DC) |
| Material | Stainless steel | Safe overload | 120%F.S |
| Protection class | IP68 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

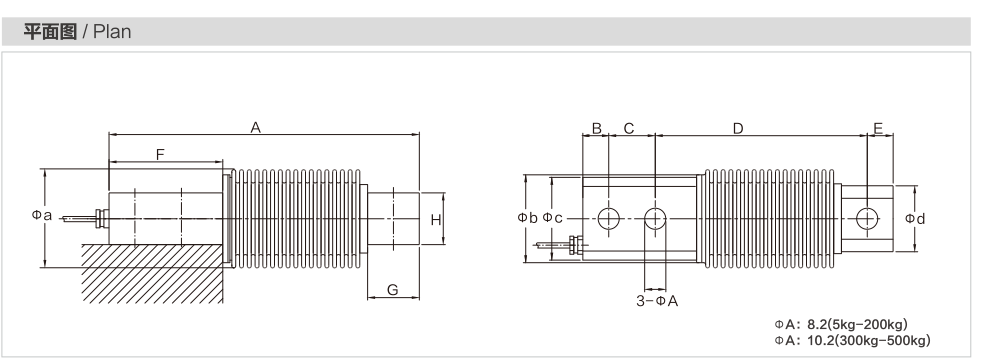

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (kg) | A | B | C | D | E | F | G | H | ΦA | Φa | Φb | Φc | Φd |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK301 | 0.5~2 | 5~200 | 120 | 10 | 18 | 82 | 10 | 44 | 20 | 20 | Φ8.2 | Φ45 | Φ34 | Φ32 | Φ25.5 |
| 3~5 | 300~500 | Φ10.2 |
Frequently Asked Questions
What are the typical applications of the MK301?
Suited to platform, packaging, belt-conveyor and tank scales.
Which indicator, transmitter or system works with the MK301?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
