Overview

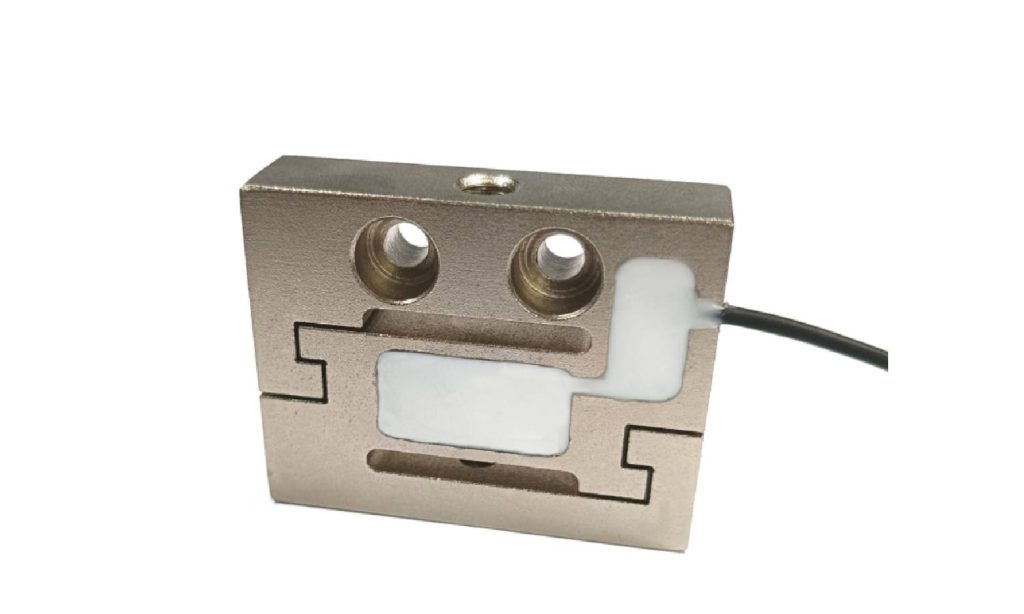

The MK215 is an S-type load cell built on a dual-beam S-shaped bending element with bonded strain gauges, giving stable strain and accurate output under load. It offers good linearity, repeatability and a wide measuring range in a compact body, with analog or digital output options for flexible integration.
Key Features
- Compact S-beam with good stability
- Wide range, strong linearity
- Analog or digital output options
- High accuracy (≤0.02%F.S) for precise measurement
- Alloy steel: 500N, 1kN, 2kN elastic element for durability and corrosion resistance
- Standard output 2.0±10%mV/V, compatible with common indicators
Applications
Used to build electromechanical scales, crane and hook scales, hopper scales, and various special-purpose and process weighing systems.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 500N, 1kN, 2kN | Comprehensive accuracy | ≤0.02%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 2.0±10%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity / Repeatability | ±0.01%F.S / ±0.01%F.S |
| Temperature Effect on Output | <0.02%F.S/10°C | Hysteresis | ±0.01%F.S |
| Temperature Effect on Zero | <0.02%F.S/10°C | Creep (30min) | ±0.02%F.S/30min |
| Input impedance | 380±20Ω / 385±15Ω | Zero balance | ≤±1.0%F.S |
| Output impedance | 351±3Ω / 350±3Ω | Recommended excitation voltage | 10V(DC) |
| Insulation resistance | ≥5000MΩ / 100VDC | Safe overload | 120%F.S |
| Material | Alloy steel: 500N, 1kN, 2kN | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

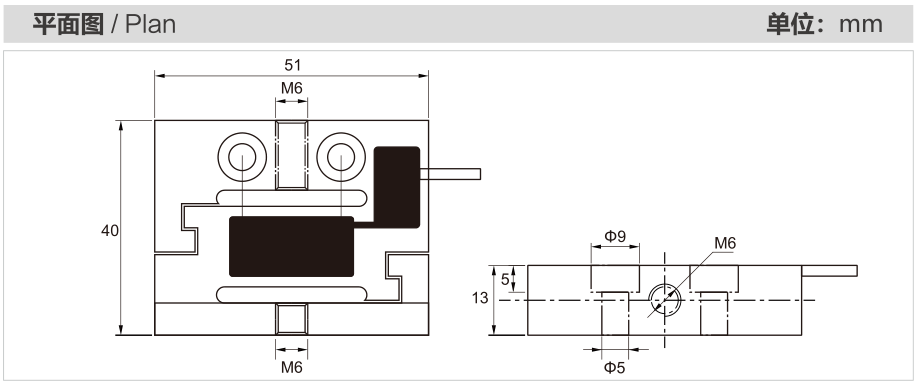

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK215?
Used to build electromechanical scales, crane and hook scales, hopper scales, and various special-purpose and process weighing systems.
Which indicator, transmitter or system works with the MK215?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
