Overview

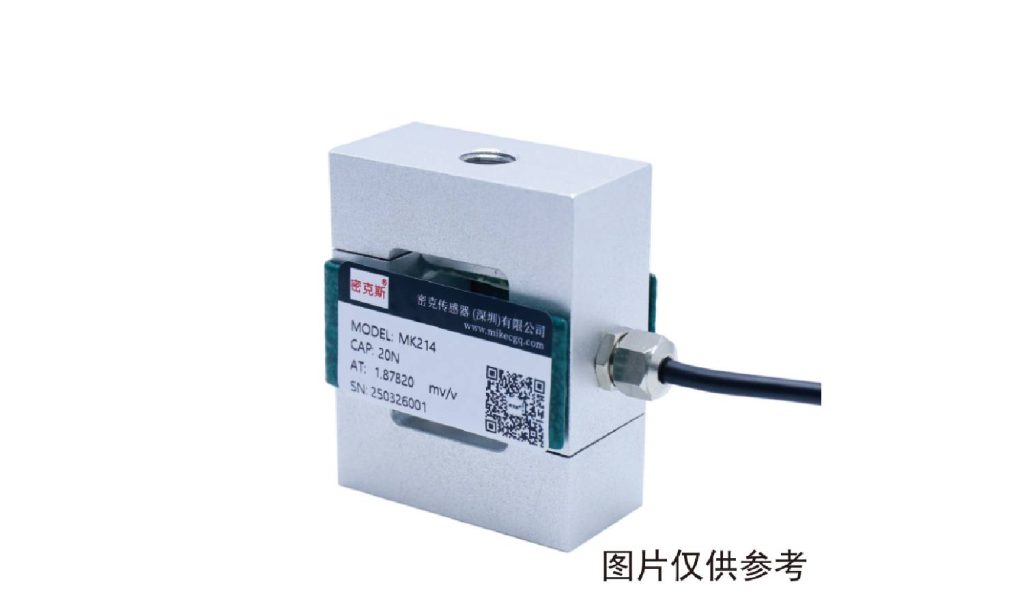

The MK214 is a compact S-type load cell formed from an S-shaped bending beam of two parallel elastic elements carrying bonded resistance strain gauges. This arrangement produces stable, low-drift strain under load for accurate readings across a wide range with strong linearity and repeatability, and it is offered in both analogue and digital output options.
Key Features
- S-beam with dual parallel elastic elements
- Wide range, strong linearity and repeatability
- Analogue and digital output options
- Compact, stable construction
- High accuracy (≤0.02%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
Applications
Used to build electromechanical combination scales, crane and hook scales, hopper scales, and various special-purpose and process scales.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 10N, 20N, 50N, 100N, 200N, 300N, 500N, 750N | Comprehensive accuracy | ≤0.02%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 2.0±10%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity / Repeatability | ±0.05%F.S / ±0.15%F.S |
| Temperature Effect on Output | <0.025%F.S/10°C | Hysteresis | ±0.15%F.S |
| Temperature Effect on Zero | <0.025%F.S/10°C | Creep (30min) | ±0.5%F.S/30min |
| Input impedance | 410±10Ω | Zero balance | ≤±2.0%F.S |
| Output impedance | 350±5Ω | Recommended excitation voltage | 5V(DC) |
| Insulation resistance | ≥5000MΩ / 100VDC | Safe overload | 120%F.S |
| Material | Aluminum alloy | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

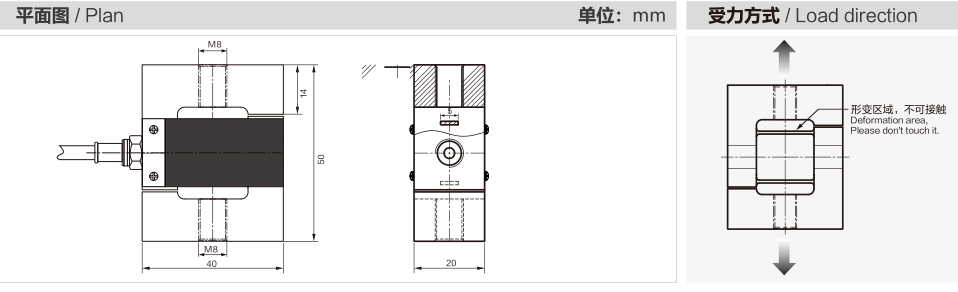

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK214?
Used to build electromechanical combination scales, crane and hook scales, hopper scales, and various special-purpose and process scales.
Which indicator, transmitter or system works with the MK214?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
