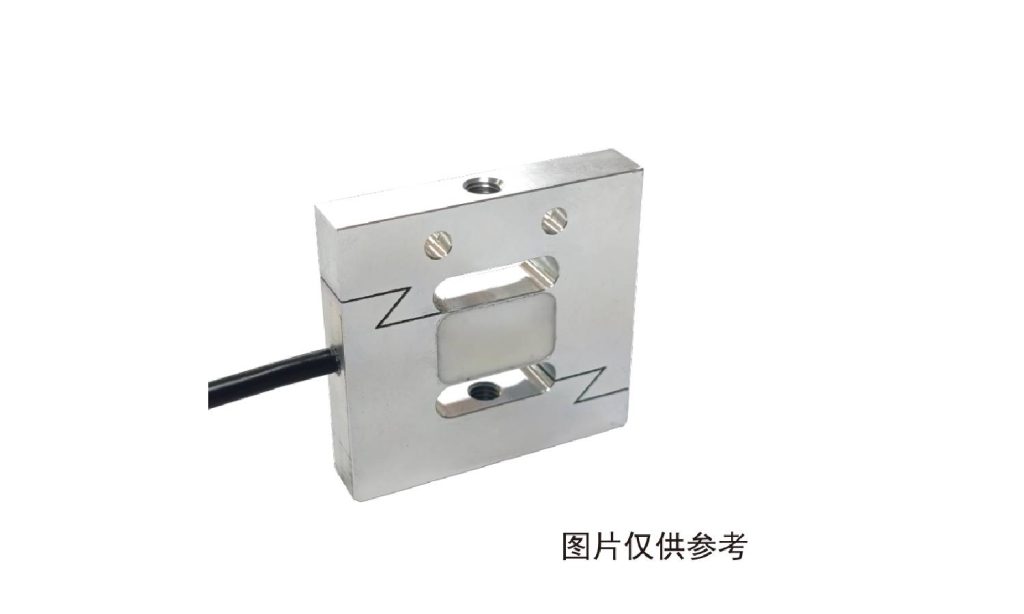

Overview
The MK213AL is an overload-resistant S-type load cell built on an S-shaped bending beam formed from two parallel elastic elements with bonded strain gauges, producing a stable, accurate signal under applied force. The compact structure combines a wide measurement range with good linearity and repeatability, and analog or digital output options can be selected to match the instrument system.
Key Features
- Overload-resistant design
- Wide range, good linearity
- Stable output, strong repeatability
- Analog or digital output options
- High accuracy (≤±0.02%F.S) for precise measurement
- Al-Alloy elastic element for durability and corrosion resistance
Applications
Used to build electromechanical scales, crane and hook scales, hopper scales and various dedicated or process weighing scales.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 20N, 30N, 50N, 100N, 200N, 300N, 500N | Comprehensive accuracy | ≤±0.02%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 2.0±0.2mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.02%F.S |
| Temperature Effect on Output | <0.02%F.S/10°C | Repeatability | ±0.02%F.S |
| Temperature Effect on Zero | <0.02%F.S/10°C | Hysteresis | ±0.02%F.S |
| Input impedance | 385±30Ω | Creep (30min) | ±0.02%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 5-12V(DC) |
| Material | Al-Alloy | Safe overload | 120%F.S |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

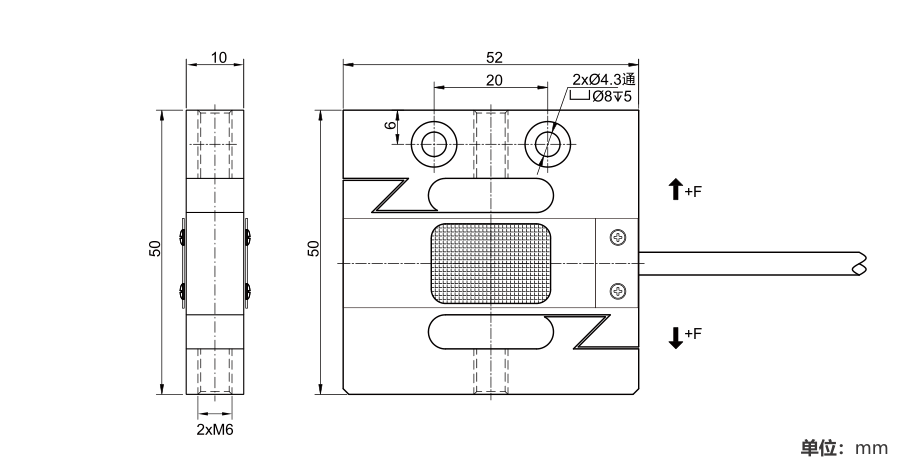

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK213AL?
Used to build electromechanical scales, crane and hook scales, hopper scales and various dedicated or process weighing scales.
Which indicator, transmitter or system works with the MK213AL?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
