Overview

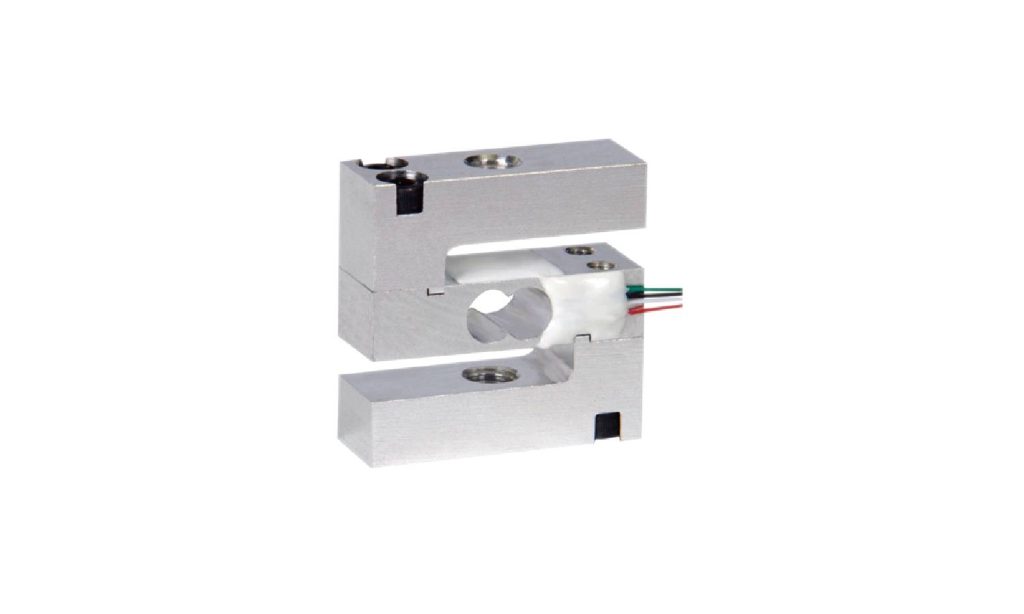

The MK212 is an S-type load cell whose S-shaped bending beam carries strain gauges on two parallel elastic elements, producing a stable, accurate signal under load. It offers good linearity, repeatability and a wide measurement range, with analog or digital output options for flexible integration.
Key Features
- High accuracy (0.03%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP65 for reliable operation in harsh environments
- Standard output 2.0±10%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Suited to electromechanical scales, hook scales, hopper scales and a range of special and process scales.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 20N, 50N, 100N, 200N, 300N, 500N, 1000N | Comprehensive accuracy | 0.03%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0±10%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temperature Effect on Output | <0.05%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temperature Effect on Zero | <2%F.S/10°C | Repeatability | ±0.03%F.S |
| Input impedance | 1130±20Ω | Creep (30min) | ±0.03%F.S/30min |
| Output impedance | 1000±10Ω | Zero balance | ≤±5.0%F.S |
| Insulation resistance | ≥2000MΩ / 50VDC | Recommended excitation voltage | 3-5V(DC) |
| Material | Aluminum alloy | Safe overload | 120%F.S |
| Protection class | IP65 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

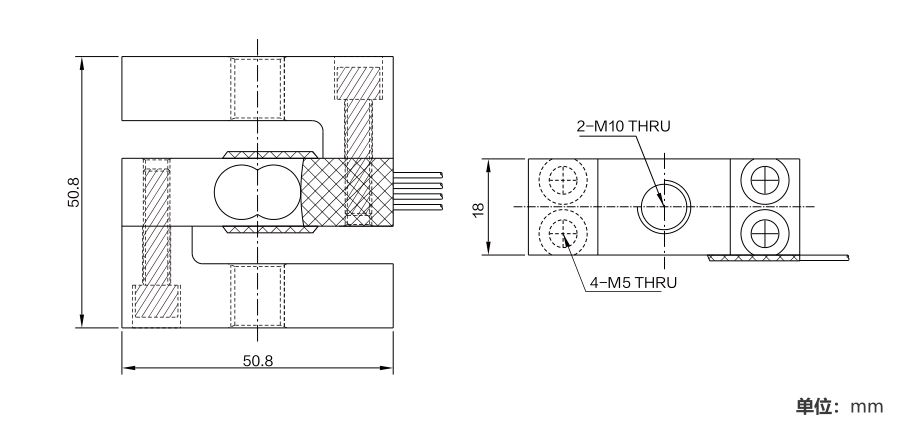

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK212?
Suited to electromechanical scales, hook scales, hopper scales and a range of special and process scales.
Which indicator, transmitter or system works with the MK212?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
