Overview

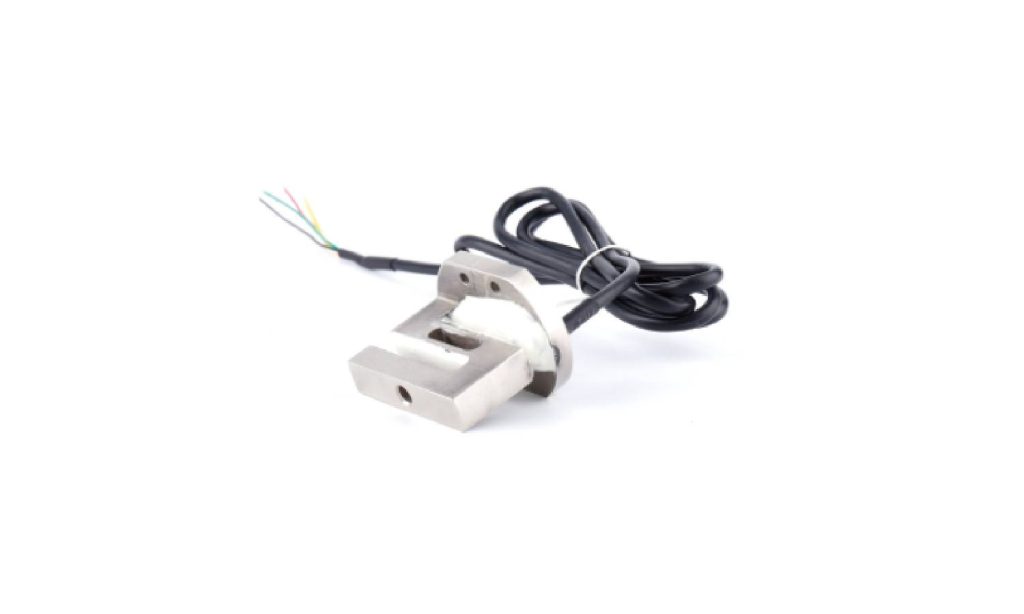

The MK211 is an S-type load cell formed as one S-shaped bending beam of two parallel elastic elements carrying bonded resistance strain gauges, so applied force creates stable strain and an accurate signal. It is compact with good linearity, repeatability and long-term stability over a wide measuring range, and analogue or digital output options let it match the instrument in use.
Key Features
- S-shaped double elastic-beam construction
- Wide measuring range with good linearity
- Stable, repeatable output
- Analogue or digital output options
- High accuracy (≤0.03%F.S) for precise measurement
- Stainless steel elastic element for durability and corrosion resistance
Applications
Electromechanical scales, crane and hook scales, hopper scales and dedicated process or special-purpose weighing equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 500N / 50kg | Comprehensive accuracy | ≤0.03%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0±10%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temperature Effect on Output | <0.03%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temperature Effect on Zero | <0.03%F.S/10°C | Repeatability | ±0.03%F.S |
| Input impedance | 405±10Ω | Creep (30min) | ±0.03%F.S/30min |
| Output impedance | 350±3Ω | Zero balance | ≤±2.0%F.S |
| Insulation resistance | ≥2000MΩ (50VDC) | Recommended excitation voltage | 5-12V(DC) |
| Material | Stainless steel | Safe overload | 120%F.S |
| Protection class | IP68 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

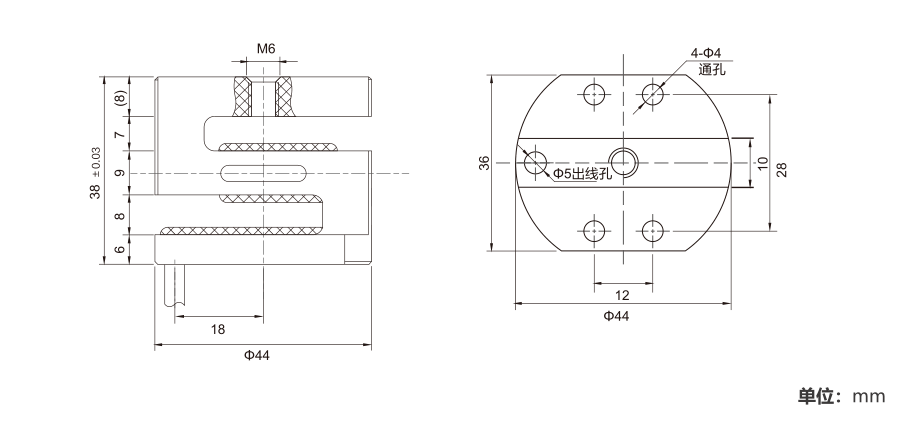

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK211?
Electromechanical scales, crane and hook scales, hopper scales and dedicated process or special-purpose weighing equipment.
Which indicator, transmitter or system works with the MK211?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
