Overview

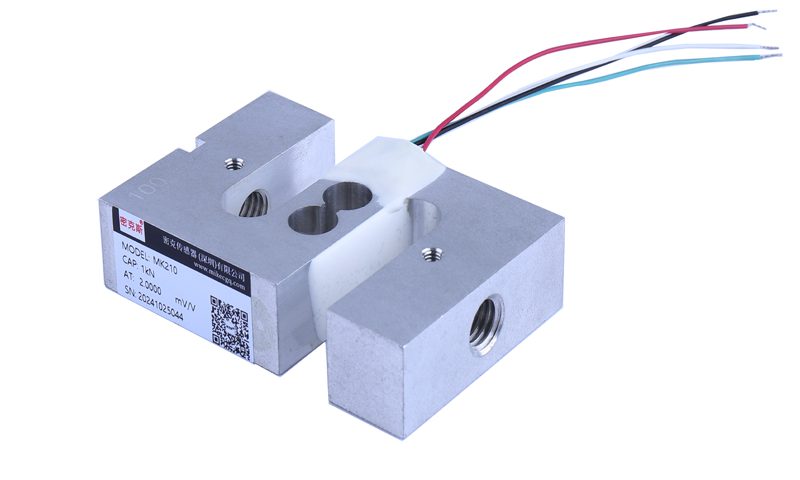

The MK210 S-type load cell works from a single S-shaped bending beam formed by two parallel elastic members carrying bonded resistance strain gauges, so applied force produces stable, predictable strain and an accurate output signal. The result is a compact cell with good linearity, repeatability and a wide measuring span, offered with analogue or digital output to match the host system.
Key Features
- S-beam design with bonded strain gauges
- Good linearity and repeatability
- Wide measuring span
- Analogue or digital output options
- High accuracy (≤0.05%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
Applications
Suited to testing machines, batching systems and general tension-compression force measurement on laboratory and industrial rigs.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 50N, 100N, 200N, 300N, 500N, 1kN, 2kN, 5kN | Comprehensive accuracy | ≤0.05%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0±5%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05%F.S |
| Temperature Effect on Output | ±0.05%F.S/10°C | Hysteresis | ±0.05%F.S |
| Temperature Effect on Zero | ±2%F.S/10°C | Repeatability | ±0.05%F.S |
| Input impedance | 1130±20Ω | Creep (30min) | ±0.05%F.S/30min |
| Output impedance | 1000±10Ω | Zero balance | ≤±5.0%F.S |
| Insulation resistance | ≥2000MΩ / 50VDC | Recommended excitation voltage | 5-12V(DC) |
| Material | Aluminum alloy | Safe overload | 120%F.S |
| Protection class | IP65 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

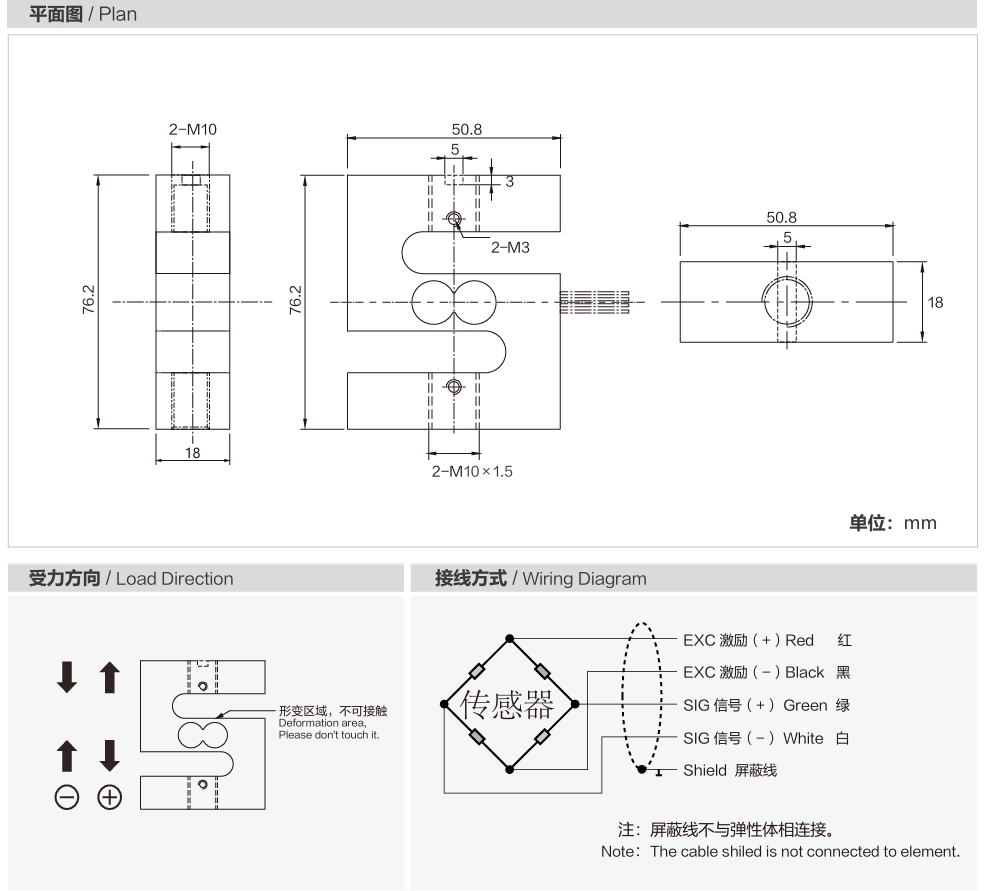

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK210?
Suited to testing machines, batching systems and general tension-compression force measurement on laboratory and industrial rigs.
Which indicator, transmitter or system works with the MK210?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
