Overview

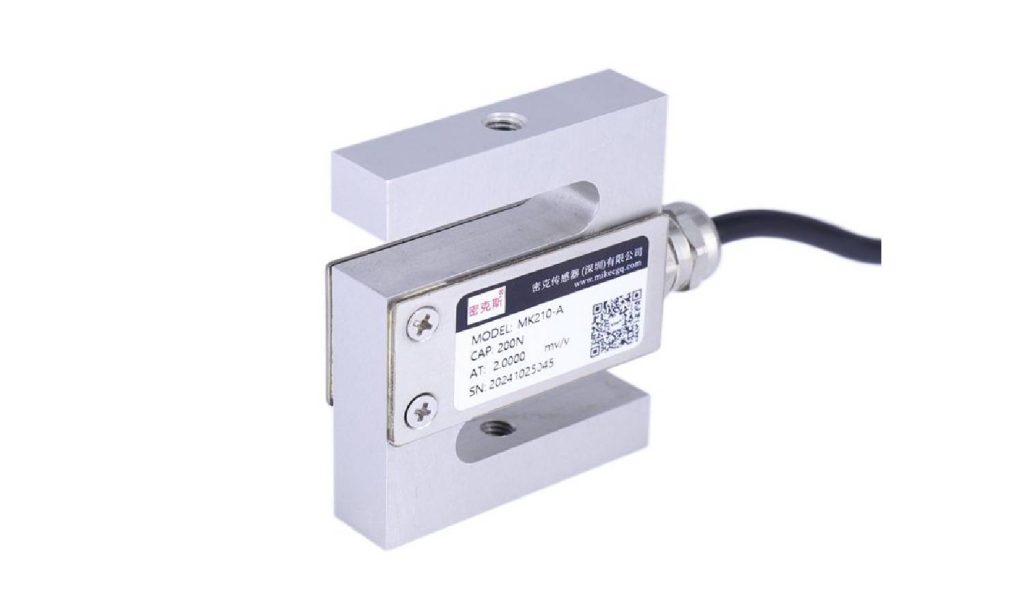

The MK210-A is an S-type load cell built as a single S-shaped bending beam of two parallel elastic elements carrying bonded resistance strain gauges, so applied force produces stable strain and an accurate output. It is compact with a wide measuring range and good linearity and repeatability, and offers analogue or digital signal options to match the user’s instrument.
Key Features
- High accuracy (±0.03%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP68 for reliable operation in harsh environments
- Standard output 2.0±10%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Material testing machines, hook and crane scales, batching scales, small hoppers and packaging scales; also machinery, automotive, aerospace, chemical instrumentation and medical-device production.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 10N, 20N, 50N, 100N, 150N, 200N, 300N, 500N, 1000N, 2000N | Output sensitivity | 2.0±10%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temperature Effect on Output | <0.03%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temperature Effect on Zero | <0.03%F.S/10°C | Repeatability | ±0.03%F.S |
| Input impedance | 405±10Ω | Creep (30min) | ±0.03%F.S/30min |
| Output impedance | 350±3Ω | Zero balance | ≤±2.0%F.S |
| Insulation resistance | ≥2000MΩ / 50VDC | Recommended excitation voltage | 5-12V(DC) |
| Material | Aluminum alloy | Safe overload | 120%F.S |
| Protection class | IP68 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

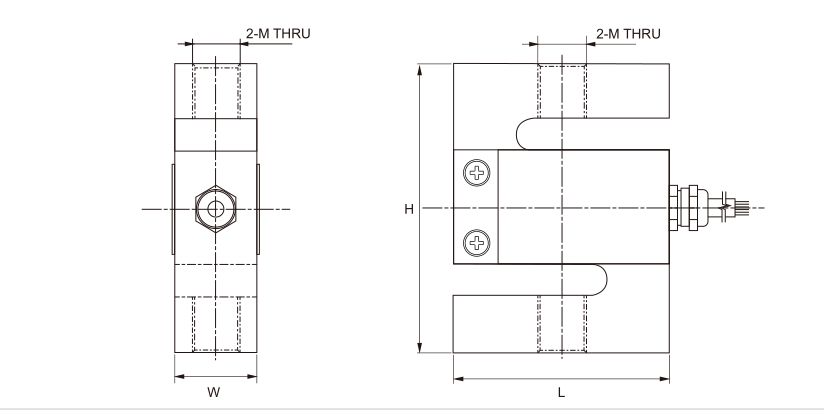

Dimension Drawing
Dimensions
| Model | Capacity (N) | Capacity (kg) | H | L | W | M |
|---|---|---|---|---|---|---|
| MK210-A | 50/100/150/200 | 5/10/15/20 | 63.5 | 50.8 | 12.7 | M6x1.0 |
| 300/500/1000/2000 | 30/50/100/200 | 76.2 | 25.4 | M12x1.75 |
Frequently Asked Questions
What are the typical applications of the MK210-A?
Material testing machines, hook and crane scales, batching scales, small hoppers and packaging scales; also machinery, automotive, aerospace, chemical instrumentation and medical-device production.
Which indicator, transmitter or system works with the MK210-A?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
