Overview

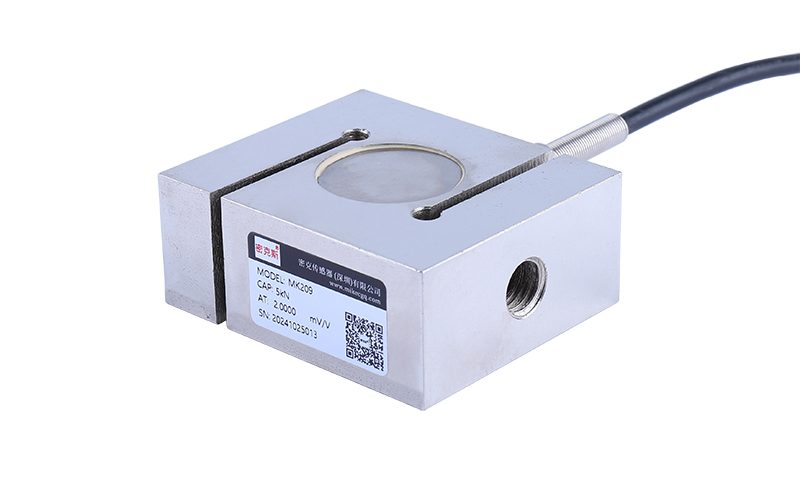

The MK209 is a square S-type tension-and-compression load cell with good symmetric output and a compact, easy-to-mount build. An integral transmitter provides a 4-20mA signal from 12V or 24V power, simplifying connection to control systems.
Key Features
- Handles tension and compression loads
- Built-in 4-20mA transmitter output
- Compact, symmetrical bidirectional design
- High accuracy (≤0.05%F.S) for precise measurement
- Stainless steel elastic element for durability and corrosion resistance
- Sealed to IP68 for reliable operation in harsh environments
Applications
Used in electromechanical scales, crane and hook scales, hopper scales, and various special-purpose and process weighing equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 3kN / 300kg, 5kN / 500kg | Comprehensive accuracy | ≤0.05%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0±0.2%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05%F.S |
| Temperature Effect on Output | <0.03%F.S/10°C | Hysteresis | ±0.05%F.S |
| Temperature Effect on Zero | <0.03%F.S/10°C | Repeatability | ±0.05%F.S |
| Input impedance | 400±5Ω | Creep (30min) | ±0.05%F.S/30min |
| Output impedance | 350±2Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10-12V(DC) |
| Material | Stainless steel | Safe overload | 120%F.S |
| Protection class | IP68 | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+) |

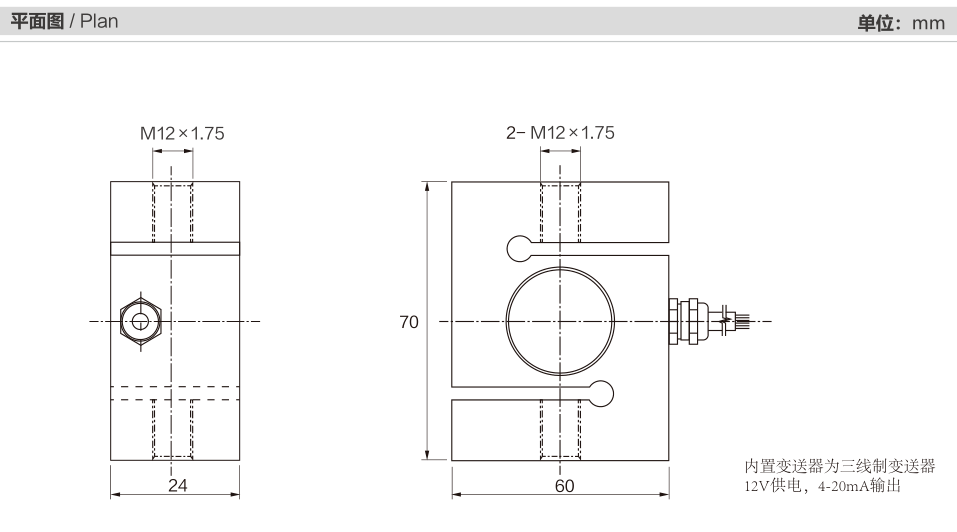

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK209?
Used in electromechanical scales, crane and hook scales, hopper scales, and various special-purpose and process weighing equipment.
Which indicator, transmitter or system works with the MK209?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
