Overview

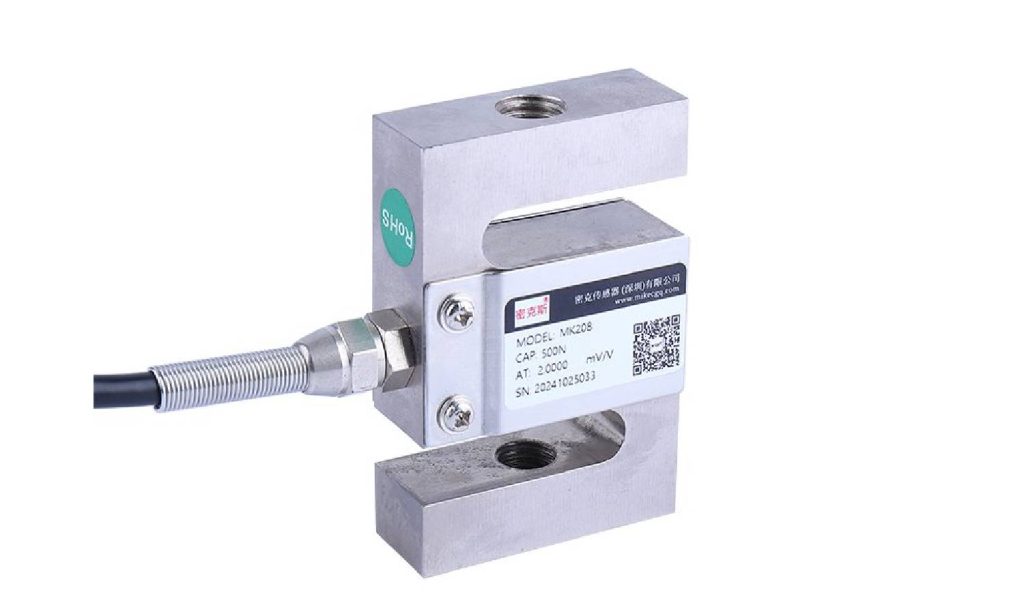

The MK208 is a square-body S-type load cell that measures both tension and compression with symmetrical output. Its compact, sturdy design offers straightforward installation and a wide specification range, and well-balanced output in both directions keeps measurements repeatable in dynamic force duty.
Key Features
- Handles tension and compression with symmetrical output
- Compact square-body S-type design
- Wide specification range, easy installation
- High accuracy (±0.05%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 2.0 ± 0.025mV/V, compatible with common indicators
Applications
Used to build electromechanical combination scales, crane and hook scales, hopper scales, and various special-purpose and process scales.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | MK208 500N/50kg 1kN/100kg 2kN/200kg 3kN/300kg 5kN/500kg 10kN/1t 15kN/1.5t 20kN/2t 30kN/3t 50kN/5tMK208-T 5kN/500kg 10kN/1t 20kN/2t | Output sensitivity | 2.0 ± 0.025mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05%F.S |
| Temperature Effect on Output | < 0.05%F.S/10°C | Hysteresis | ±0.05%F.S |
| Temperature Effect on Zero | < 0.05%F.S/10°C | Repeatability | ±0.05%F.S |
| Input impedance | 350 ± 10 Ω | Creep (30 min) | ±0.05%F.S/30min |
| Output impedance | 350 ± 2 Ω | Zero balance | ≤ ±1.0%F.S |
| Insulation resistance | ≥5000M Ω | Recommended excitation voltage | 10 12V DC |
| Material | Alloy steel | Safe overload | 120%F.S |
| Cable connection | Red: power+ (E+), Black: power- (E-); Green: signal+ (S+), White: signal- (S-) | ||

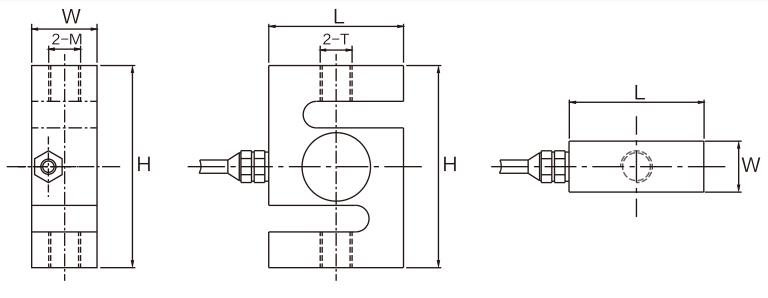

Dimension Drawing
Dimensions (mm)
| Model | Capacity (kN) | Capacity (kg) | H | L | W | M |
|---|---|---|---|---|---|---|
| MK208 | 0.5~3 | 50~300 | 76.2 | 50.8 | 19.2 | M12x1.75 |
| 5 | 500 | 25.4 | ||||
| 10~20 | 1000~2000 | M16x2.0 | ||||
| 30 | 3000 | 86 | 70 | 45 | M20x2.0 | |
| 50 | 5000 | 108 | 76.2 | 40 | ||
| MK208-T | 5 | 500 | 76.2 | 50.8 | 25.4 | M16x2.0 |
| 10 | 1000 | M12x1.75 | ||||
| 20 | 2000 | 108 | 76.2 | M18x1.5 |
