Overview

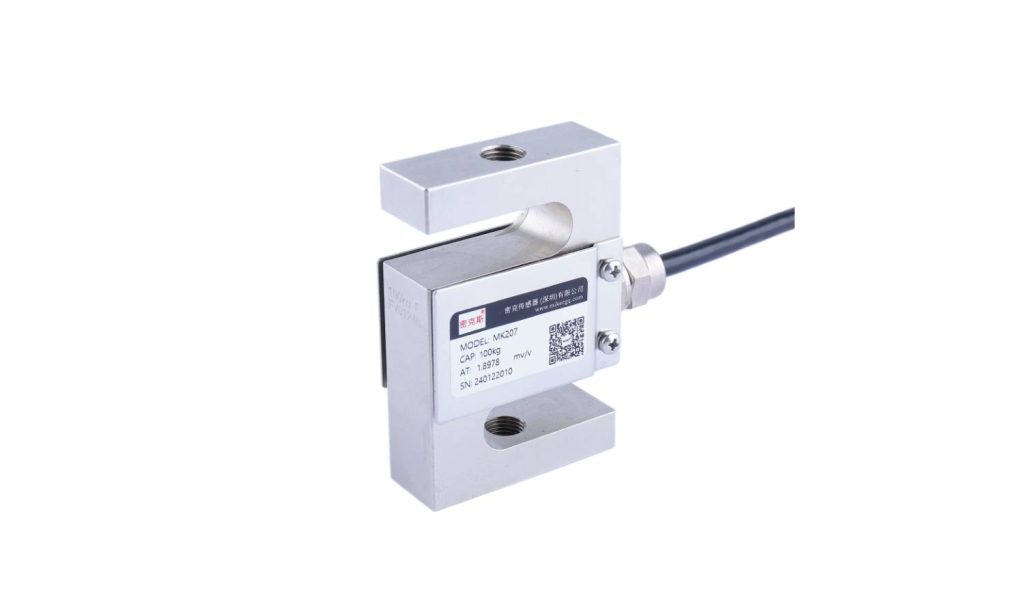

The MK207 is a square S-type tension and compression load cell that accepts force in either direction with symmetrical output. Its compact build, simple mounting and full lineup of standard ratings make it a practical dual-purpose choice for scale manufacturers.
Key Features
- High accuracy (C3 / C5) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Sealed to Cap. ≤1000kg: silicone sealing/IP66; Cap. ≥2t: laser welding/IP68 for reliable operation in harsh environments
- Standard output 2.0±0.2%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Intended for electromechanical scales, crane and hook scales, weighing hoppers and a range of dedicated process and application scales.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 50kg, 100kg, 200kg, 300kg, 500kg, 1000kg, 2000kg, 3000kg | Comprehensive accuracy | C3 / C5 |
| Temp. compensated range | -10°C~40°C | Output sensitivity | 2.0±0.2%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temperature Effect on Output | <0.05%F.S/10°C | Hysteresis | ±0.02%F.S |
| Temperature Effect on Zero | <2%F.S/10°C | Repeatability | ±0.03%F.S |
| Input impedance | 384±5Ω | Creep (30min) | ±0.02%F.S/30min |
| Output impedance | 350±3Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 5-15V(DC) |
| Protection class | Cap. ≤1000kg: silicone sealing/IP66; Cap. ≥2t: laser welding/IP68 | Safe overload | 120%F.S |
| Material | Alloy steel | Cable connection | Green: Power + (E+), Black: Power – (E-); White: Signal + (S+), Red: Signal – (S-) |

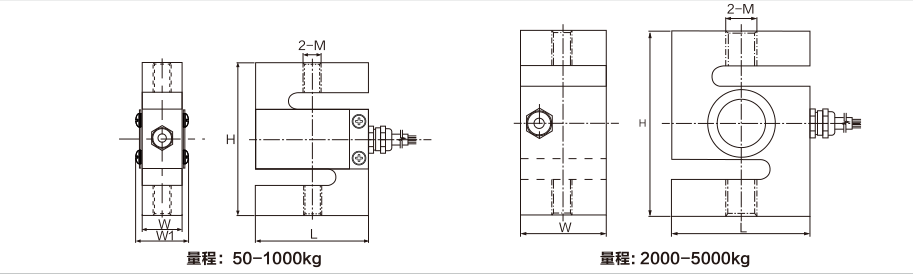

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (kg) | L | H | W | W1 | M |
|---|---|---|---|---|---|---|---|
| MK207 | 0.5~2 | 50~200 | 50.8 | 76.2 | 18.5 | 24.5 | M10x1.0 |
| 3 | 300 | 24.4 | 30.4 | ||||
| 5 | 500 | M12x1.0 | |||||
| 10 | 1000 | 36 | 42 | ||||
| 20 | 2000 | 70 | 86 | 45 | – | M16x1.5 | |
| 30 | 3000 | 80 | 100 | 50 | M18x1.5 | ||
| 50 | 5000 | 92 | 130 | 58 | M20x2.0 |
Frequently Asked Questions
What are the typical applications of the MK207?
Intended for electromechanical scales, crane and hook scales, weighing hoppers and a range of dedicated process and application scales.
Which indicator, transmitter or system works with the MK207?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
