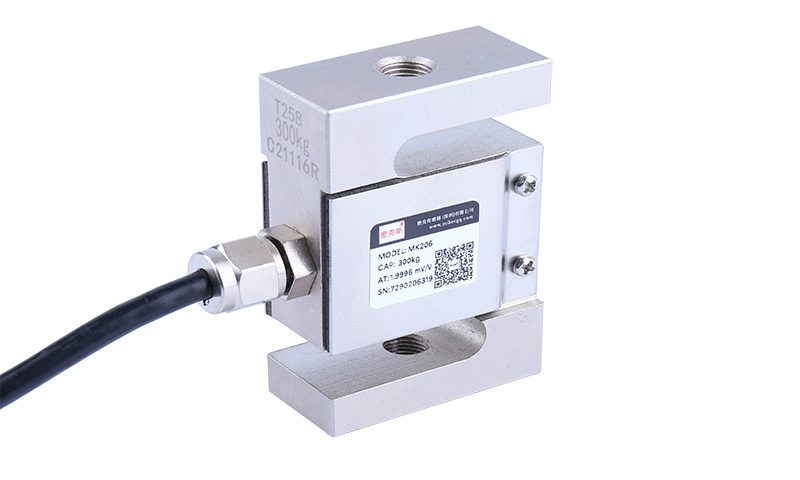

Overview
The MK206 is a square S-type load cell that measures both tension and compression, machined from quality alloy steel with a nickel-plated finish. It gives high overall accuracy, long-term stability and a compact, space-saving design.
Key Features
- High accuracy (±0.02%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 2.0±0.2%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Used in hook scales, batching and weighing control, and electromechanical upgrades of mechanical scales.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 500N / 50kg, 1kN / 100kg, 2kN / 200kg, 3kN / 300kg, 5kN / 500kg, 10kN / 1t, 20kN / 2t, 30kN / 3t, 50kN / 5t | Output sensitivity | 2.0±0.2%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.02%F.S |
| Temperature Effect on Output | <0.017%F.S/10°C | Hysteresis | ±0.02%F.S |
| Temperature Effect on Zero | <0.014%F.S/10°C | Repeatability | ±0.02%F.S |
| Input impedance | 385±15Ω | Creep (30min) | ±0.02%F.S/30min |
| Output impedance | 350±3Ω | Zero balance | ≤±1.5%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | Alloy steel | Safe overload | 120%F.S |
| Cable connection | Green: Exc+ (excitation +), Black: Exc- (excitation -); White: Sig+ (signal +), Red: Sig- (signal -); Yellow: Exn+ (feedback +), Blue: Exn- (feedback -); Yellow-Long: Shield | ||

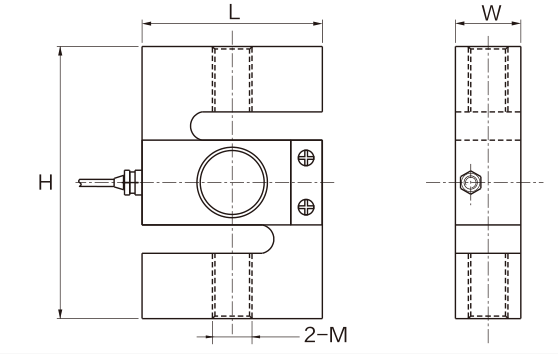

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (kg) | H | L | W | M |
|---|---|---|---|---|---|---|
| MK206 | 0.5~2 | 50~200 | 77 | 50.8 | 18.5 | M10x1.0 |
| 3 | 300 | 24.4 | ||||
| 5 | 500 | M12x1.0 | ||||
| 7~15 | 700~1500 | 36 | ||||
| 20 | 2000 | 86 | 70 | 45 | M16x1.5 | |
| 30 | 3000 | 100 | 80 | 50 | M18x1.5 | |
| 50 | 5000 | 130 | 92 | 58 | M20x2.0 |
Frequently Asked Questions
What are the typical applications of the MK206?
Used in hook scales, batching and weighing control, and electromechanical upgrades of mechanical scales.
Which indicator, transmitter or system works with the MK206?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
