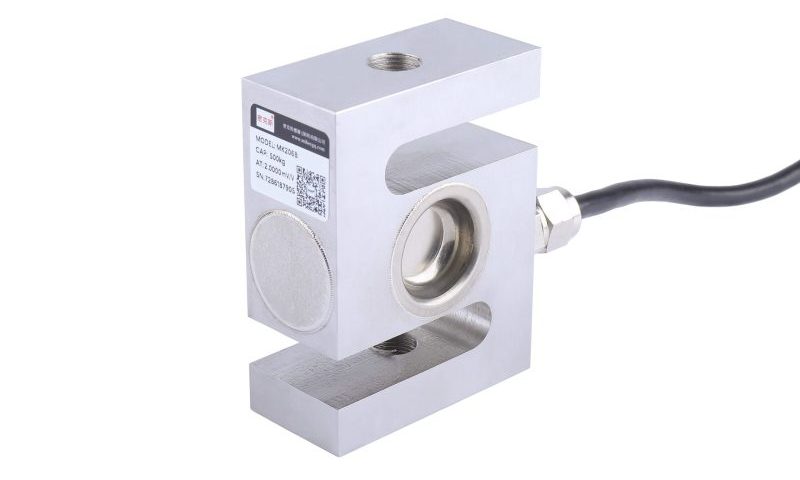

Overview
The MK206-B is a square S-type tension-and-compression load cell with a compact structure, high combined accuracy and good long-term stability. Machined from stainless steel and welded sealed to an IP68 rating, it shrugs off wet and dusty conditions, and it offers a practical route for retrofitting mechanical scales with electronic readout.
Key Features
- Tension and compression measurement
- Welded stainless steel, IP68
- Compact square S-beam design
- High accuracy (±0.03%F.S) for precise measurement
- Stainless steel / Alloy steel elastic element for durability and corrosion resistance
- Sealed to IP68 for reliable operation in harsh environments
Applications
Suited to crane and hook scales, packaging scales, batching weighing control and electromechanical retrofits of mechanical scales.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 2kN / 200kg, 3kN / 300kg, 5kN / 500kg, 10kN / 1t, 20kN / 2t, 30kN / 3t, 50kN / 5t | Output sensitivity | 2.0±0.2%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.03%F.S |
| Temperature Effect on Output | <0.02%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temperature Effect on Zero | <0.02%F.S/10°C | Repeatability | ±0.03%F.S |
| Input impedance | 385±15Ω | Creep (30min) | ±0.03%F.S/30min |
| Output impedance | 350±3Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | Stainless steel / Alloy steel | Safe overload | 120%F.S |
| Protection class | IP68 | Cable connection | Green: Exc+ (excitation +), Black: Exc- (excitation -); White: Sig+ (signal +), Red: Sig- (signal -); Yellow: Exn+ (feedback +), Blue: Exn- (feedback -); Yellow-Long: Shield |

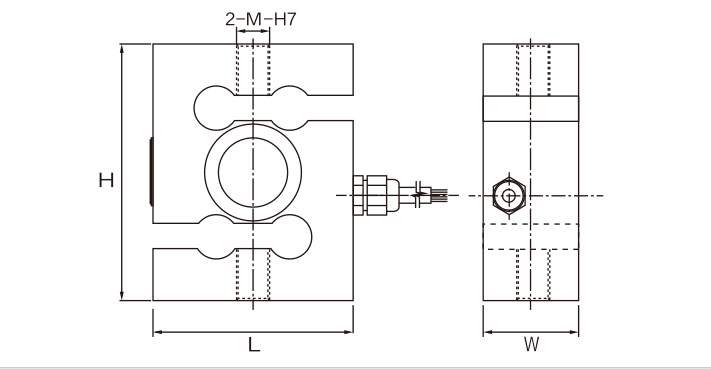

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (kg) | H | L | W | M |
|---|---|---|---|---|---|---|
| MK206-B | 2~3 | 200~300 | 80 | 62 | 30 | M10x1.0 |
| 5 | 500 | M12x1.0 | ||||
| 10 | 1000 | 90 | 70 | |||
| 20 | 2000 | 45 | M16x1.5 | |||
| 30 | 3000 | 100 | 80 | 50 | M18x1.5 | |
| 50 | 5000 | 130 | 92 | 58 | M20x2.0 |
Frequently Asked Questions
What are the typical applications of the MK206-B?
Suited to crane and hook scales, packaging scales, batching weighing control and electromechanical retrofits of mechanical scales.
Which indicator, transmitter or system works with the MK206-B?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
