Overview

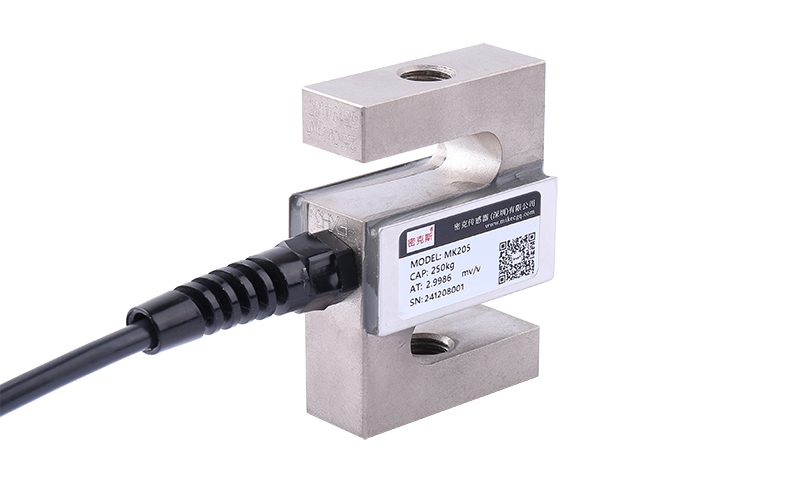

The MK205 is a square S-type load cell that takes tension and compression equally in a compact body. It provides high overall accuracy and good long-term stability with simple bidirectional mounting, so one cell design can serve lifting, batching and upgrade weighing duties.
Key Features
- Bidirectional tension and compression loading
- Compact square S-beam construction
- High accuracy, good long-term stability
- Simple two-way installation
- High accuracy (±0.02%F.S) for precise measurement
- Alloy steel (Ni-Plated) elastic element for durability and corrosion resistance
Applications
Crane and hook scales, batching and weighing control, and electromechanical conversion of mechanical scales.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | MK205: 0.25/0.5/0.75/1/1.5/2/2.5/3/5/7/10/15/20/25/30/50/70/75/100kNMK205-T: 50N/100N/200N/300N/500N | Output sensitivity | 2.0±0.25%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.02%F.S |
| Temperature Effect on Output | <0.02%F.S/10°C | Hysteresis | ±0.02%F.S |
| Temperature Effect on Zero | <0.02%F.S/10°C | Repeatability | ±0.01%F.S |
| Input impedance | 385±5Ω | Creep (30min) | ±0.02%F.S/30min |
| Output impedance | 350±3Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 5-12V(DC) |
| Material | Alloy steel (Ni-Plated) | Safe overload | 120%F.S |
| Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) | ||

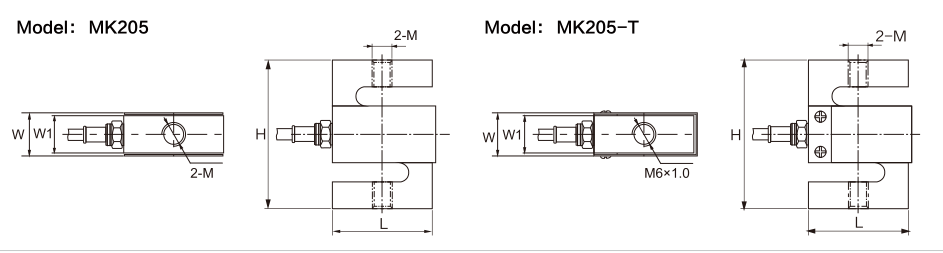

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (kg) | L | W | W1 | H | M |
|---|---|---|---|---|---|---|---|
| MK205 | 0.25, 0.5, 0.75 | 25, 50, 75 | 50.8 | 26.7 | 12.7 | 63.5 | M6x1.0 |
| 1, 1.5 | 100, 150 | 23 | 19.1 | 76.2 | M10x1.5 | ||
| 2.5 | 250 | 30.4 | M12x1.75 | ||||
| 5, 7.5 | 500, 750 | 25.4 | |||||
| 10, 15 | 1000, 1500 | 31.8 | 25.4 | ||||
| 20, 25, 50 | 2000, 2500, 5000 | 76.2 | 38.1 | 31.8 | 100.4 | M20x1.5 | |
| MK205-T | 0.05, 0.1, 0.2, 0.25, 0.5 | 5, 10, 20, 25, 50 | 51 | 16 | 13 | 64 | M6x1.0 |
Frequently Asked Questions
What are the typical applications of the MK205?
Crane and hook scales, batching and weighing control, and electromechanical conversion of mechanical scales.
Which indicator, transmitter or system works with the MK205?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
