Overview

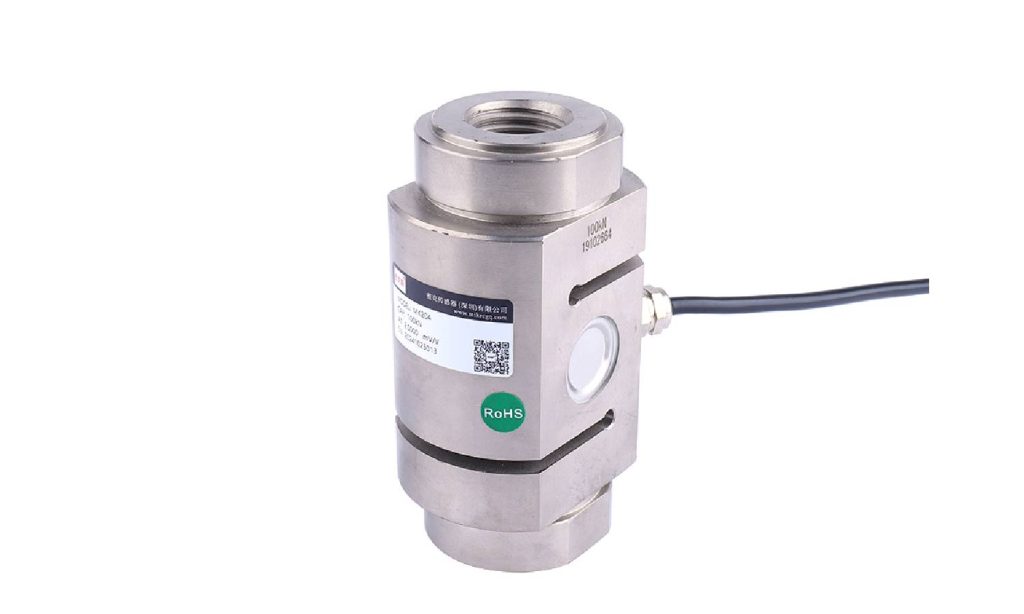

A column-form S-type cell, the MK204 handles both tension and compression from a deliberately simple structure that favours reliability and interchangeability between units. That combination of straightforward mechanics and consistent performance keeps replacement fast and downtime short on multi-cell installations.
Key Features
- High accuracy (≤0.05%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 1.5~2.0±0.01mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Widely specified for batching scales, weighing hoppers and crane or hook scales in industrial weighing and process control.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 1kN, 2kN, 3kN, 5kN, 7kN, 10kN, 20kN, 30kN, 50kN, 70kN, 100kN, 150kN, 200kN | Comprehensive accuracy | ≤0.05%F.S |
| Operating temperature range | -20°C~60°C | Output sensitivity | 1.5~2.0±0.01mV/V |
| Temperature Effect on Output | <0.05%F.S/10°C | Nonlinearity | ±0.05%F.S |
| Temperature Effect on Zero | <0.05%F.S/10°C | Hysteresis | ±0.05%F.S |
| Input impedance | 380±10Ω | Creep (30min) | ±0.05%F.S/30min |
| Output impedance | 350±3Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | Alloy steel | Safe overload | 120%F.S |
| Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) | ||

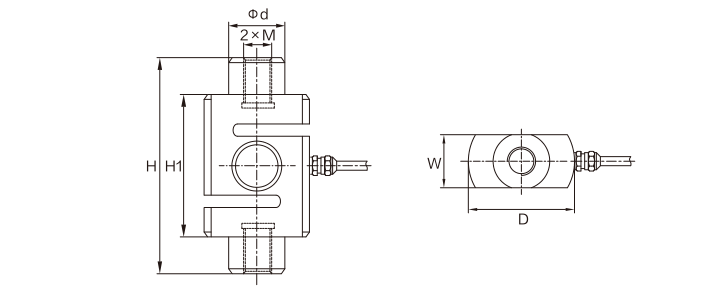

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (kg) | D | Φd | H | H1 | M | W |
|---|---|---|---|---|---|---|---|---|
| MK204 | 1~5 | 100~500 | 44 | 28 | 88 | 58 | M16x1.5 | 26 |
| 7 | 700 | 32 | 30 | |||||
| 10~50 | 1000~5000 | 63 | 51 | 120 | 68 | M22x2.5 | 48 | |
| 70~150 | 7000~15000 | 76 | 60 | 138 | 94 | M30x3.5 | 56 | |
| 200 | 20000 | 88 | 68.5 | 156 | 108 | M36x3.0 | 76 |
Frequently Asked Questions
What are the typical applications of the MK204?
Widely specified for batching scales, weighing hoppers and crane or hook scales in industrial weighing and process control.
Which indicator, transmitter or system works with the MK204?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
