Overview

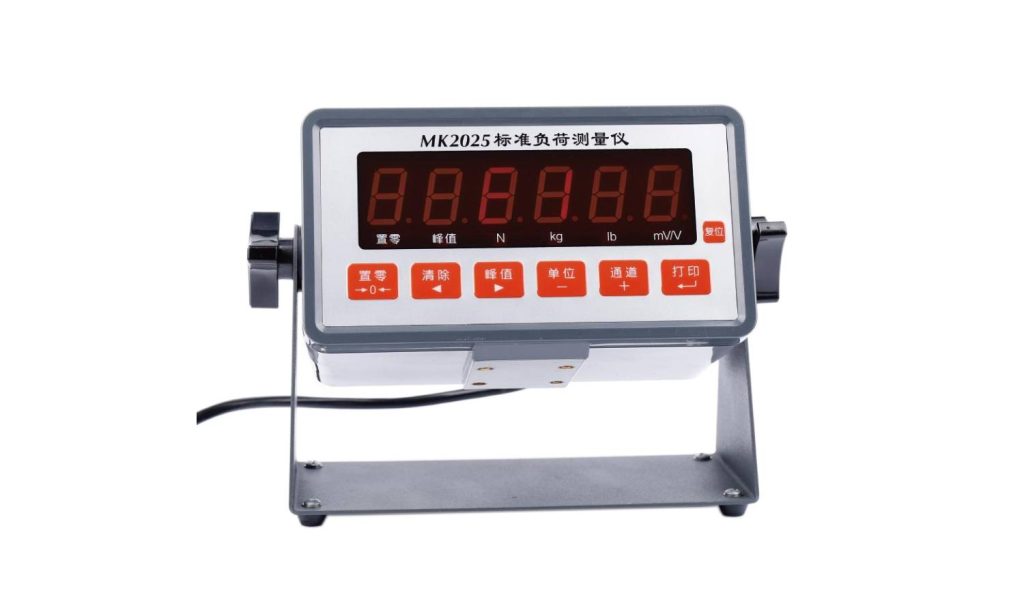

The MK2025 is a standard load meter, a foundational mechanical-measurement instrument with more than ten years of accumulated field service behind it. Its proven record keeps it in routine use as the default readout for force calibration and for checking force-measuring test equipment.
Key Features
- High combined accuracy and excellent long-term stability
- Compact design for straightforward integration
Applications
Found in national primary and secondary reference force laboratories, metrology institutes at provincial level and above, and quality-testing bodies serving defense and aerospace work.
| Technical Parameters | |||
|---|---|---|---|
| Model | MK2025 | Measurement style | Force Calibration Measurement |
| Adaptability level | 0.1%~0.3% | Input signal capacity | 5.0mV/V |
| Channel (optional) | 30 Channel (Standard) | Excitation output voltage | 10VDC |
| Bit & Size Display | 6 Bit – 1.0 Inch | Rated display divisions | 200,000 |
| AD Conversion rates | 50 times/second | Repeatability, Linearity | 0.01%F.S |
| Gain temperature coefficient | 20ppm | mV/V Accuracy | 0.03%F.S |
| Communication printing interface | RS232 | Power supply range | 110~220VAC |
Frequently Asked Questions
What are the typical applications of the MK2025?
Found in national primary and secondary reference force laboratories, metrology institutes at provincial level and above, and quality-testing bodies serving defense and aerospace work.
Which indicator, transmitter or system works with the MK2025?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
