Overview

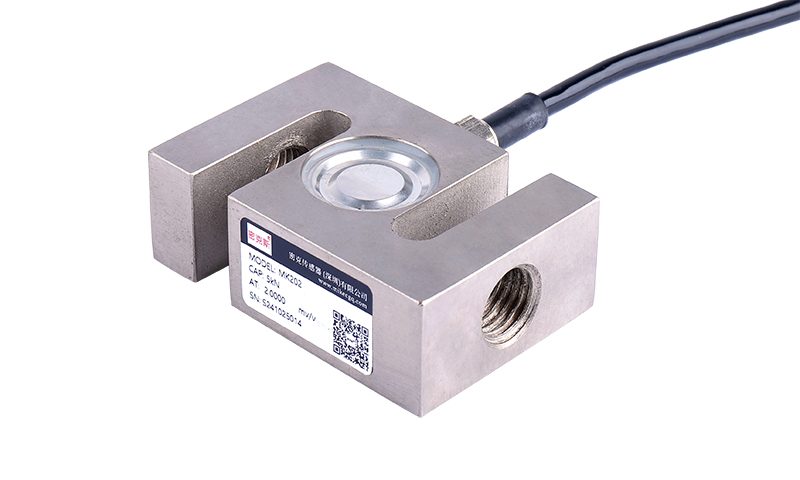

The MK202 is an S-type tension-and-compression load cell that offers high accuracy, true bidirectional loading, and convenient mounting. Its stable beam gives dependable force feedback for weighing and test control, and it installs easily into scale and machine builds.
Key Features
- Bidirectional tension and compression measurement
- High accuracy, easy installation
- High accuracy (≤0.05%F.S) for precise measurement
- Alloy Steel elastic element for durability and corrosion resistance
- Standard output 2.0±0.01mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Applied to batching, hook, electromechanical combination, and packaging scales and to material testing machines for force measurement and control.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | MK202: 5kN, 10kN, 15kN, 20kNMK202-T: 10kN, 20kN | Comprehensive accuracy | ≤0.05%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 2.0±0.01mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity / Repeatability | ±0.03%F.S |
| Temperature Effect on Output | <0.03%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temperature Effect on Zero | <0.03%F.S/10°C | Creep (30min) | ±0.03%F.S/30min |
| Input impedance | 380±10Ω | Zero balance | ≤±1.0%F.S |
| Output impedance | 350±3Ω | Recommended excitation voltage | 10V(DC) |
| Insulation resistance | ≥5000MΩ | Safe overload | 120%F.S |
| Material | Alloy Steel | Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) |

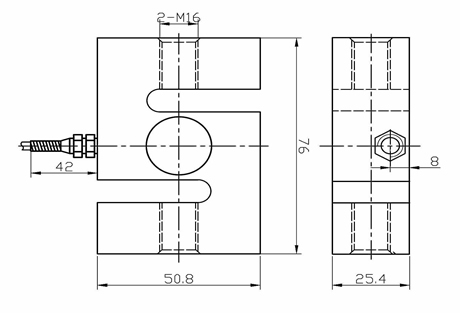

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK202?
Applied to batching, hook, electromechanical combination, and packaging scales and to material testing machines for force measurement and control.
Which indicator, transmitter or system works with the MK202?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
