Overview

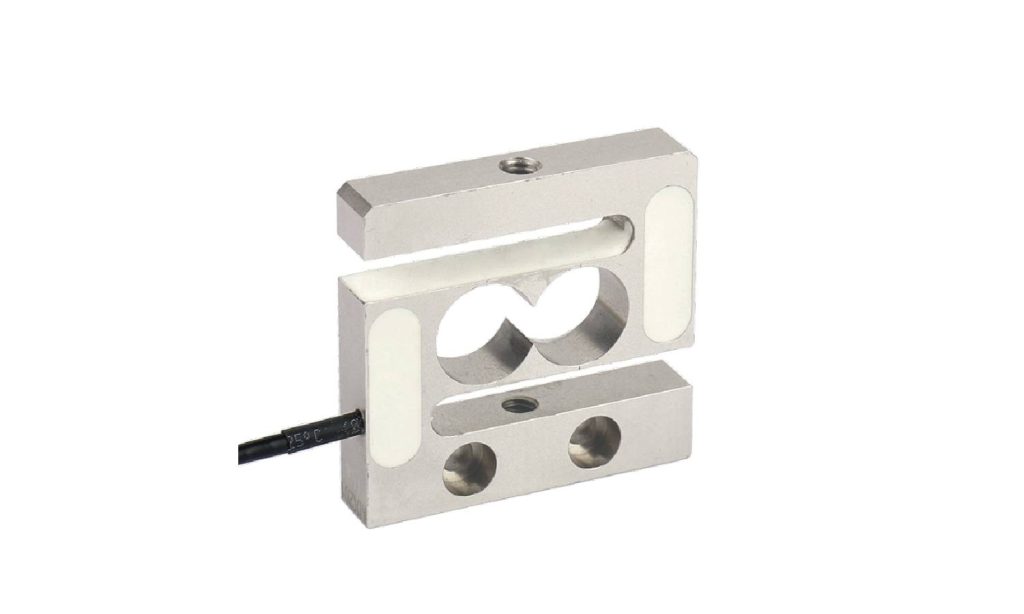

The MK201AL is a compact S-type tension-and-compression load cell offering high accuracy and easy installation. Its bidirectional design measures both pulling and pressing forces, making it simple to fit into weighing and force-control assemblies.
Key Features
- Measures tension and compression
- High accuracy, simple mounting
- High accuracy (≤0.02%F.S) for precise measurement
- Al-Alloy elastic element for durability and corrosion resistance
- Standard output 1.0±0.02mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Suited to batching, crane-hook and packaging scales, and material-testing machines for force measurement and control.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 5N, 10N, 20N, 30N; 50N, 100N, 200N | Comprehensive accuracy | ≤0.02%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 1.0±0.02mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity / Repeatability | ±0.02%F.S |
| Temperature Effect on Output | <0.02%F.S/10°C | Hysteresis | ±0.02%F.S |
| Temperature Effect on Zero | <0.02%F.S/10°C | Creep (30min) | ±0.02%F.S/30min |
| Input impedance | 380±20Ω / 385±15Ω | Zero balance | ≤±1.0%F.S |
| Output impedance | 351±3Ω / 350±3Ω | Recommended excitation voltage | 10V(DC) |
| Insulation resistance | ≥5000MΩ | Safe overload | 120%F.S |
| Material | Al-Alloy | Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) |

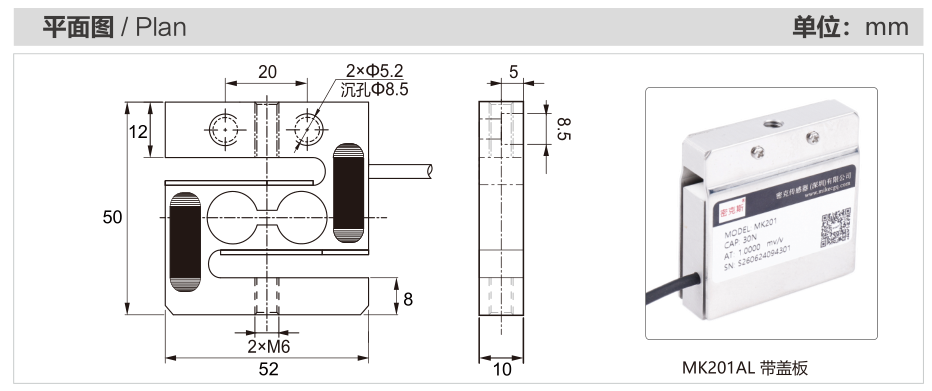

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK201AL?
Suited to batching, crane-hook and packaging scales, and material-testing machines for force measurement and control.
Which indicator, transmitter or system works with the MK201AL?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
