Overview

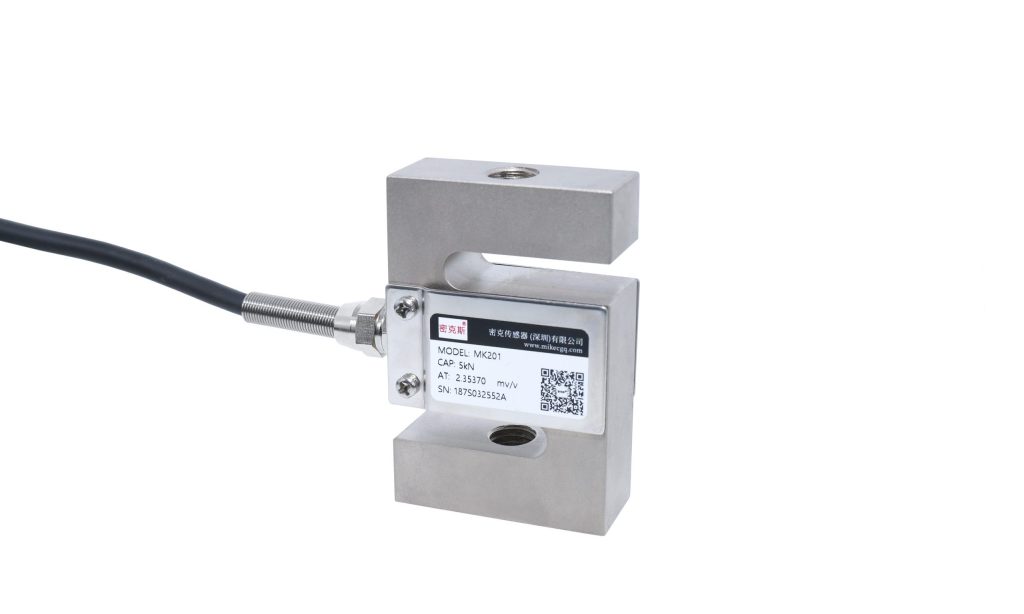

The MK201 is an S-type tension-and-compression load cell that measures force in both directions with high accuracy and simple mounting. Its compact beam design gives a dependable signal for closed-loop force measurement and control, and it is quick to install in repetitive industrial weighing and testing.
Key Features
- Bidirectional tension and compression sensing
- High accuracy, straightforward installation
- High accuracy (≤±0.01%F.S) for precise measurement
- ≤30N: Al-Alloy, ≥50N: Alloy Steel elastic element for durability and corrosion resistance
- Standard output 2.0±0.02mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Applied to batching, hook, and packaging scales and to material testing machines for force measurement and control where reliable force feedback is needed.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | MK201: 50N, 100N, 200N, 300N, 500N, 1kN, 2kN, 3kN, 5kN, 10kN, 20kN, 30kN, 50kN, 100kN, 150kN, 200kNMK201-T: 500N, 20kN, 30kN, 50kN | Comprehensive accuracy | ≤±0.01%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 2.0±0.02mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.01%F.S |
| Temperature Effect on Output | <0.01%F.S/10°C | Repeatability | ±0.01%F.S |
| Temperature Effect on Zero | <0.01%F.S/10°C | Hysteresis | ±0.01%F.S |
| Input impedance | 380±20Ω / 385±15Ω | Creep (30min) | ±0.01%F.S/30min |
| Output impedance | 351±3Ω / 350±3Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | ≤30N: Al-Alloy, ≥50N: Alloy Steel | Safe overload | 120%F.S |
| Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) | ||

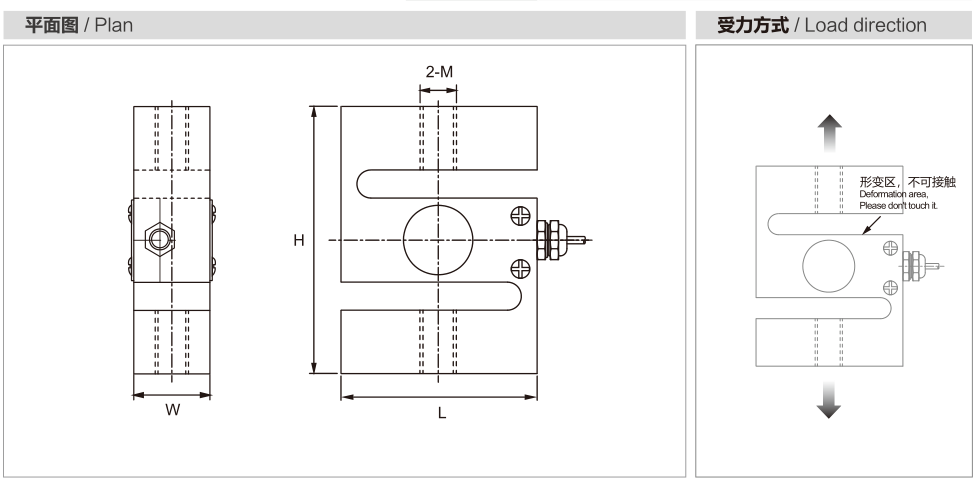

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (kg) | L | H | W | M |
|---|---|---|---|---|---|---|
| MK201 | 0.05~0.5 | 5~50 | 51 | 64 | 13 | M8x1.25 |
| 1~5 | 100~500 | 76 | 19.1 | M12x1.75 | ||
| 10~20 | 1000~2000 | 54 | 25.4 | |||
| 25~50 | 2500~5000 | 76 | 108 | M18x1.5 | ||
| 75 | 7500 | 100 | 140 | 32 | M24x2.0 | |
| 100 | 10000 | 126 | 178 | 50 | M30x2.0 | |
| 150~200 | 15000~20000 | 140 | 188 | 60 | M39x2.0 | |
| MK201-T | 0.5 | 50 | 51 | 76 | 19.1 | M12x1.75 |
| 20 | 2000 | 76 | 108 | 25.4 | M20x2.5 | |
| 30 | 3000 | 70 | 86 | 45 | ||
| 50 | 5000 | 76.2 | 108 | 40 |
Frequently Asked Questions
What are the typical applications of the MK201?
Applied to batching, hook, and packaging scales and to material testing machines for force measurement and control where reliable force feedback is needed.
Which indicator, transmitter or system works with the MK201?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
