Overview

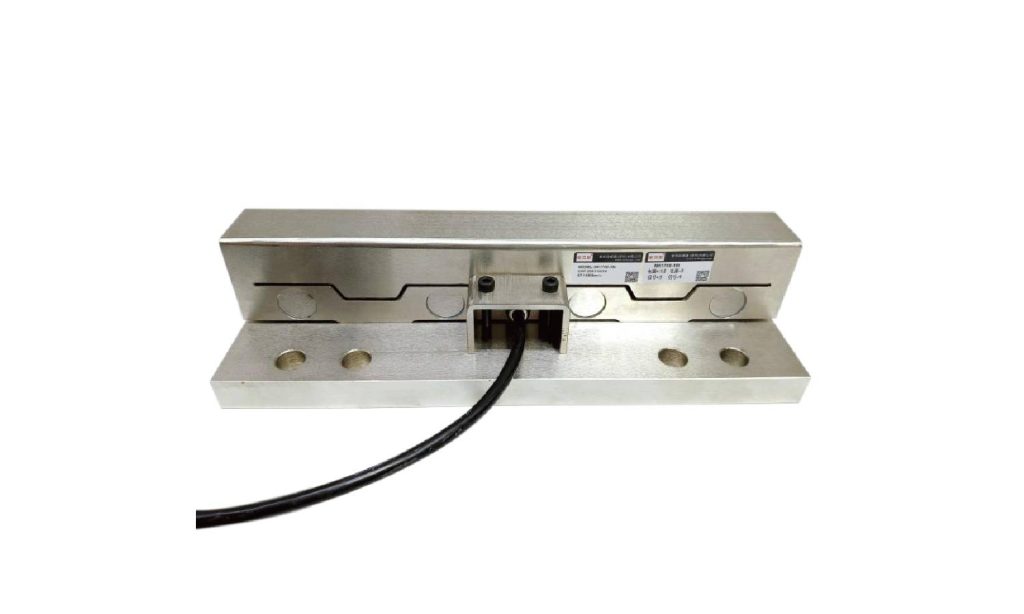

The MK1700 is a rail-break-type force sensor for dynamic weighing and rail-integrity monitoring. It installs quickly, responds fast, and resists interference for stable output on moving-axle duty, supporting train weighing as well as broken-rail detection. A rugged design keeps measurements dependable in demanding trackside environments.
Key Features
- Fast response with strong interference rejection
- Supports dynamic train weighing and rail-break detection
- Simple, quick installation for trackside duty
- High accuracy (≤0.2%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Sealed to IP65 for reliable operation in harsh environments
Applications
Mainly used in dynamic track scales, coal-tower scales, and axle-counting systems for weighing moving trains and detecting rail breaks.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 15t | Output sensitivity | 1.5 ± 0.5mV/V |
| Temperature compensated range | -10°C~40°C | Nonlinearity | ≤0.2%F.S |
| Operating temperature range | -30°C~70°C | Hysteresis | ≤0.2%F.S |
| Temperature Effect on Output | ≤0.05%F.S/10°C | Repeatability | ≤0.05%F.S |
| Temperature Effect on Zero | ≤0.05%F.S/10°C | Creep (30 min) | ≤0.05%F.S/30min |
| Insulation resistance | ≥5000M Ω | Zero balance | ±2%F.S |
| Material | Alloy steel | Recommended excitation voltage | 10~12VDC |
| Protection class | IP65 | Safe overload | 120%F.S |
| Cable size | According to your requirement | Limit overload | – |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

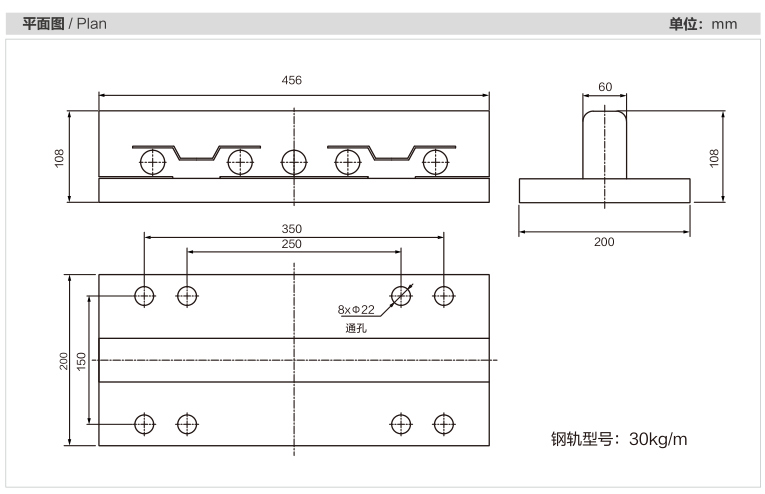

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK1700?
Mainly used in dynamic track scales, coal-tower scales, and axle-counting systems for weighing moving trains and detecting rail breaks.
Which indicator, transmitter or system works with the MK1700?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
