Overview

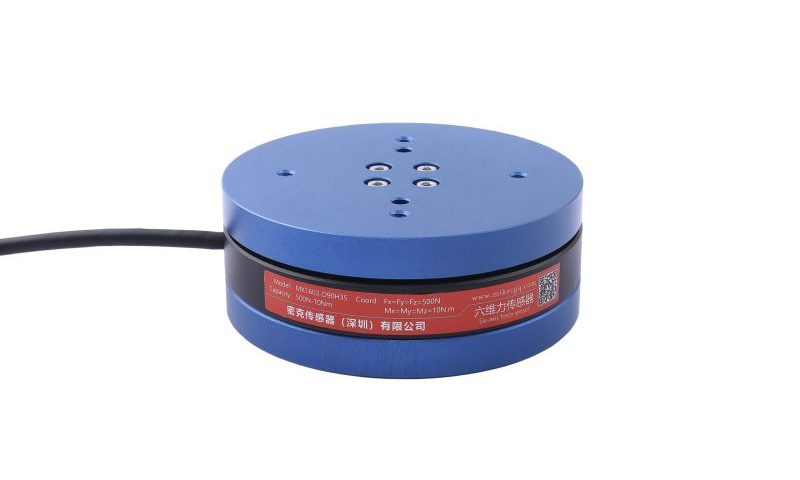

The MK1603-D90H35 is a six-axis force sensor that measures the three force components (Fx, Fy, Fz) and three moments (Mx, My, Mz) simultaneously, giving equipment the force feedback needed for precise, force-controlled operation.
Key Features
- Measures three forces and three moments at once
- Provides force feedback for flexible robotic control
- Supports precision assembly and grinding tasks
- High accuracy (≤ ±0.5%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP65 for reliable operation in harsh environments
Applications
Used in robotics and automation (assembly, grinding, drag teaching), automotive crash and chassis testing, aerospace wind tunnels and docking, and surgical robots, rehabilitation devices and prosthetics.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | See the parameter table description | Output Sensitivity | – |
| Nonlinearity | ≤ ±0.5%F.S | Repeatability | ≤ ±0.05%F.S |
| Zero balance | ≤ ±5%F.S | Recommended excitation voltage | 5~10V DC |
| Safe overload | 300%F.S | Compensation temperature range | -10°C~40°C |
| Operating temperature range | -20°C~80°C | Temperature Effect on Output | ≤0.2%F.S./10°C |
| Temperature Effect on Zero | ≤0.2%F.S./10°C | Long-term crosstalk error | ≤3%F.S |
| Insulation resistance | ≥2000MΩ /50VDC | Material | Aluminum alloy |
| Protection class | IP65 | Cable size | Φ4.5 x 0.5m + Φ4.5 x 2.5m + 14-pin connector |

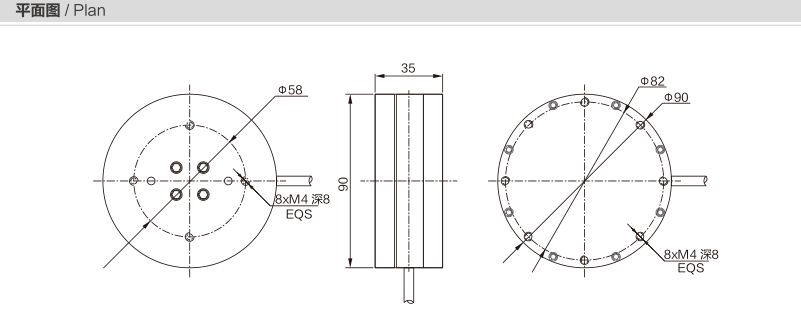

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK1603-D90H35?
Used in robotics and automation (assembly, grinding, drag teaching), automotive crash and chassis testing, aerospace wind tunnels and docking, and surgical robots, rehabilitation devices and prosthetics.
Which indicator, transmitter or system works with the MK1603-D90H35?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
