Overview

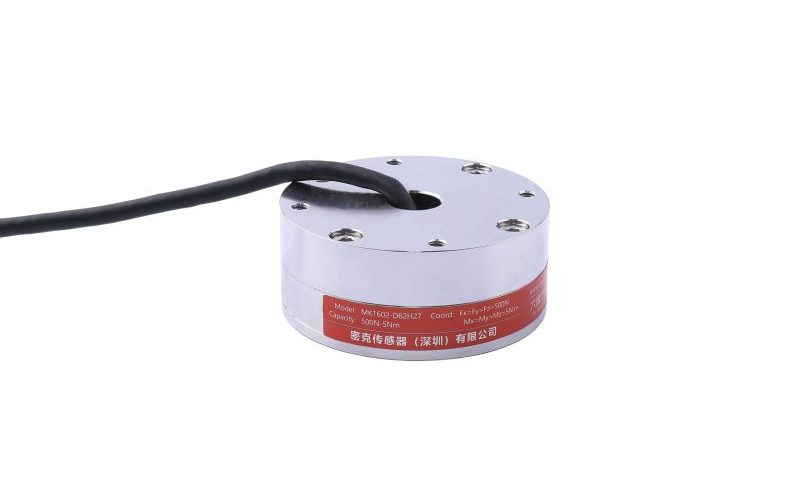

The MK1602-D62H27 is a six-axis force sensor that measures all three force components (Fx, Fy, Fz) and three moments (Mx, My, Mz) at the same time. That complete picture of what a contact point experiences gives machines the force data needed for compliant, high-precision work, acting as the tactile sensing core of advanced equipment.
Key Features
- Simultaneous six-component force and moment measurement
- Real-time feedback for compliant force control
- Enables precise assembly and surface finishing
- Supports test and simulation data capture
- High accuracy (≤ ±0.5%F.S.) for precise measurement
- Stainless steel elastic element for durability and corrosion resistance
Applications
Robots and automation for precision assembly, grinding, polishing and force-guided teaching; vehicle crash, chassis dynamometer, steering and brake rigs; wind tunnels and spacecraft docking; surgical robots, rehabilitation devices and prosthetics.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | See the parameter table description | Output Sensitivity | – |
| Nonlinearity | ≤ ±0.5%F.S. | Repeatability | ≤ ±0.05%F.S. |
| Zero balance | ≤ ±5%F.S. | Compensation temperature range | -10°C~40°C |
| Operating temperature range | -20°C~80°C | Temperature Effect on Output | ≤0.2%F.S./10°C |
| Temperature Effect on Zero | ≤0.2%F.S./10°C | Insulation resistance | ≥2000MΩ /50VDC |
| Recommended excitation voltage | 5~10V DC | Long-term crosstalk error | ≤3%F.S. |
| Safe overload | 300%F.S. | Material | Stainless steel |
| Protection class | IP65 | Cable size | Φ4.5 x 0.5m + Φ4.5 x 2.5m + 14-pin connector |

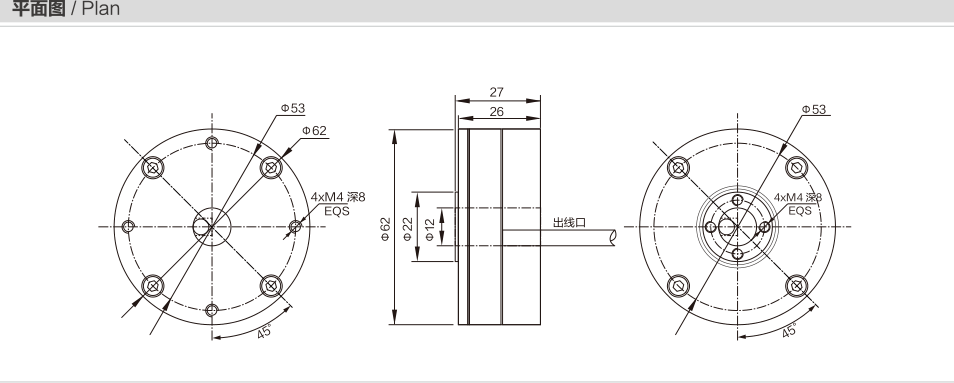

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK1602-D62H27?
Robots and automation for precision assembly, grinding, polishing and force-guided teaching; vehicle crash, chassis dynamometer, steering and brake rigs; wind tunnels and spacecraft docking; surgical robots, rehabilitation devices and prosthetics.
Which indicator, transmitter or system works with the MK1602-D62H27?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
