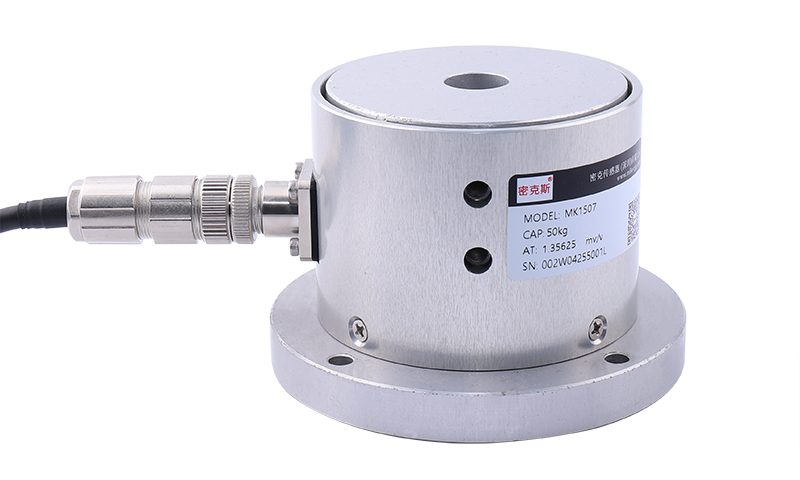

Overview
The MK1507 is a resistance strain-gauge tension sensor in a lightweight aluminium-alloy body, rated for -20 to +80 degC service. It monitors web tension in real time on moving or stationary material and converts the mechanical strain into a stable signal for accurate closed-loop control on automated production lines.
Key Features
- Resistance strain-gauge web-tension monitoring
- Lightweight aluminium body, rated -20 to +80 degC
- Prevents material breakage, deformation, and slack
- High accuracy (0.2%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP65 for reliable operation in harsh environments
Applications
Applied to battery winding and coating machines, textile spinning, weaving and finishing lines, gravure printing, bag-making and labelling, paper and film winding, and wire and cable extrusion.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 2.5 5 10 15 25 50kg | Output Sensitivity | 1.0 ± 10%mV/V |
| Nonlinearity | 0.2%F.S | Repeatability | 0.1%F.S |
| Zero balance | ±2%F.S | Recommended excitation voltage | 5~10VDC |
| Limit overload | 1000%F.S | Compensation temperature range | -10°C~40°C |
| Operating temperature range | -20°C~80°C | Temperature Effect on Zero | 0.02%F.S/10°C |
| Input impedance | – | Output impedance | – |
| Insulation resistance | ≥5000MΩ 100VDC | Material | Aluminum alloy |
| Protection class | IP65 | Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) |

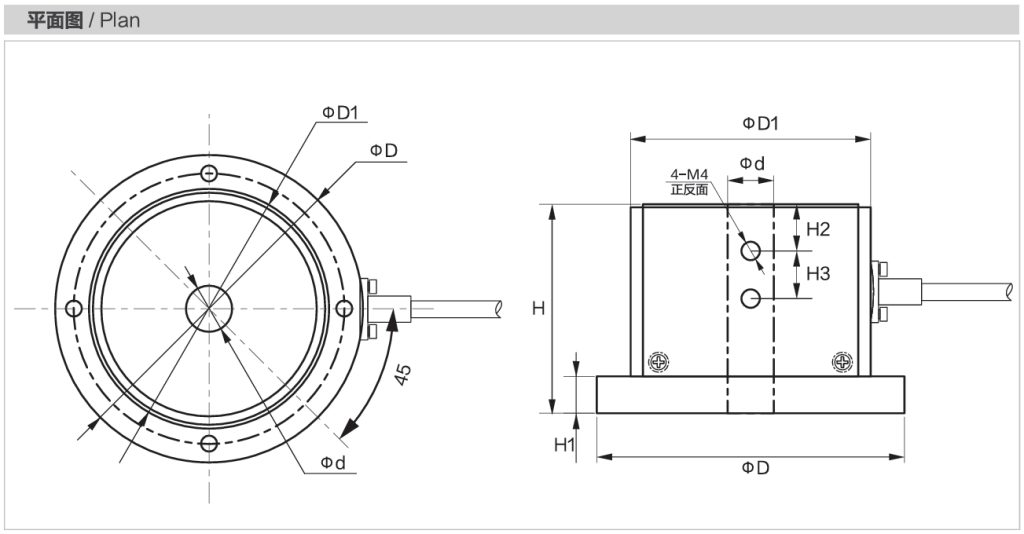

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK1507?
Applied to battery winding and coating machines, textile spinning, weaving and finishing lines, gravure printing, bag-making and labelling, paper and film winding, and wire and cable extrusion.
Which indicator, transmitter or system works with the MK1507?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
