Overview

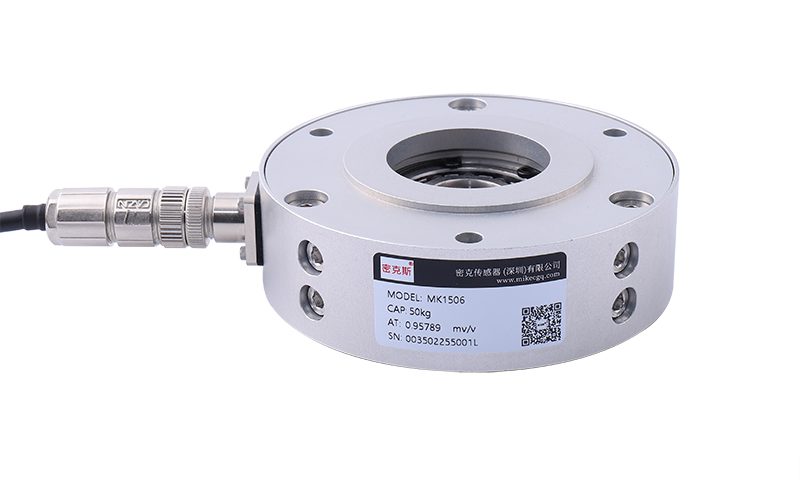

The MK1506 is a strain-gauge tension sensor designed for high-accuracy industrial measurement. Its aluminium-alloy body is rated for -20 to +80 degC service. By monitoring the pulling force in moving or stationary material and converting that deformation into a stable electrical signal, it supplies automated production lines with the precise tension-control data needed to protect product quality and throughput.
Key Features
- Aluminium-alloy body, -20 to +80 degC
- Real-time tension feedback
- Helps prevent breaks and deformation
- High accuracy (±0.3%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP65 for reliable operation in harsh environments
Applications
Applied on lithium-battery winding and coating machines, textile spinning, weaving and dyeing lines, gravure presses, bag-making and labelling machines, paper and film winding, and wire, cable and extrusion equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 5 / 10 / 15 / 25 / 50 /100kg | Output Sensitivity | 1.5±0.2%mV/V |
| Nonlinearity | ±0.3%F.S | Repeatability | ±0.2%F.S |
| Zero balance | ±2%F.S | Recommended excitation voltage | 5~10VDC |
| Limit overload | 1000%F.S | Compensation temperature range | -10°C~40°C |
| Operating temperature range | -20°C~80°C | Temperature Effect on Zero | 0.02%F.S/10°C |
| Input impedance | – | Output impedance | – |
| Insulation resistance | ≥5000MΩ /100VDC | Material | Aluminum alloy |
| Protection class | IP65 | Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) |

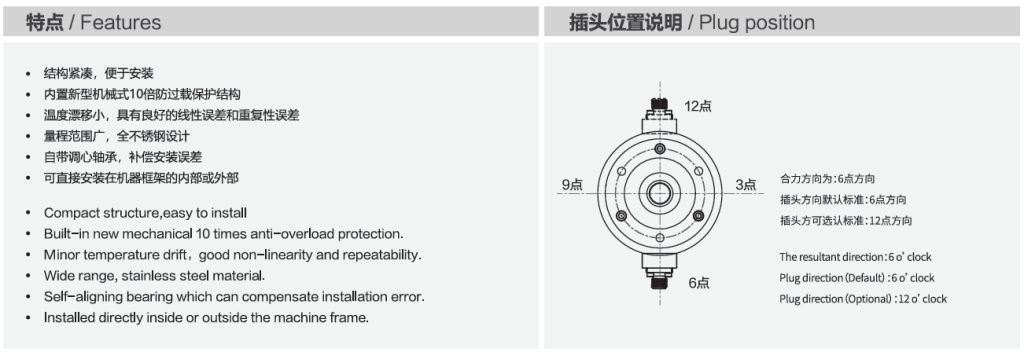

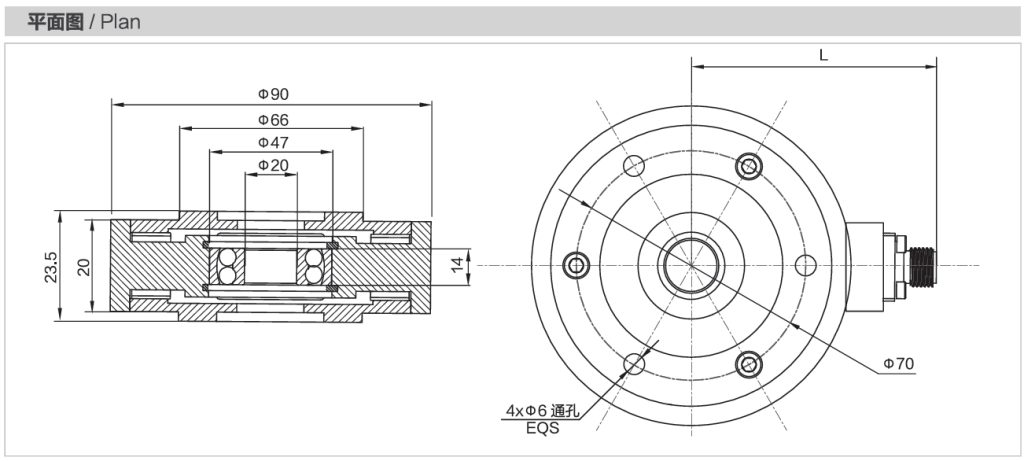

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK1506?
Applied on lithium-battery winding and coating machines, textile spinning, weaving and dyeing lines, gravure presses, bag-making and labelling machines, paper and film winding, and wire, cable and extrusion equipment.
Which indicator, transmitter or system works with the MK1506?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
