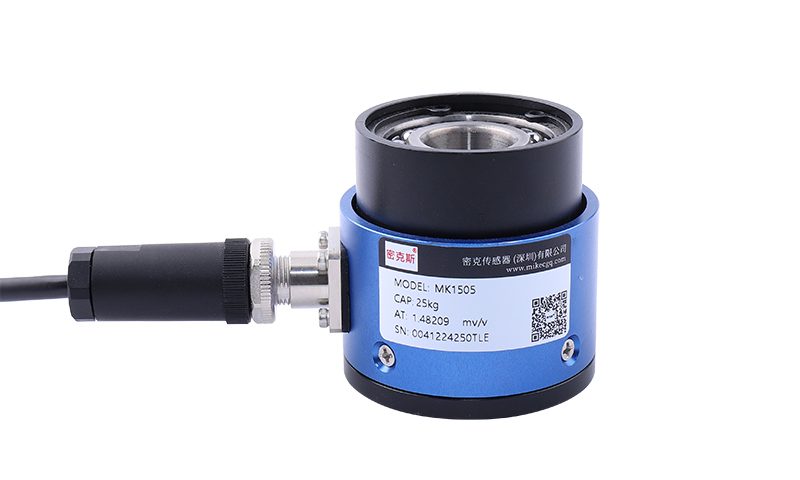

Overview
The MK1505 is a foil strain-gauge tension sensor with a lightweight aluminium-alloy body, rated for -20 to +80 degC service. It continuously monitors web tension, the pulling force on material in motion or at rest, and converts the mechanical strain into a stable, precise electrical signal, making it a reliable element for closed-loop tension control on automated production lines.
Key Features
- Foil strain-gauge design for stable tension measurement
- Lightweight aluminium-alloy body, rated -20 to +80 degC
- Real-time tension feedback for closed-loop control
- Helps prevent web breakage, deformation and slack
- High accuracy (±0.3%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
Applications
Applied to battery winding and coating machines, textile spinning, weaving and finishing lines, gravure printing, bag-making and labelling equipment, paper and film winding, and wire, cable and extrusion machinery.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 5 10 20 50 100kg | Output Sensitivity | 1.0 ± 10%mV/V |
| Nonlinearity | ±0.3%F.S | Repeatability | 0.2%F.S |
| Zero balance | ±2%F.S | Recommended excitation voltage | 5~12VDC |
| Limit overload | 1000%F.S | Compensation temperature range | -10°C~40°C |
| Operating temperature range | -20°C~80°C | Temperature Effect on Zero | ±0.1%F.S/10°C |
| Input impedance | – | Output impedance | – |
| Insulation resistance | ≥5000MΩ 100VDC | Material | Aluminum alloy |
| Protection class | IP65 | Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) |

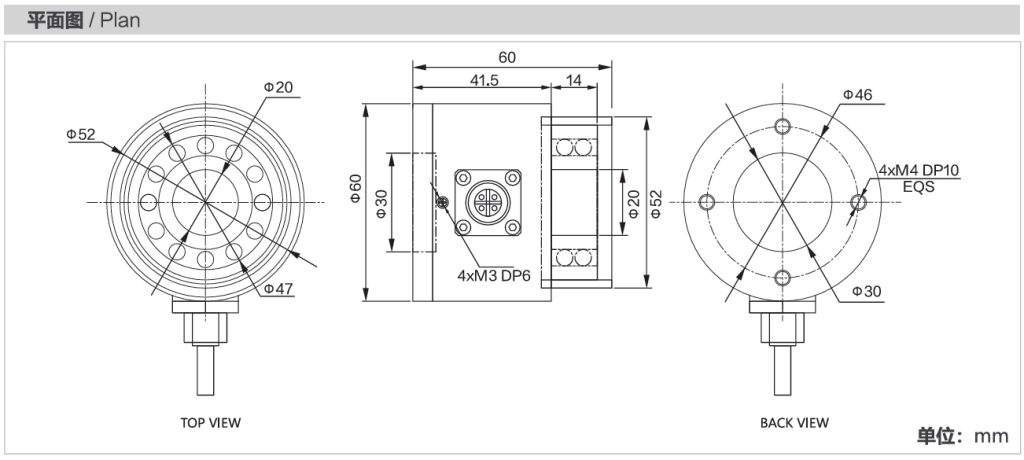

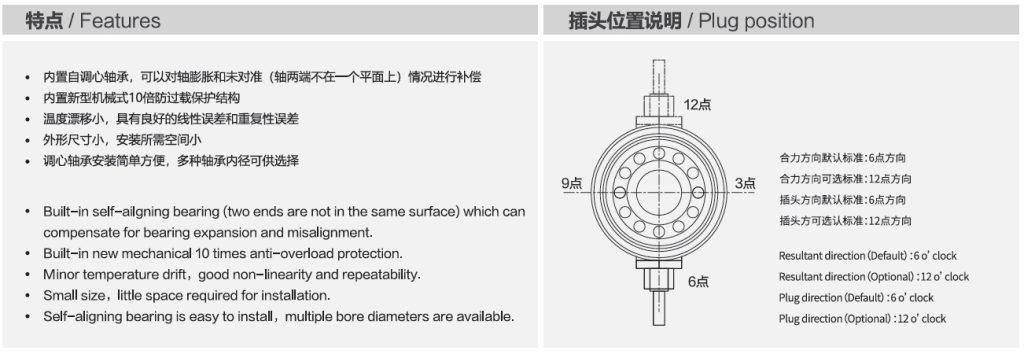

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK1505?
Applied to battery winding and coating machines, textile spinning, weaving and finishing lines, gravure printing, bag-making and labelling equipment, paper and film winding, and wire, cable and extrusion machinery.
Which indicator, transmitter or system works with the MK1505?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
