Overview

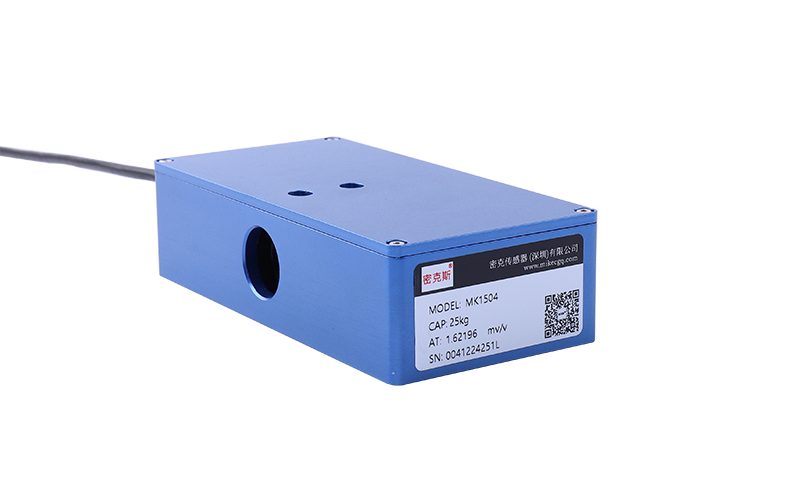

The MK1504 is a foil strain-gauge tension sensor with a lightweight aluminium-alloy body rated for -20 to +80 degC. It monitors the web tension of moving or stationary material and converts the strain into a stable, precise signal for closed-loop control.
Key Features
- High accuracy (0.2%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP65 for reliable operation in harsh environments
- Standard output 1.0 ± 10%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Applied to battery winding and coating, textile spinning and dyeing, gravure printing and bag-making, paper and film winding, and wire and cable extrusion lines.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 5 10 15 25 50kg | Output Sensitivity | 1.0 ± 10%mV/V |
| Nonlinearity | 0.2%F.S | Repeatability | 0.1%F.S |
| Zero balance | ±2%F.S | Recommended excitation voltage | 5~10VDC |
| Limit overload | 1000%F.S | Compensation temperature range | -10°C~40°C |
| Operating temperature range | -20°C~80°C | Temperature Effect on Zero | ±0.02%F.S/10°C |
| Input impedance | – | Output impedance | – |
| Insulation resistance | ≥2000MΩ 50VDC | Material | Aluminum alloy |
| Protection class | IP65 | Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) |

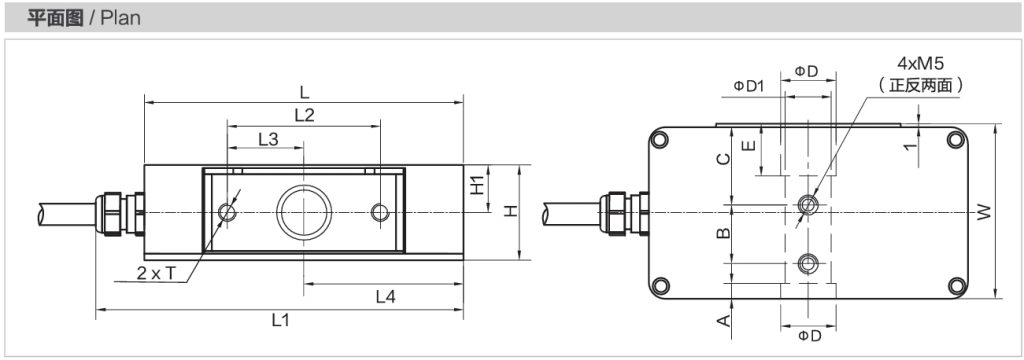

Dimension Drawing
Dimensions (mm)
| Model | Rated Capacity (kg) | L | L1 | L2 | L3 | L4 | H | H1 | A | B | C | D | D1 | E | T | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK1504-A-5 | 5 | 113 | 132 | 50.8 | 25.4 | 56.5 | 31 | 15.5 | 3.8 | 19 | 25.4 | 22.4 | 15.9 | / | 1/4-20 9 | 55.6 |
| MK1504-A-10 | 10 | |||||||||||||||
| MK1504-A-15 | 15 | |||||||||||||||
| MK1504-A-25 | 25 | |||||||||||||||
| MK1504-A-50 | 50 | |||||||||||||||
| MK1504-B-2.5 | 2.5 | 104 | 126 | 50 | 25 | 52 | 5 | 25.5 | 18 | 15 | 17 | M6 12 | 57 | |||
| MK1504-B-5 | 5 | |||||||||||||||
| MK1504-B-10 | 10 | |||||||||||||||
| MK1504-B-20 | 20 | 134 | 156 | 70 | 35 | 70 | 44 | 22 | 31.5 | 30 | 25 | M10 12 | 63 | |||
| MK1504-B-30 | 30 | |||||||||||||||
| MK1504-B-50 | 50 |
Frequently Asked Questions
What are the typical applications of the MK1504?
Applied to battery winding and coating, textile spinning and dyeing, gravure printing and bag-making, paper and film winding, and wire and cable extrusion lines.
Which indicator, transmitter or system works with the MK1504?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
