Overview

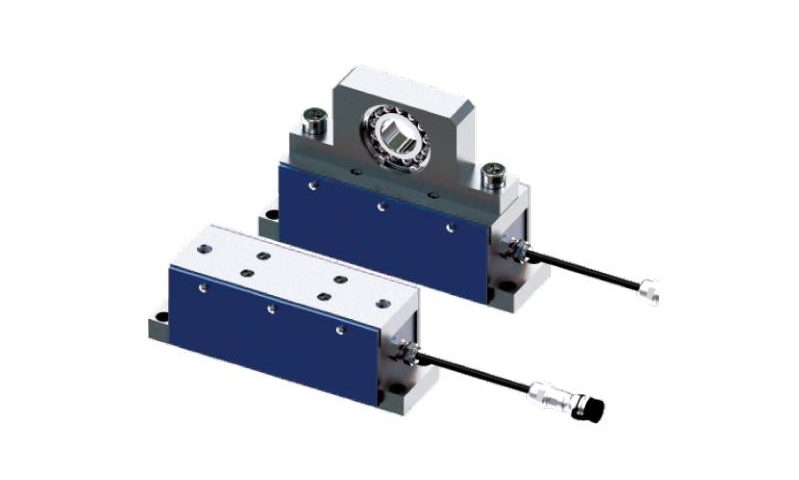

The MK1503 is a resistance strain-gauge tension sensor that watches the pull on moving or stationary web material and converts that deformation into a clean electrical signal, closing the loop on tension control. Steady, accurate feedback keeps webs from stretching, breaking or running slack, protecting both product quality and line speed.
Key Features
- High accuracy (0.3%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Sealed to IP65 for reliable operation in harsh environments
- Standard output 1.5 ± 0.2%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Runs on lithium-cell winding and coating machines, spinning, weaving and finishing textile lines, gravure presses, bag makers and labelers, paper and film winders, and wire drawing, stranding and extrusion equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 15 25 50 100 200kg | Output Sensitivity | 1.5 ± 0.2%mV/V |
| Nonlinearity | 0.3%F.S | Repeatability | 0.15%F.S |
| Zero balance | ±2%F.S | Recommended excitation voltage | 5~10V DC |
| Limit overload | 1000%F.S | Compensation temperature range | -10°C~40°C |
| Operating temperature range | -20°C~80°C | Temperature Effect on Zero | ±0.02%F.S/°C |
| Input impedance | – | Output impedance | – |
| Insulation resistance | ≥2000MΩ 100VDC | Material | Aluminum alloy |
| Protection class | IP65 | Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) |

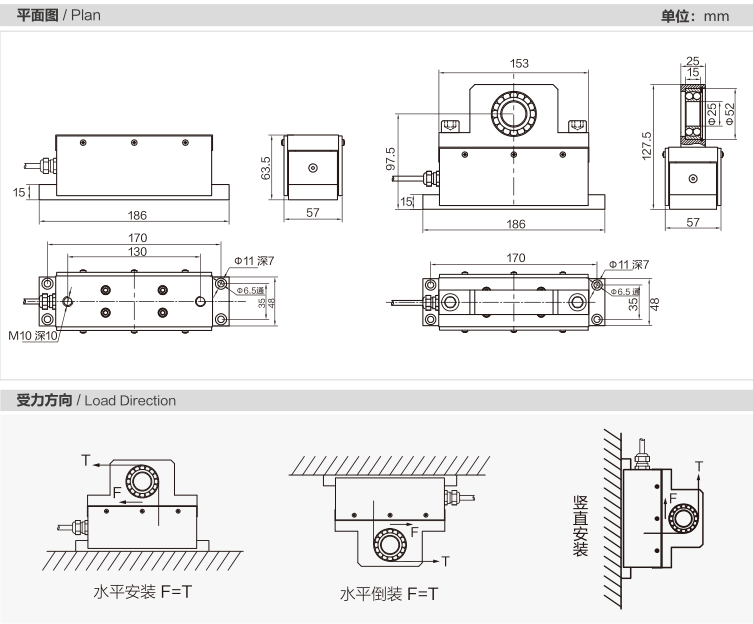

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK1503?
Runs on lithium-cell winding and coating machines, spinning, weaving and finishing textile lines, gravure presses, bag makers and labelers, paper and film winders, and wire drawing, stranding and extrusion equipment.
Which indicator, transmitter or system works with the MK1503?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
