Overview

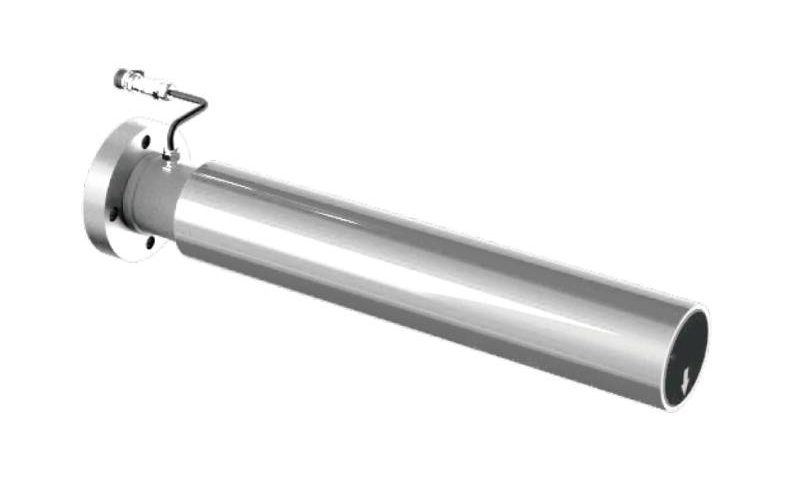

The MK1500 is a foil strain-gauge tension sensor with a lightweight aluminium-alloy body for continuous web-tension monitoring. It converts the pulling force on moving or stationary material into a stable, precise signal, supporting closed-loop tension control on automated production lines.
Key Features
- Foil strain-gauge tension sensing
- Lightweight aluminium-alloy body
- Real-time tension feedback for control
- Helps prevent breakage, deformation and slack
- High accuracy (0.5%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
Applications
Applied to battery winding and coating machines, textile and printing lines, bag-making and labelling, paper and film winding, and wire, cable and extrusion machinery.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 5 10 20 30 50kg | Output Sensitivity | 1.0 ± 10%mV/V |
| Nonlinearity | 0.5%F.S | Repeatability | 0.1%F.S |
| Zero balance | ±2%F.S | Recommended excitation voltage | 5~10V DC |
| Limit overload | 300%F.S | Compensation temperature range | -10°C~40°C |
| Operating temperature range | -20°C~80°C | Temperature Effect on Zero | ±0.02%F.S/°C |
| Input impedance | – | Output impedance | – |
| Insulation resistance | ≥2000MΩ 100VDC | Material | Aluminum alloy |
| Protection class | IP65 | Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) |

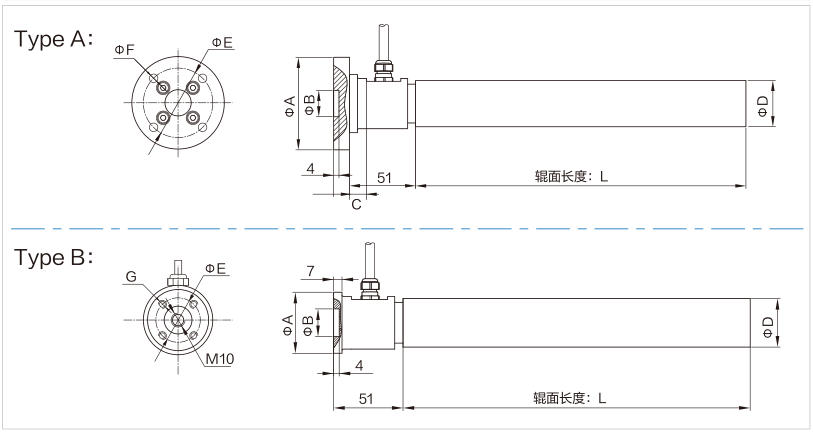

Dimension Drawing
Dimensions
| Model | Rated Capacity (kg) | A | B | C | D | E | F | H | L |
|---|---|---|---|---|---|---|---|---|---|
| MK1500-A35 | 2.5, 5, 10 | 70 | 20 | 12 | 35 | 52.5 | 6.5 | / | 100,150,200,250mm |
| MK1500-A50 | 10, 20, 30, 50 | 50 | 200,250,300,350,400mm | ||||||
| MK1500-A75 | 108 | 30 | 20 | 75 | 86 | 11 | 300,350,400,450,500,550mm | ||
| MK1500-B35 | 2.5, 5, 10 | 41 | 20 | / | 35 | 32 | / | M5 10 | 100,150,200,250mm |
| MK1500-B50 | 10, 20, 30, 50 | 50 | 200,250,300,350,400mm | ||||||
| MK1500-B75 | 64 | 30 | 75 | 45 | 300,350,400,450,500,550mm |
Frequently Asked Questions
What are the typical applications of the MK1500?
Applied to battery winding and coating machines, textile and printing lines, bag-making and labelling, paper and film winding, and wire, cable and extrusion machinery.
Which indicator, transmitter or system works with the MK1500?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
