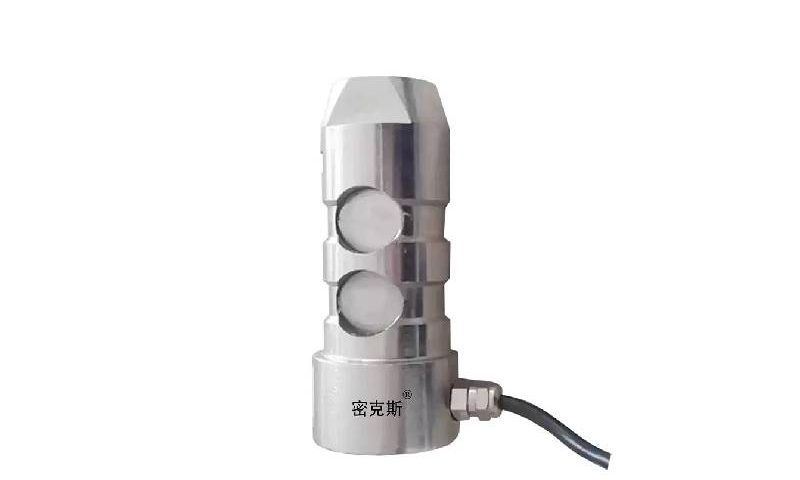

Overview
The MK1401 is a shear-pin load cell that measures force through the pivot pin itself, directly replacing the original pin with no redesign of the structure. It gives stable, dependable output with a high safe-overload factor and simple installation, which suits lifting equipment where the pin must carry the load and report it.
Key Features
- Replaces the existing load pin directly
- High safe-overload factor
- Stable, reliable output for safety monitoring
- Simple installation
- High accuracy (0.05; 0.1; 0.2; 0.3%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
Applications
Load-limiting safety devices on construction hoists, tower cranes, port machinery, overhead travelling cranes and lifts.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 10kN(1t), 20kN(2t), 30kN(3t), 40kN(4t), 50kN(5t), 100kN(10t) | Comprehensive accuracy | 0.05; 0.1; 0.2; 0.3%F.S |
| Operating temp. range | -20°C~60°C | Output sensitivity | 1.0-2.0mV/V |
| Temp. Effect on Output | ±0.05-0.3%F.S/10°C | Nonlinearity / Repeatability | ≤±0.05%F.S |
| Temp. Effect on Zero | ±0.05-0.3%F.S/10°C | Creep (30 min) | ±0.05-0.3%F.S/30min |
| Input impedance | 750±20Ω | Zero balance | ≤±1%F.S |
| Output impedance | 700±2Ω | Excitation voltage | 10VDC |
| Insulation resistance | ≥5000MΩ | Safe overload | 120%F.S |
| Material | Alloy steel | Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) |

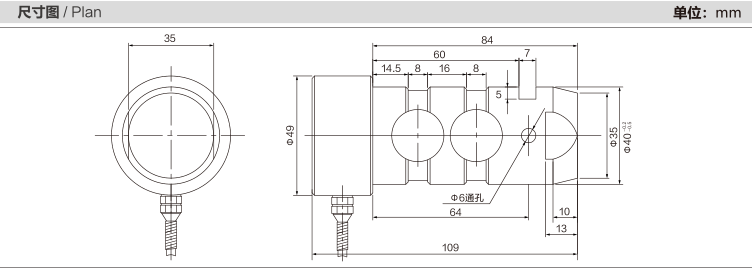

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK1401?
Load-limiting safety devices on construction hoists, tower cranes, port machinery, overhead travelling cranes and lifts.
Which indicator, transmitter or system works with the MK1401?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
