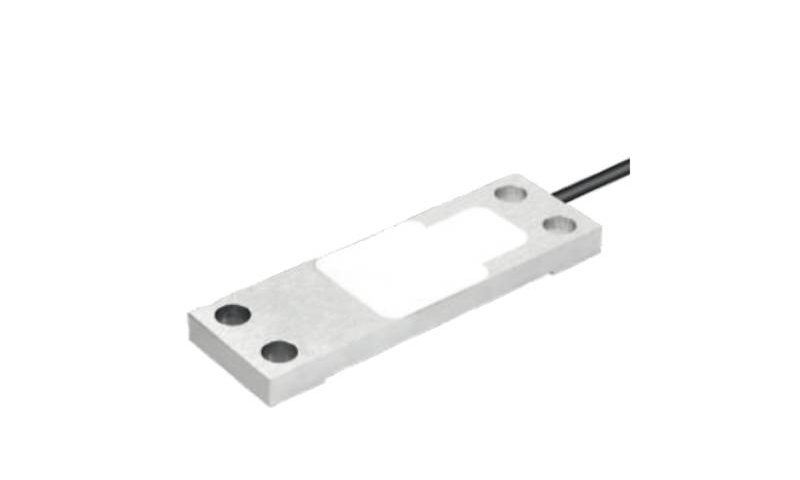

Overview
The MK1205 is a strain-gauge force sensor built on a mature measurement principle, giving stable, accurate output across industrial force-monitoring duties. Its simple mechanical design installs and removes without specialised procedures, and it can be placed where other cell types will not fit. Measurement taken directly on the machine structure makes it useful for deformation study and safety monitoring of large equipment.
Key Features
- Mature strain-gauge measurement principle
- Simple, quick installation and replacement
- Fits awkward or space-limited mounting positions
- Measures strain directly on machine structure
- High accuracy (–) for precise measurement
- Stainless steel elastic element for durability and corrosion resistance
Applications
Applied to force monitoring on large machinery under heavy service loads, and for direct strain measurement where space for a conventional force sensor is limited.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 200µε, 500µε, 1000µε | Comprehensive accuracy | – |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 1.0±15%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±1%F.S. |
| Temperature Effect on Output | ±0.5%F.S./10°C | Hysteresis | ±1%F.S. |
| Temperature Effect on Zero | ±0.5%F.S./10°C | Repeatability | ±1%F.S. |
| Input impedance | 1000±10Ω | Creep (30 min) | ±1%F.S./30min |
| Output impedance | 1005±3Ω | Zero balance | ±2%F.S. |
| Insulation resistance | ≥2000MΩ / 100VDC | Recommended excitation voltage | 5-10V DC |
| Material | Stainless steel | Safe overload | 120%F.S. |
| Protection class | IP65 | Limit overload | 150%F.S. |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

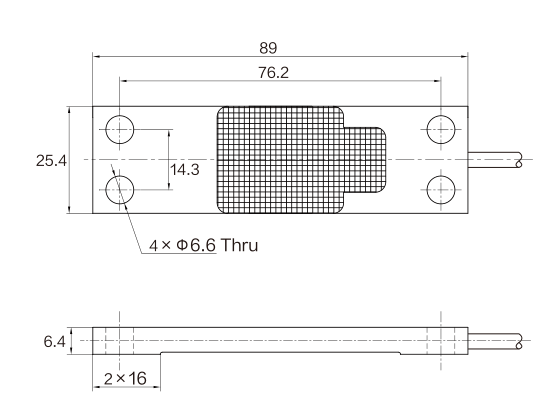

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK1205?
Applied to force monitoring on large machinery under heavy service loads, and for direct strain measurement where space for a conventional force sensor is limited.
Which indicator, transmitter or system works with the MK1205?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
