Overview

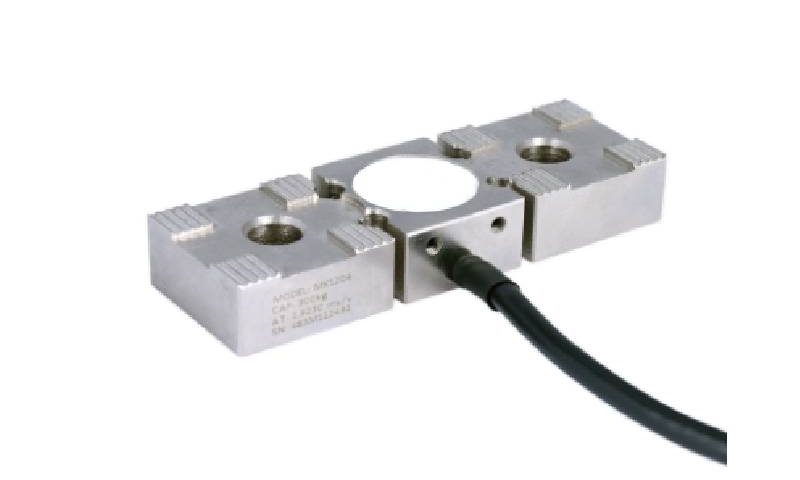

The MK1204 is a micro-strain tension load cell combining high accuracy with strong overload resistance and a sealed, moisture-proof construction. Its compact, rugged design suits reliable tension measurement in demanding installations.
Key Features
- High accuracy measurement
- Strong overload resistance
- Sealed, moisture-proof build
- High accuracy (–) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Sealed to – for reliable operation in harsh environments
Applications
Suited to tension and pull-force measurement in compact industrial and process weighing assemblies.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 300kg | Comprehensive accuracy | – |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0±0.15mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±1.0%FS |
| Temperature Effect on Output | ±0.5%FS/10°C | Hysteresis | ±1.0%FS |
| Temperature Effect on Zero | ±0.5%FS/10°C | Repeatability | ±1.0%FS |
| Input impedance | 1000±10Ω | Creep (30 min) | ±1.0%FS/30min |
| Output impedance | 1005±3Ω | Zero balance | ±1.0%FS |
| Insulation resistance | ≥2000MΩ / 100VDC | Recommended excitation voltage | 5-10V DC |
| Material | Alloy steel | Safe overload | 120%FS |
| Protection class | – | Limit overload | – |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

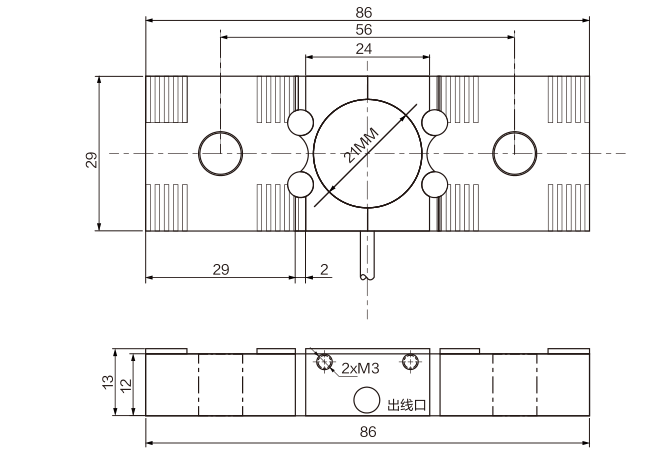

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK1204?
Suited to tension and pull-force measurement in compact industrial and process weighing assemblies.
Which indicator, transmitter or system works with the MK1204?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
