Overview

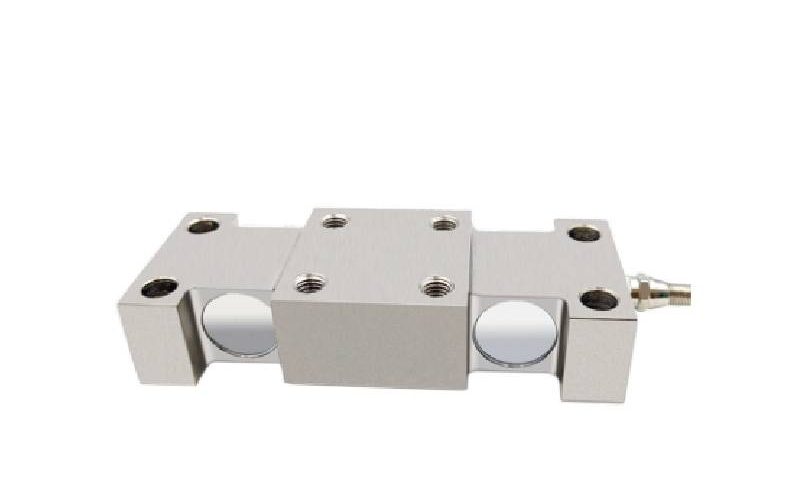

The MK1203 is a bearing-block type weighing sensor designed to measure force and load through a machine’s bearing support, enabling integrated weighing directly at the shaft mounting. Its compact, built-in form suits continuous load monitoring within rotating support structures.
Key Features
- High accuracy (0.03~0.05%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Sealed to – for reliable operation in harsh environments
- Standard output 2.0±0.01mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Applied in industrial automation, aerospace, and automotive engineering where integrated load and weight measurement is required.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 20kN(2t) 30kN(3t) 50kN(5t) 70kN(7t) 100kN(10t) 150kN(15t) 200kN(20t) 300kN(30t) 500kN(50t) 700kN(70t) | Comprehensive accuracy | 0.03~0.05%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 2.0±0.01mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | – |
| Temperature Effect on Output | <±0.02%F.S/10°C | Hysteresis | – |
| Temperature Effect on Zero | <±0.02%F.S/10°C | Repeatability | – |
| Input impedance | 380±10Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±3Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V DC |
| Material | Alloy steel | Safe overload | 120%F.S |
| Protection class | – | Limit overload | – |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

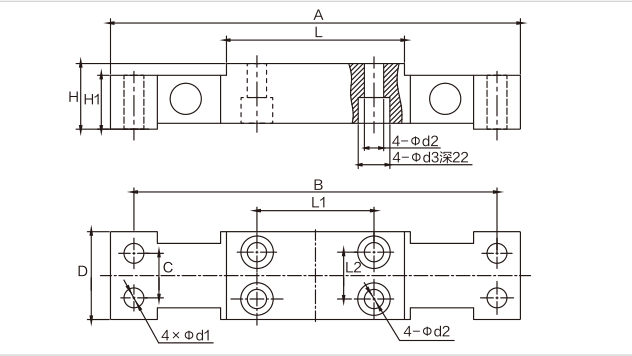

Dimension Drawing
Dimensions
| Model | Capacity(kN) | Capacity(t) | A | B | C | D | L | L1 | L2 | H | H1 | d1 | d2 | d3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK1203 | 15 | 1.5 | 350 | 310 | 38 | 75 | 152 | 100 | 40 | 56 | 46 | Φ17 | Φ16.5 | Φ27 |
| 25 | 2.5 | 410 | 355 | 50 | 100 | 182 | 130 | 60 | Φ21 | |||||
| 40~100 | 4~10 | 212 | 160 |
Frequently Asked Questions
What are the typical applications of the MK1203?
Applied in industrial automation, aerospace, and automotive engineering where integrated load and weight measurement is required.
Which indicator, transmitter or system works with the MK1203?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
