Overview

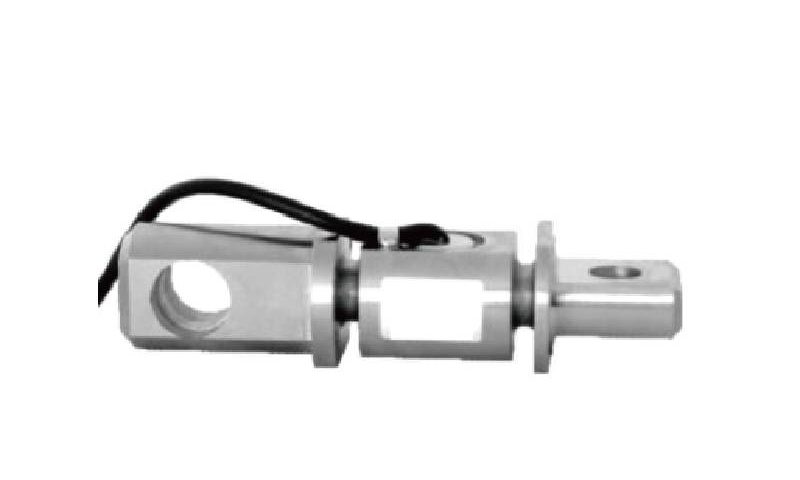

The MK1202 is a tension load cell built for precise pulling-force measurement across an exceptionally wide range. It combines high accuracy with fast, real-time response and long-term stability from quality materials and precision workmanship, while its simple, compact structure makes installation and integration into different equipment and assembly conditions straightforward.
Key Features
- Wide tension measurement range
- Fast, real-time response
- Stable, reliable long-term output
- Simple, compact integration
- High accuracy (0.02%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
Applications
Used in industrial automation, aerospace and automotive engineering applications where tensile force must be monitored reliably.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 30kN(3t), 50kN(5t), 100kN(10t), 150kN(15t), 200kN(20t) | Comprehensive accuracy | 0.02%F.S |
| Temperature compensated range | -10°C~40°C | Output sensitivity | 1.0~2.0mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | – |
| Temperature Effect on Output | <±0.02%F.S/10°C | Hysteresis | – |
| Temperature Effect on Zero | <±0.02%F.S/10°C | Repeatability | – |
| Input impedance | 380±10Ω | Creep (30 min) | ±0.02%F.S/30min |
| Output impedance | 350±3Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V DC |
| Material | Alloy steel | Safe overload | 120%F.S |
| Protection class | – | Limit overload | – |
| Cable connection | Red: power + (E+), Black: power – (E-); Green: signal + (S+), White: signal – (S-) | ||

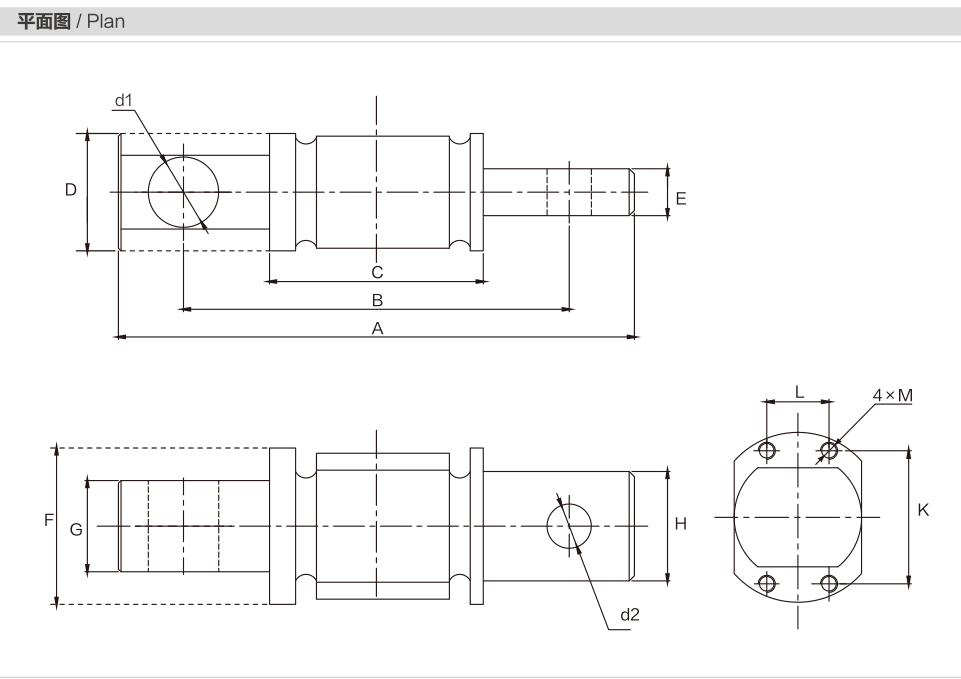

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (t) | A | B | C | D | E | F | G | H | K | L | M | d1 | d2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK1202 | 30 | 3 | 198 | 148 | 82 | Φ45 | 18 | 60 | 35 | 42 | 47 | 22 | M6 | Φ27 | Φ17 |
| 50 | 5 | 250 | 188 | 102 | Φ68 | 23 | 72 | 44 | 60 | 56 | 28 | Φ34 | Φ20 | ||
| 100 | 10 | 310 | 225 | 120 | Φ78 | 34 | 80 | 54 | 68 | 66 | Φ39 | Φ29 |
Frequently Asked Questions
What are the typical applications of the MK1202?
Used in industrial automation, aerospace and automotive engineering applications where tensile force must be monitored reliably.
Which indicator, transmitter or system works with the MK1202?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
