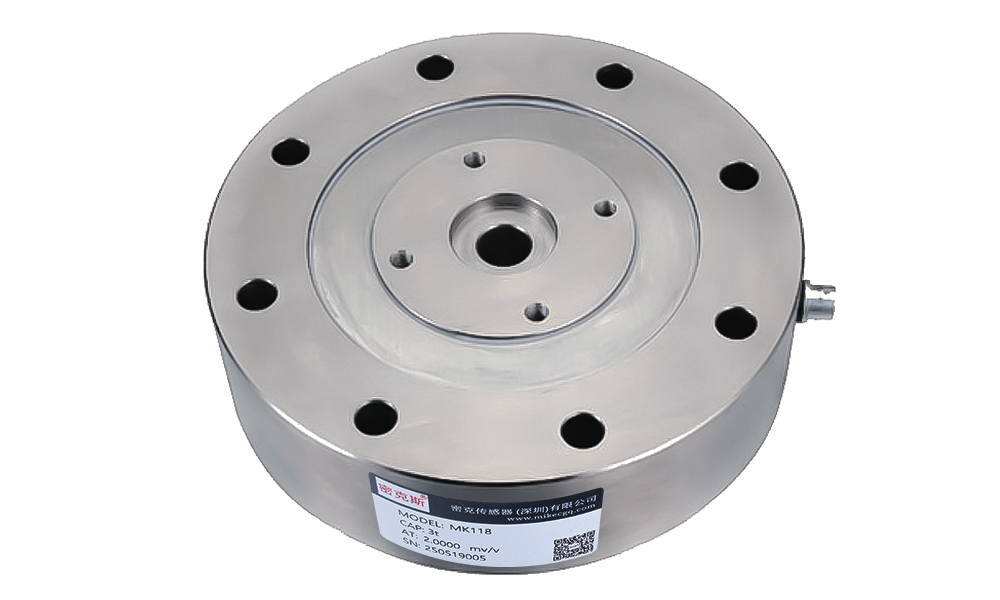

Overview
The MK118 is a single-ended spoke load cell machined from quality alloy steel with a nickel-plated, corrosion-resistant surface. Its low profile keeps scale structures shallow while accuracy and stability remain high, and installation is simple and quick on the finished platform.
Key Features
- Alloy-steel body with nickel-plated finish
- Low profile for shallow scale platforms
- High accuracy and high stability
- Simple, quick installation
- High accuracy (≤0.1%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
Applications
Material testing machines, vehicle weighbridges and truck scales, and large hopper or silo weighing.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 20kN, 30kN, 200kN, 300kN | Comprehensive accuracy | ≤0.1%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 1.5±0.01mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ≤±0.1%F.S |
| Temperature Effect on Output | <±0.05%F.S/10°C | Hysteresis | ≤±0.1%F.S |
| Temperature Effect on Zero | <±0.05%F.S/10°C | Repeatability | ≤±0.05%F.S |
| Input impedance | 380Ω / 760Ω | Creep (30min) | ±0.1%F.S/30min |
| Output impedance | 350Ω / 700Ω | Zero balance | ≤±1%F.S |
| Insulation resistance | ≥2000MΩ | Recommended excitation voltage | 6-12V(DC) |
| Material | Alloy steel | Safe overload | 120%F.S |
| Protection class | – | Limit overload | – |
| Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) | ||

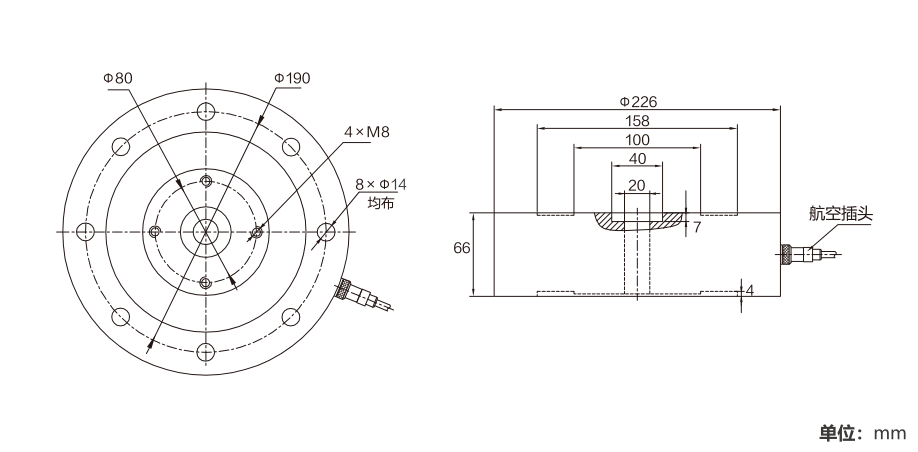

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK118?
Material testing machines, vehicle weighbridges and truck scales, and large hopper or silo weighing.
Which indicator, transmitter or system works with the MK118?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
