Overview

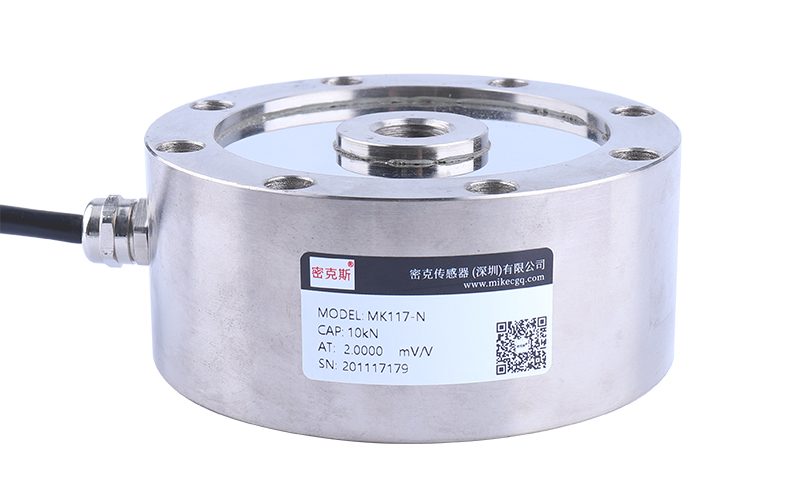

The MK117-N is an internally threaded spoke-type force sensor with a shallow, compact profile. Electroless nickel plating protects the alloy-steel body, while the spoke geometry produces high output at small deflection and compensates for eccentric loading, so the mounting thread carries the force path directly.
Key Features
- Internal thread for direct in-line mounting
- Low-profile, compact spoke design
- High output at small deflection
- Compensates eccentric loading
- High accuracy (≤0.05%F.S; 0.3%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
Applications
Used in belt and hopper scales, materials testing machines and other industrial force-measurement equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 5kN, 10kN, 20kN, 30kN, 50kN, 100kN, 200kN, 300kN, 500kN, 5000kN, 10000kN, 20000kN | Comprehensive accuracy | ≤0.05%F.S; 0.3%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 2.0mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05%F.S |
| Temperature Effect on Output | <0.05%F.S/10°C | Hysteresis | ±0.05%F.S |
| Temperature Effect on Zero | <0.05%F.S/10°C | Repeatability | ±0.05%F.S |
| Input impedance | 770±20Ω | Creep (30min) | ±0.05%F.S/30min |
| Output impedance | 701±3Ω | Zero balance | ≤±0.1%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | Alloy steel | Safe overload | 120%F.S |
| Protection class | IP66 / IP67 | Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) |

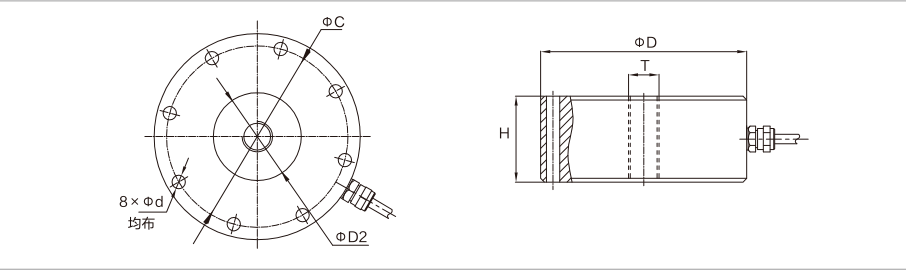

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (t) | D | C | D1 | T | H | d |
|---|---|---|---|---|---|---|---|---|
| MK117-N | 5~30 | 0.5~3 | 1080 | 96 | 32 | M16x1.5 | 460 | 8xΦ9 |
| 50~200 | 5~20 | 1380 | 116 | 46 | M24x2 | 500 | 8xΦ11 | |
| 500 | 50 | 2500 | 207 | 100 | M60x4 | 1000 | 8xΦ18 | |
| 5000 | 500 | 3850 | 342 | 160 | M100x4 | 1800 | 12xΦ20 | |
| 10000 | 1000 | 6080 | 510 | 280 | M200x6 | 1610 | 12xΦ58 | |
| 20000 | 2000 | 7500 | 600 | 350 | M100x4 | 2500 | 16xΦ52 |
Frequently Asked Questions
What are the typical applications of the MK117-N?
Used in belt and hopper scales, materials testing machines and other industrial force-measurement equipment.
Which indicator, transmitter or system works with the MK117-N?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
