Overview

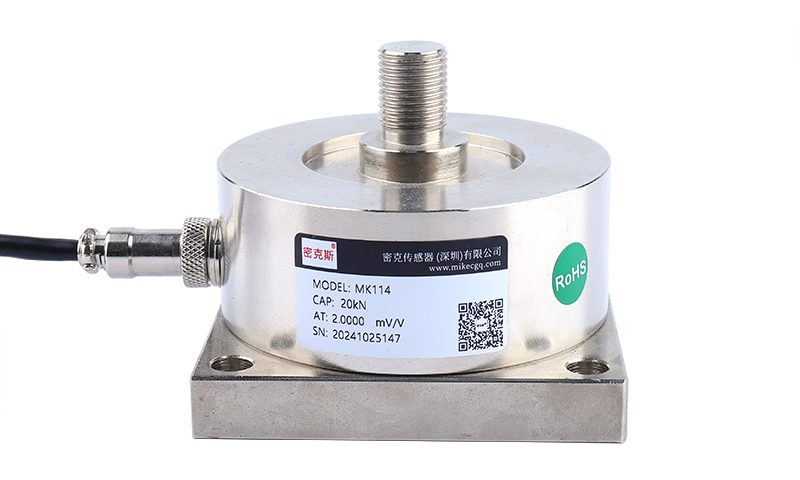

The MK114 is a low-height, square-base spoke-type force sensor with a rigid elastic body that delivers high accuracy and strong resistance to off-centre loading. The square-bottom threaded design simplifies solid mounting in compact, high-force assemblies, and its stiffness keeps output stable under heavy load.
Key Features
- Low-profile square-base spoke design
- Rigid body with strong off-centre-load resistance
- High accuracy under heavy loads
- High accuracy (≤0.05 / 0.1%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 1.5~2.0mV/V, compatible with common indicators
Applications
Used on belt, hopper, and storage scales, tank and vessel weighing, material testing machines, and labor-safety test equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 1kN, 2kN, 5kN, 10kN, 20kN, 30kN, 50kN, 100kN, 200kN, 300kN | Comprehensive accuracy | ≤0.05 / 0.1%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 1.5~2.0mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05 / 0.1%F.S |
| Temperature Effect on Output | <0.05%F.S/10°C | Hysteresis | ±0.05 / 0.1%F.S |
| Temperature Effect on Zero | <0.05%F.S/10°C | Repeatability | ±0.05%F.S |
| Input impedance | 380Ω / 760Ω | Creep (30min) | ±0.05%F.S/30min |
| Output impedance | 350Ω / 700Ω | Zero balance | ≤±1.5%F.S |
| Insulation resistance | ≥2000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | Alloy steel | Safe overload | 120%F.S |
| Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) | ||

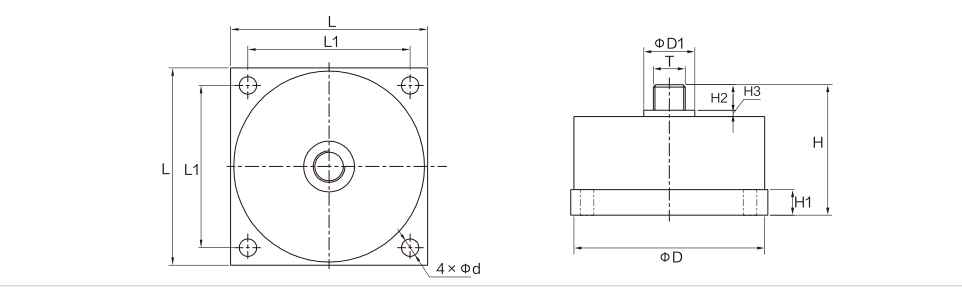

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (t) | L | L1 | D | D1 | H | H1 | H2 | H3 | T | d |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK114 | 2~5 | 0.2~0.5 | 92 | 76 | 90 | 20 | 54 | 10 | 12 | 4 | M12x1.75 | Φ9 |
| 10~50 | 1~5 | 25 | 74 | 14 | 16 | M16x1.5 | ||||||
| 70~120 | 7~12 | 124 | 102 | 120 | 32 | 82 | 16 | M20x1.5 | Φ11 | |||
| 150~200 | 15~20 | 135 | 110 | 130 | 44 | 87 | 20 | 24 | M30x2 | Φ15.5 | ||
| 250~300 | 25~30 | 150 | 122 | 142 | 50 | 100 | 25 | 27 | Φ17.5 |
Frequently Asked Questions
What are the typical applications of the MK114?
Used on belt, hopper, and storage scales, tank and vessel weighing, material testing machines, and labor-safety test equipment.
Which indicator, transmitter or system works with the MK114?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
