Overview

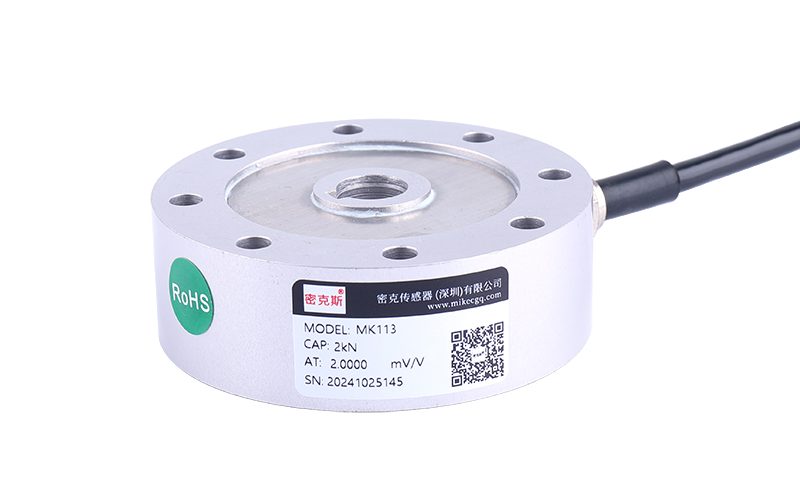

The MK113 is a spoke-type force sensor in a compact, low-cross-section package machined from aluminium alloy with electroless nickel plating. It is distinguished by high output with small deformation and built-in compensation for eccentric loading, giving dependable force readings inside tight instrument assemblies.
Key Features
- High accuracy (≤0.05%F.S) for precise measurement
- Aluminum alloy elastic element for durability and corrosion resistance
- Standard output 2.0±0.01mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Force and load measurement on material testing machines and other laboratory or production test rigs.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 500N, 1kN, 2kN, 3kN, 5kN | Comprehensive accuracy | ≤0.05%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 2.0±0.01mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05%F.S |
| Temperature Effect on Output | <0.05%F.S/10°C | Hysteresis | ±0.03%F.S |
| Temperature Effect on Zero | <0.05%F.S/10°C | Repeatability | ±0.03%F.S |
| Input impedance | 387±20Ω | Creep (30min) | ±0.03%F.S/30min |
| Output impedance | 350±10Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | Aluminum alloy | Safe overload | 120%F.S |
| Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) | ||

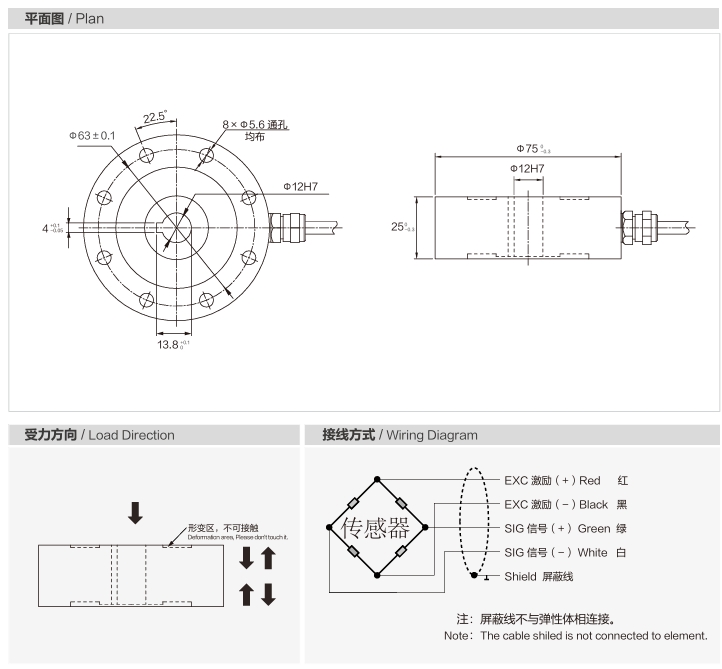

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK113?
Force and load measurement on material testing machines and other laboratory or production test rigs.
Which indicator, transmitter or system works with the MK113?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
