Overview

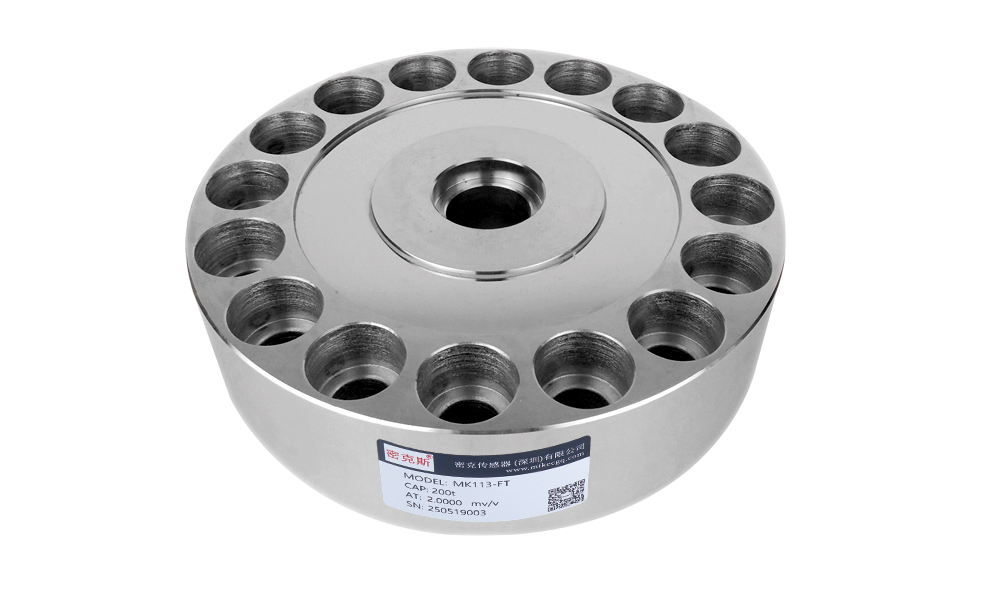

The MK113-FTT is a spoke-type force sensor built around a compression-disc elastic element, a practical solution for accurate compression-force measurement. Its robust spoke construction suits both test rigs and industrial weighing installations that demand dependable performance under repeated loading.
Key Features
- High accuracy (≤±0.1%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 2.0±5%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Applied in material testing machines, platform scales, and hopper and oil-tank weighing systems.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 2000kN 200t | Comprehensive accuracy | ≤±0.1%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 2.0±5%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05%F.S |
| Temperature Effect on Output | <0.03%F.S/10°C | Hysteresis | ±0.05%F.S |
| Temperature Effect on Zero | <0.026%F.S/10°C | Repeatability | ±0.05%F.S |
| Input impedance | 410±10Ω | Creep (30min) | ±0.05%F.S/30min |
| Output impedance | 350±3Ω | Zero balance | ≤±3.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | Alloy steel | Safe overload | 120%F.S |
| Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) | ||

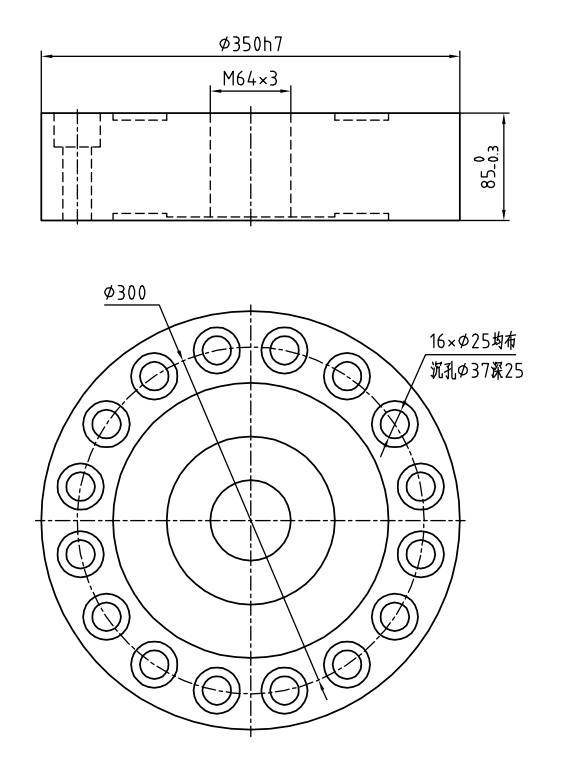

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK113-FTT?
Applied in material testing machines, platform scales, and hopper and oil-tank weighing systems.
Which indicator, transmitter or system works with the MK113-FTT?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
