Overview

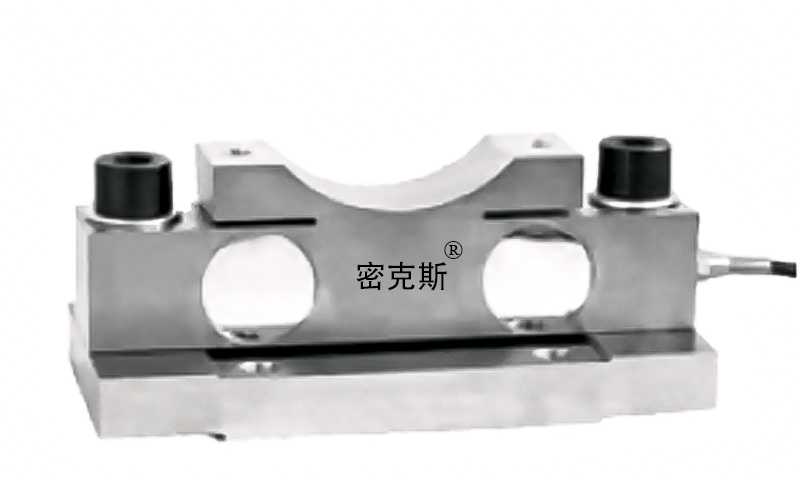

The MK1102 bridge-type load cell carries the load through a fish-back elastic element with a central connection, which gives automatic return to position and uncomplicated installation. Working from the Wheatstone-bridge principle with shear or bending beams, it delivers strong eccentric-load rejection, high linearity and steady output under heavy static service.
Key Features
- High combined accuracy and excellent long-term stability
- Compact design for straightforward integration
Applications
Used for force measurement and control on ladle and overhead-crane scales, and on heavy weighing installations exposed to side thrust and outdoor temperature swing.
| Technical Parameters | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Capacity (kN) | Capacity (t) | A | B | C | D | E | F | G | H1 | H2 | M | R depth | T |
| MK1102 | 50 | 5 | 240 | 145 | 120 | 115 | 50 | 90 | 120 | 27 | 100 | M12 | 60, 18 deep | Φ14 |
| MK1102 | 100~200 | 10~20 | 300 | 210 | 180 | 170 | 56 | 100 | 135 | 41 | 127 | M16 | 83, depth 20 | Φ18 |

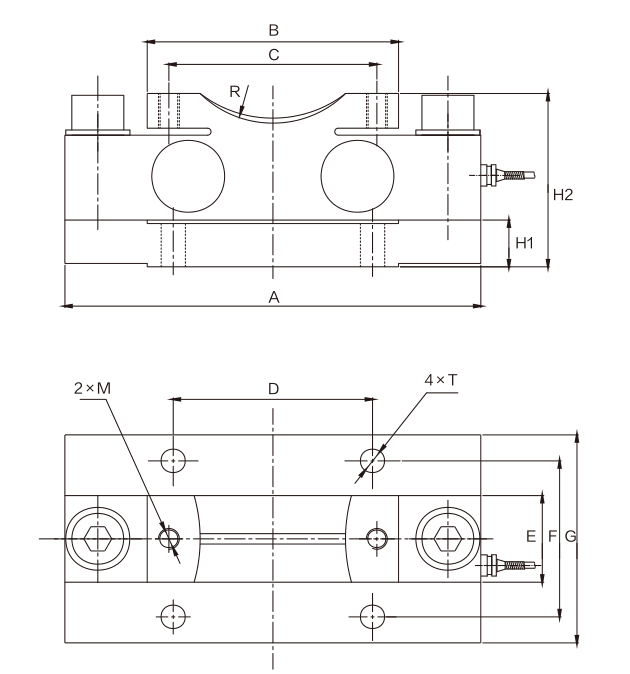

Dimension Drawing
Dimensions (mm)
| Model | Capacity (kN) | Capacity (t) | A | B | C | D | E | F | G | H1 | H2 | M | R | T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK1102 | 50 | 5 | 240 | 145 | 120 | 115 | 50 | 90 | 120 | 27 | 100 | M12 | 60 18 | Φ14 |
| 100~200 | 10~20 | 300 | 210 | 180 | 170 | 56 | 100 | 135 | 41 | 127 | M16 | 83 20 | Φ18 |
