Overview

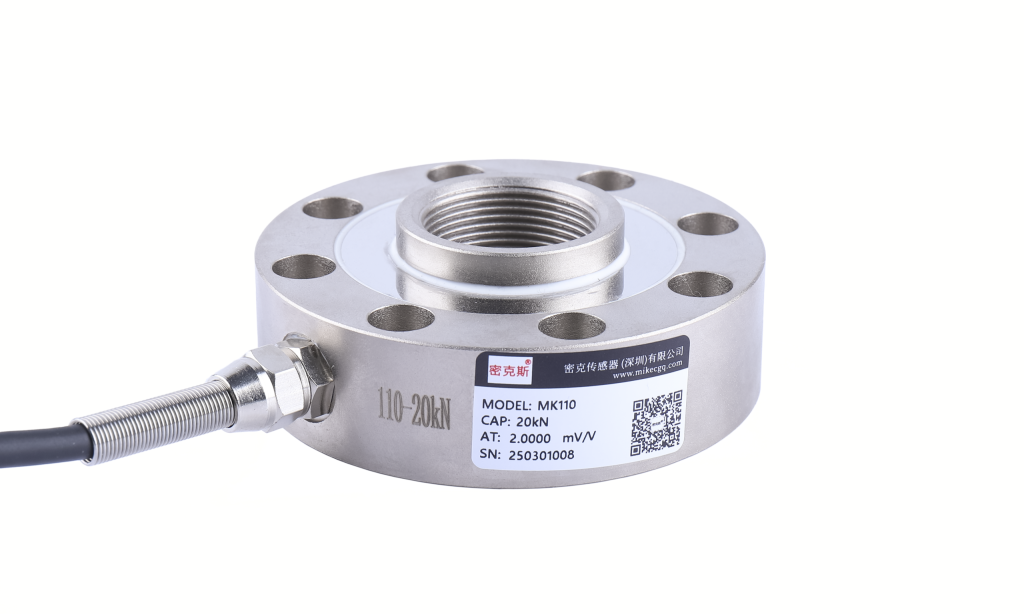

The MK110 is a spoke-type load cell for industrial force and weight measurement. Its compact spoke elastic body is easy to incorporate into machine structures, and it is specified for use on material testing machines, press-fitting equipment and warehouse weighing systems.
Key Features
- High accuracy (≤0.05%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 2.0±0.2mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Used on material testing machines and press-fitting equipment to measure applied force, and in warehouse weighing systems for load indication and stock control.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 0.5kN, 1kN, 2kN, 5kN, 10kN, 20kN, 30kN, 50kN, 100kN | Comprehensive accuracy | ≤0.05%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 2.0±0.2mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05%F.S |
| Temperature Effect on Output | <0.05%F.S/10°C | Repeatability | ±0.05%F.S |
| Temperature Effect on Zero | <0.05%F.S/10°C | Hysteresis | ±0.05%F.S |
| Input impedance | 750±10Ω | Creep (30min) | ±0.05%F.S/30min |
| Output impedance | 700±5Ω | Zero balance | ≤±1.5%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 9-12V(DC) |
| Material | Alloy steel | Safe overload | 120%F.S |
| Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) | ||

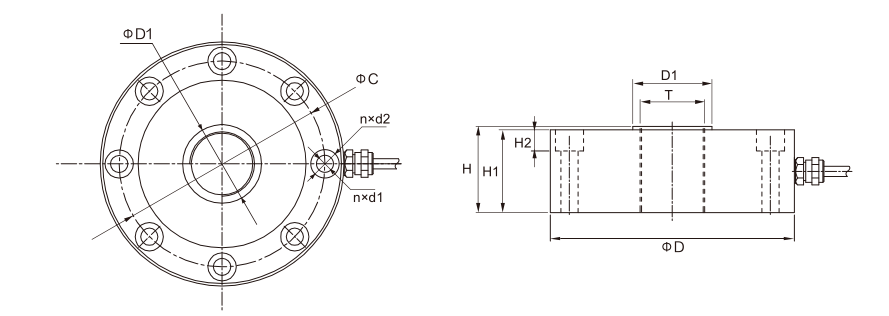

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (t) | D | C | D1 | H | H1 | H2 | T | nxd1 | nxd2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MK110 | 0.5~2 | 0.05~0.2 | 58 | 45 | 16 | 24 | 22.5 | 7 | M12x1.5 | 4xΦ10.5 | 4xΦ6.5 |
| 5~10 | 0.5~1 | 78 | 62 | 28 | M20x1.5 | 8xΦ10.5 | 8xΦ6.5 | ||||
| 20~100 | 2~10 | 85 | 70 | 38 | 30 | 24 | M30x1.5 | ||||
| MK110-T | 1~10 | 0.1~1 | 74 | 63 | 24 | 34 | 30 | M16x1.5 | 8xΦ9 | 8xΦ6 |
