Overview

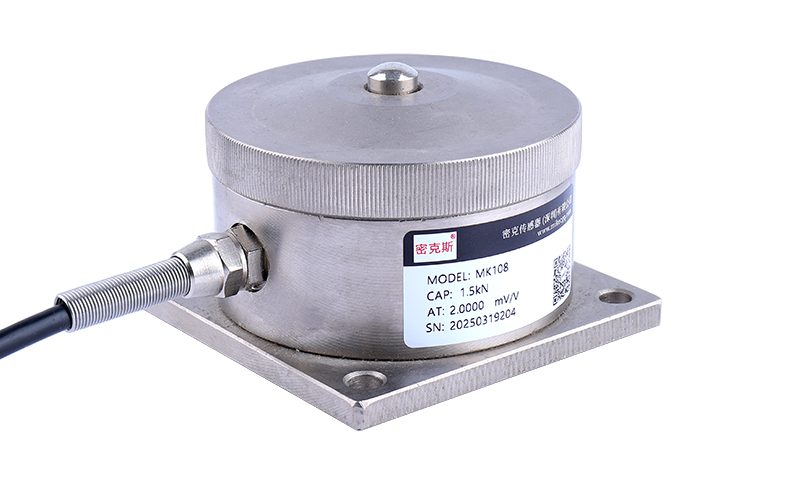

The MK108 is a proven single-point spoke load cell combining a low, stiff square-base design with high accuracy and strong off-centre-load resistance. A distinctive T-shaped overload protector adds overload capability, and an integrated amplifier can supply standard 4-20mA or 0-5V output.
Key Features
- Low, rigid square-base spoke body
- Built-in T-shaped overload protection
- Optional 4-20mA or 0-5V amplifier output
- High accuracy (≤0.05%F.S) for precise measurement
- Alloy Steel elastic element for durability and corrosion resistance
- Standard output 2.0±0.01mV/V, compatible with common indicators
Applications
Used on belt, hopper and storage scales, tank and vessel weighing, material-testing machines, and safety and labor-protection inspection equipment.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 30N, 50N, 100N, 200N, 300N, 500N, 1kN, 1.5kN, 2kN, 3kN, 5kN, 10kN, 20kN, 30kN, 50kN, 100kN, 250kN, 300kN, 500kN, 1000kN | Comprehensive accuracy | ≤0.05%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 2.0±0.01mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05%F.S |
| Temperature Effect on Output | <0.05%F.S/10°C | Repeatability | ±0.05%F.S |
| Temperature Effect on Zero | <0.05%F.S/10°C | Hysteresis | ±0.05%F.S |
| Input impedance | 385±5Ω | Creep (30min) | ±0.05%F.S/30min |
| Output impedance | 350Ω±3Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | Alloy Steel | Safe overload | 120%F.S |
| Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) | ||

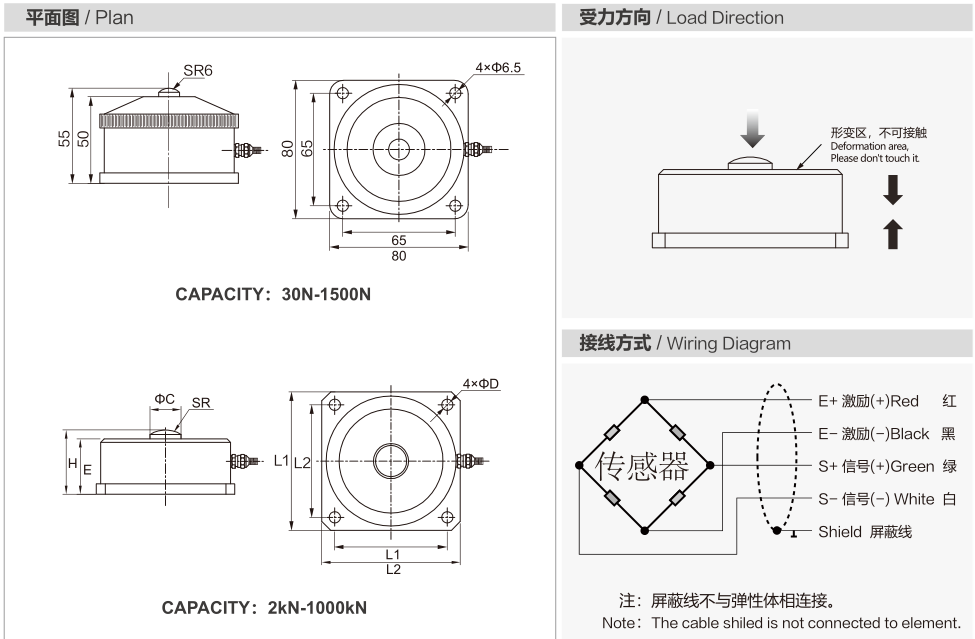

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (t) | L1 | L2 | C | D | H | E | SR |
|---|---|---|---|---|---|---|---|---|---|
| MK108 | 2~10 | 0.2~1 | 74 | 62 | 16 | 6.5 | 41 | 33 | 52 |
| 20~70 | 2~7 | 90 | 73 | 20 | 8.5 | 54 | 44 | 70 | |
| 100~250 | 10~25 | 116 | 96 | 30 | 11 | 82 | 70 | 91 | |
| 300~500 | 30~50 | 132 | 108 | 38 | 13 | 97 | 85 | 120 | |
| 1000 | 100 | 240 | 190 | 76 | 26 | 125 | 112 | 200 |
Frequently Asked Questions
What are the typical applications of the MK108?
Used on belt, hopper and storage scales, tank and vessel weighing, material-testing machines, and safety and labor-protection inspection equipment.
Which indicator, transmitter or system works with the MK108?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
