Overview

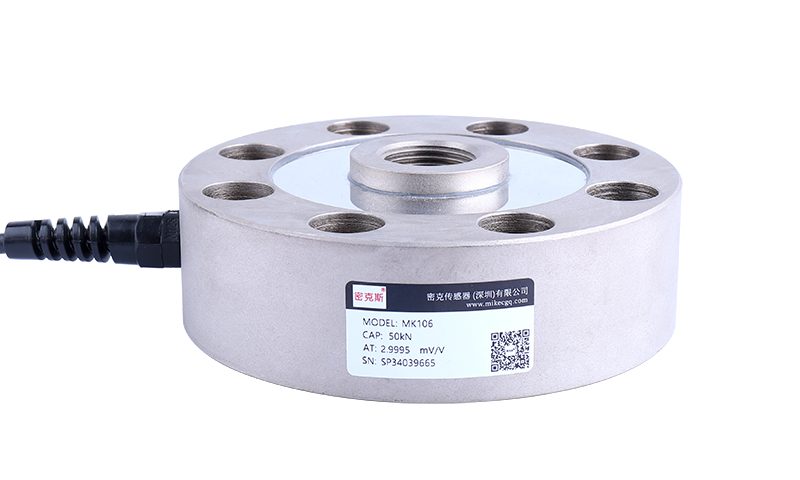

The MK106 is an internally threaded spoke-type force sensor with a low-section, compact body. Its electroless nickel-plated alloy steel, high output, small deformation and eccentric-load compensation suit precise measurement.
Key Features
- High accuracy (≤0.05%F.S) for precise measurement
- 2kN: Al-Alloy, >2kN: Alloy Steel elastic element for durability and corrosion resistance
- Standard output 3.0±0.01%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Used primarily in testing machines and other force-measurement applications.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 2kN; 5kN, 10kN, 15kN, 20kN, 25kN, 50kN, 100kN, 200kN, 300kN, 500kN, 1000kN | Comprehensive accuracy | ≤0.05%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 3.0±0.01%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05%F.S |
| Temperature Effect on Output | <0.05%F.S/10°C | Repeatability | ±0.05%F.S |
| Temperature Effect on Zero | <0.05%F.S/10°C | Hysteresis | ±0.05%F.S |
| Input impedance | 385±5Ω / 1210±20Ω (2kN) | Creep (30min) | ±0.05%F.S/30min |
| Output impedance | 305±3Ω / 1050±20Ω (2kN) | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | 2kN: Al-Alloy, >2kN: Alloy Steel | Safe overload | 120%F.S |
| Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) | ||

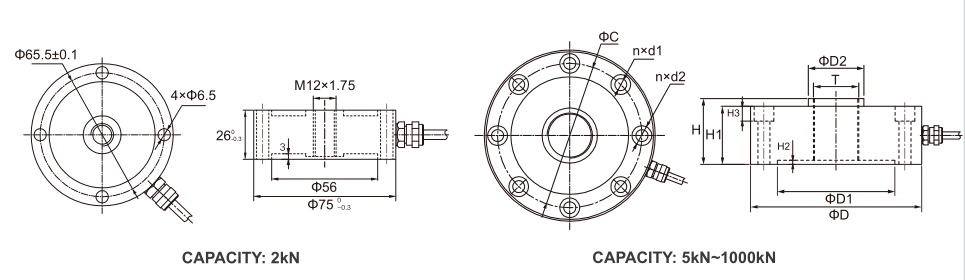

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (t) | D | C | D1 | D2 | H | H1 | H2 | H3 | T | nxd1 | nxd2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MK106 | 5~10 | 0.5~1 | 90 | 78 | 65 | 22 | 43 | 40 | 3.0 | 6 | M12x1.75 | 8xΦ6.6 | 8xΦ10.5 |
| 15~25 | 1.5~2.5 | 105 | 89 | 75 | 32 | 35 | 32 | 7.2 | M16x2 | 8xΦ7.2 | |||
| 50~100 | 5~10 | 138 | 110 | 88 | 44 | 46 | 41 | 12 | M27x2 | 8xΦ13.2 | 8xΦ19 | ||
| 200~300 | 20~30 | 165 | 130 | 96 | 55 | 50 | 20 | M36x2 | 8xΦ21 | 8xΦ31 | |||
| 500 | 50 | 234 | 194 | 150 | – | 60 | 55 | 4.7 | 22 | M52x2 | 16xΦ21 | 16xΦ32 | |
| 1000 | 100 | 258 | 218 | 174 | 57 | 3.0 | M76x2 |
Frequently Asked Questions
What are the typical applications of the MK106?
Used primarily in testing machines and other force-measurement applications.
Which indicator, transmitter or system works with the MK106?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
