Overview

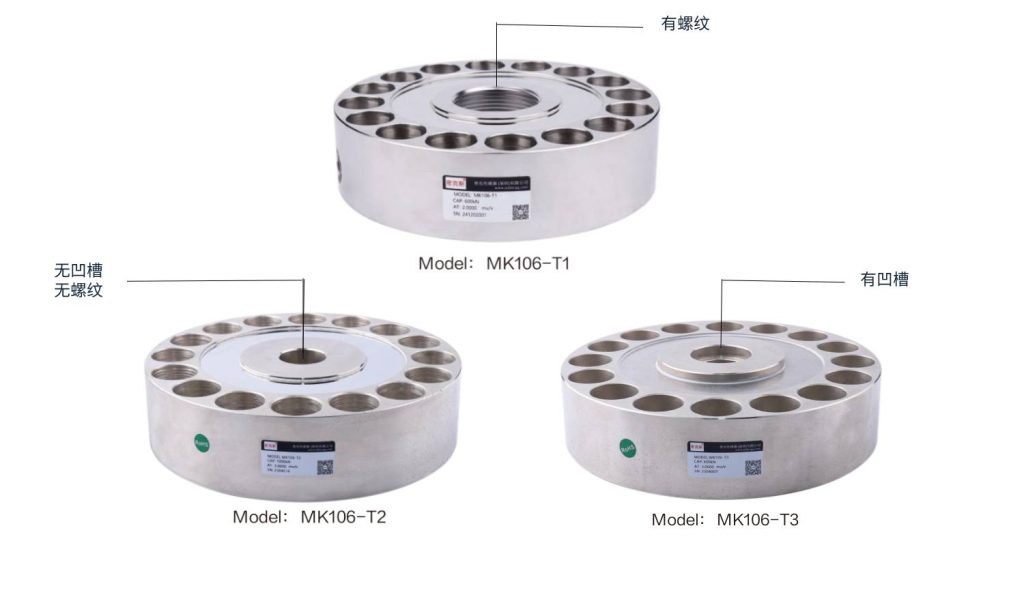

The MK106-T is an internally threaded spoke-type force sensor with a low-section, compact design. Its alloy-steel body carries an electroless nickel finish, and the sensing element combines high output with small deflection plus eccentric-load compensation, so readings stay true even when the force line is not perfectly centred.
Key Features
- Internally threaded mounting
- Eccentric-load compensation
- High output, low deflection
- Electroless nickel-plated alloy steel
- High accuracy (≤0.05%F.S 0.1%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
Applications
Mainly intended for force measurement on testing machines and comparable industrial force setups.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | MK106-T1 600kN, 1000kN MK106-T2 300kN, 1000kN MK106-T3 300kN, 1000kN | Comprehensive accuracy | ≤0.05%F.S 0.1%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 3.0mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05%F.S |
| Temperature Effect on Output | <0.05%F.S/10°C | Repeatability | ±0.05%F.S |
| Temperature Effect on Zero | <0.05%F.S/10°C | Hysteresis | ±0.05%F.S |
| Input impedance | 770±20Ω | Creep (30min) | ±0.05%F.S/30min |
| Output impedance | 701±3Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | Alloy steel | Safe overload | 120%F.S |
| Protection class | IP67 | Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) |

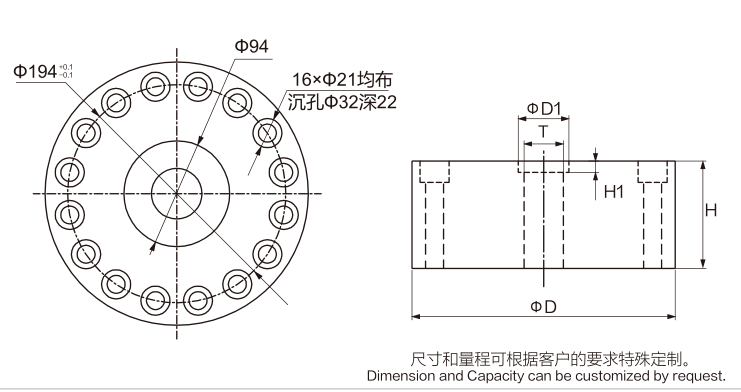

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (t) | D | D1 | H | H1 | T |
|---|---|---|---|---|---|---|---|
| MK106-T1 | 600, 1000 | 60, 100 | 234 | – | 60 | – | M64x3 |
| MK106-T2 | 35 | ||||||
| MK106-T3 | 45 | 10 |
Frequently Asked Questions
What are the typical applications of the MK106-T?
Mainly intended for force measurement on testing machines and comparable industrial force setups.
Which indicator, transmitter or system works with the MK106-T?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
