Overview

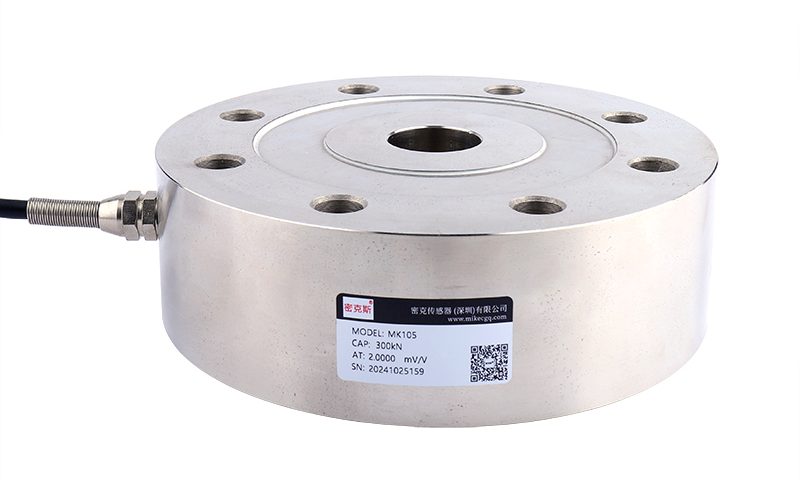

A low-profile single-ended spoke load cell, the MK105 is machined from quality alloy steel and nickel plated against corrosion. It is quick and simple to fit while holding high accuracy and stable output, allowing shallow weighing structures to measure heavy compression loads reliably over long periods.
Key Features
- High accuracy (≤0.05 / 0.1%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 1.5-2.5mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Testing machines, truck scales and weighbridges, and large hopper weighing in industrial installations.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | 0.5kN, 1kN, 2kN, 5kN, 10kN, 20kN, 50kN, 100kN, 200kN, 300kN, 500kN, 600kN, 1000kN, 2000kN | Comprehensive accuracy | ≤0.05 / 0.1%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 1.5-2.5mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05 / 0.1%F.S |
| Temperature Effect on Output | <0.05 / 0.1%F.S/10°C | Repeatability | ±0.05 / 0.1%F.S |
| Temperature Effect on Zero | <0.05 / 0.1%F.S/10°C | Hysteresis | ±0.05 / 0.1%F.S |
| Input impedance | 380Ω / 760Ω | Creep (30min) | ±0.05 / 0.1%F.S/30min |
| Output impedance | 350Ω / 700Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | Alloy steel | Safe overload | 120%F.S |
| Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) | ||

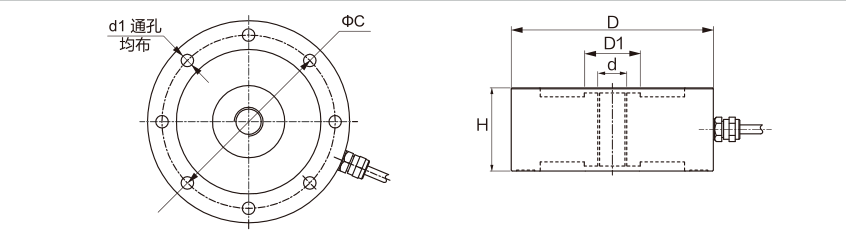

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (t) | d | D | D1 | C | H | d1 |
|---|---|---|---|---|---|---|---|---|
| MK105 | 0.5~5 | 0.05~0.5 | 12 | 90 | 22 | 75 | 25 | 4-Φ7 |
| 10 | 1 | 100 | 26 | 80 | 30 | 4-Φ11 | ||
| 20 | 2 | 24 | 125 | 42 | 105 | 42 | 8-Φ11 | |
| 50~100 | 5~10 | 150 | 48 | 122 | 45 | |||
| 200~300 | 20~30 | 30 | 180 | 70 | 142 | 53 | 8-Φ13.5 | |
| 500~600 | 50~60 | 36 | 235 | 90 | 190 | 60 | 8-Φ17.5 | |
| 1000 | 100 | 297 | 105 | 236 | 70 | 8-Φ22 | ||
| 2000 | 200 | 350 | 130 | 300 | 90 | 8-Φ25 |
Frequently Asked Questions
What are the typical applications of the MK105?
Testing machines, truck scales and weighbridges, and large hopper weighing in industrial installations.
Which indicator, transmitter or system works with the MK105?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
