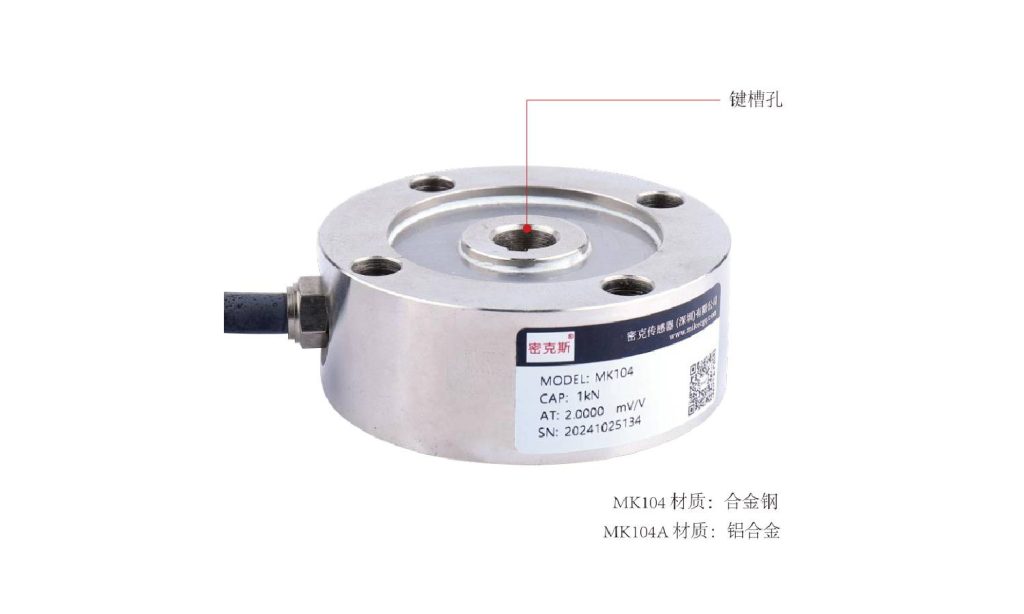

Overview
The MK104 is a compact, small spoke-type force sensor combining high accuracy with strong resistance to off-centre loading. Its miniature elastic body fits tight force-measurement assemblies while keeping a stable, repeatable output, suiting confined mounting where accuracy must hold under side loads.
Key Features
- Compact, small spoke-type body
- High accuracy, strong off-centre-load resistance
- Stable output in tight assemblies
- High accuracy (≤0.05%F.S) for precise measurement
- MK104: Alloy steel, MK104A: Al-Alloy elastic element for durability and corrosion resistance
- Standard output 2.0±0.25mV/V, compatible with common indicators
Applications
Applied to belt and hopper scales and tensile testing machines for accurate force-value measurement.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | MK104: 1kN, 2kN, 5kN, 10kN, 20kNMK104A: 100N, 200N, 350N, 500N, 1kN, 2kN, 5kN, 10kN, 20kN | Comprehensive accuracy | ≤0.05%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 2.0±0.25mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05%F.S |
| Temperature Effect on Output | <0.03%F.S/10°C | Repeatability | ±0.05%F.S |
| Temperature Effect on Zero | <0.03%F.S/10°C | Hysteresis | ±0.05%F.S |
| Input impedance | 387±20Ω | Creep (30min) | ±0.05%F.S/30min |
| Output impedance | 350±5Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | MK104: Alloy steel, MK104A: Al-Alloy | Safe overload | 120%F.S |
| Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) | ||

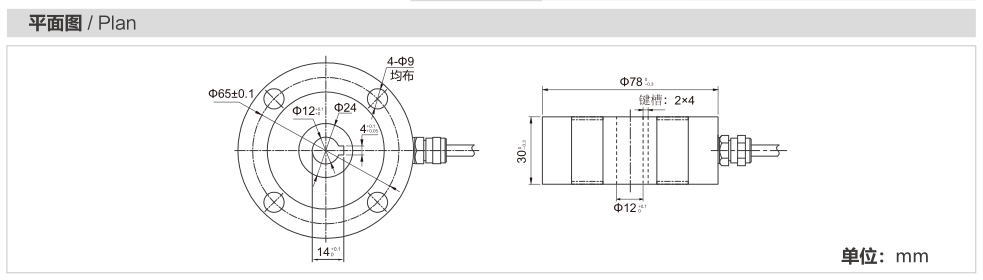

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK104?
Applied to belt and hopper scales and tensile testing machines for accurate force-value measurement.
Which indicator, transmitter or system works with the MK104?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
