Overview

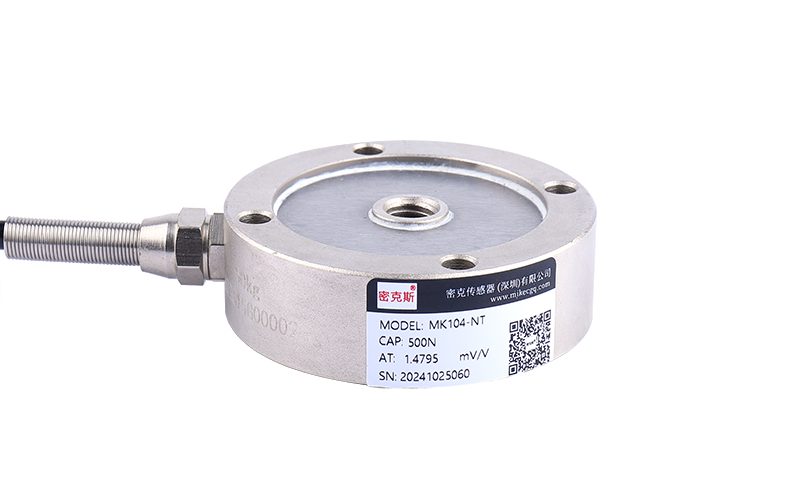

The MK104-NT is a small spoke-type force sensor that retains the accuracy and eccentric-load tolerance of the spoke principle inside a compact housing. Its modest footprint suits designers who need dependable force measurement where the mechanical envelope rules out a larger spoke cell, without giving up accuracy.
Key Features
- High accuracy (≤ 0.05%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 2.0±0.25%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Fitted to belt scales, hopper weighing and tensile testing machines for force measurement in confined assemblies.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | MK104-N 500N 1kN 2kN 5kN 10kN MK104-NT 500N | Comprehensive accuracy | ≤ 0.05%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 2.0±0.25%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05%F.S |
| Temperature Effect on Output | < 0.05%F.S/10°C | Repeatability | ±0.05%F.S |
| Temperature Effect on Zero | < 0.05%F.S/10°C | Hysteresis | ±0.05%F.S |
| Input impedance | 387±20Ω / 770±20Ω | Creep (30 min) | ±0.05%F.S/30min |
| Output impedance | 350±5Ω / 700±5Ω | Zero balance | ≤ ±1.0%F.S |
| Insulation resistance | ≥ 5000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | Alloy steel | Safe overload | 120%F.S |
| Cable connection | Red: power+(E+), Black: power-(E-); Green: signal+(S+), White: signal-(S-) | ||

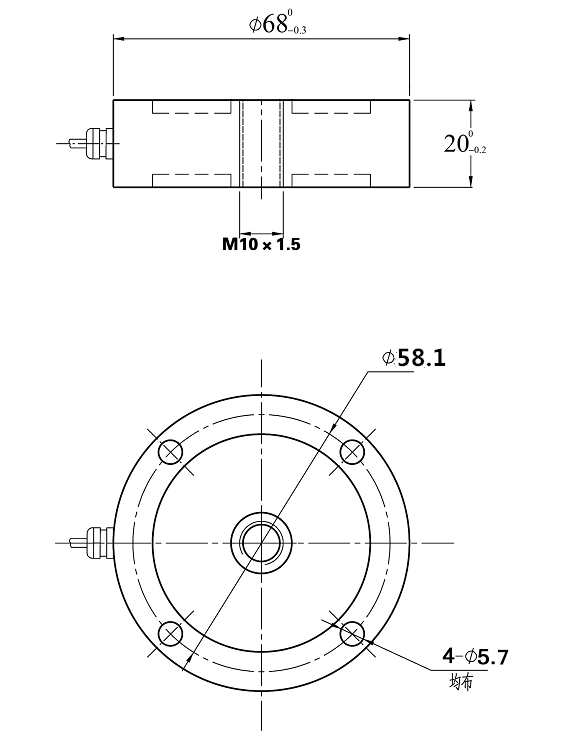

Dimension Drawing
Frequently Asked Questions
What are the typical applications of the MK104-NT?
Fitted to belt scales, hopper weighing and tensile testing machines for force measurement in confined assemblies.
Which indicator, transmitter or system works with the MK104-NT?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
