Overview
The MK104-N is a compact small spoke load cell combining high accuracy with strong resistance to off-centre loads. Its miniature, easy-to-install form suits reliable force measurement across weighing and testing equipment.
Key Features
- High accuracy (≤0.05%F.S) for precise measurement
- Alloy steel elastic element for durability and corrosion resistance
- Standard output 2.0±0.25%mV/V, compatible with common indicators
- Compact design for straightforward integration
Applications
Suited to belt scales, hopper scales, tensile-testing machines and other devices needing compact force measurement.
| Technical Parameters | |||
|---|---|---|---|
| Rated capacity | MK104-N 500N, 1kN, 2kN, 5kN, 10kN MK104-NT 500N | Comprehensive accuracy | ≤0.05%F.S |
| Compensated temperature range | -10°C~40°C | Output sensitivity | 2.0±0.25%mV/V |
| Operating temperature range | -20°C~60°C | Nonlinearity | ±0.05%F.S |
| Temperature Effect on Output | <0.05%F.S/10°C | Repeatability | ±0.05%F.S |
| Temperature Effect on Zero | <0.05%F.S/10°C | Hysteresis | ±0.05%F.S |
| Input impedance | 387±20Ω / 770±20Ω | Creep (30min) | ±0.05%F.S/30min |
| Output impedance | 350±5Ω / 700±5Ω | Zero balance | ≤±1.0%F.S |
| Insulation resistance | ≥5000MΩ | Recommended excitation voltage | 10V(DC) |
| Material | Alloy steel | Safe overload | 120%F.S |
| Cable connection | Red: Power + (E+), Black: Power – (E-); Green: Signal + (S+), White: Signal – (S-) | ||

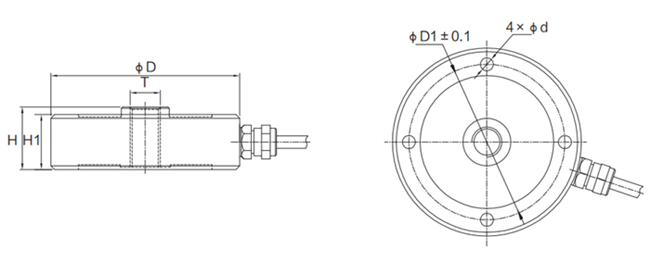

Dimension Drawing
Dimensions
| Model | Capacity (kN) | Capacity (t) | D | C | H | T | H1 | d |
|---|---|---|---|---|---|---|---|---|
| MK104-N | 500N~10kN | 50kg~1t | 75 | 62 | 25 | M12x1.75 | 22 | 5.2 |
| MK104-NT | 500N | 50kg | 68 | 58.1 | 20 | M10x1.5 | 20 | 5.7 |
Frequently Asked Questions
What are the typical applications of the MK104-N?
Suited to belt scales, hopper scales, tensile-testing machines and other devices needing compact force measurement.
Which indicator, transmitter or system works with the MK104-N?
It outputs a standard mV/V strain signal, so it connects to most weighing indicators and transmitters — including those in our Sensor Accessories range.
